ROGER R90/F2ES Photocell Sensor UAE

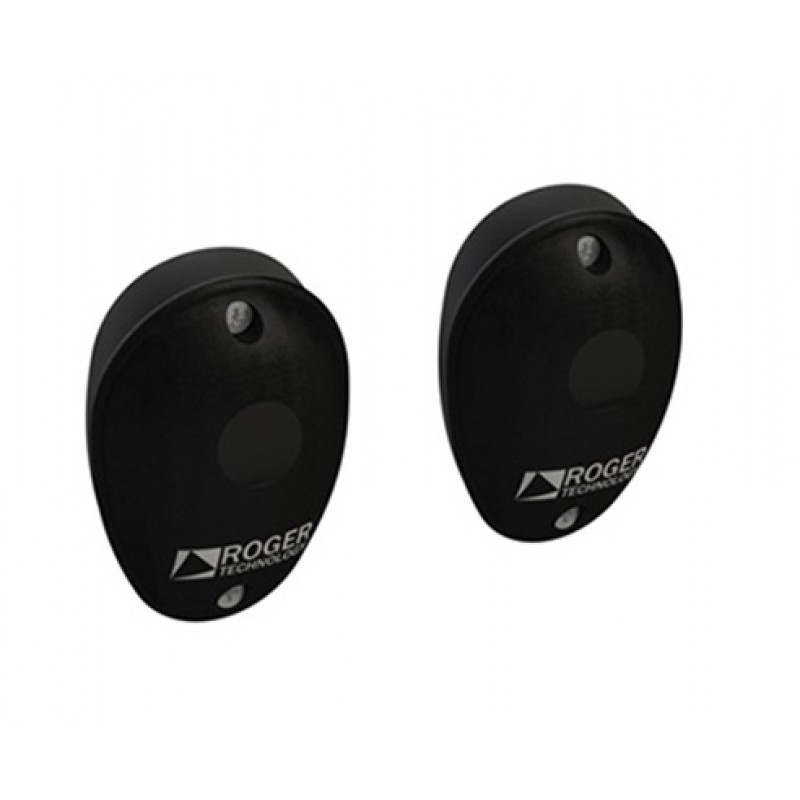

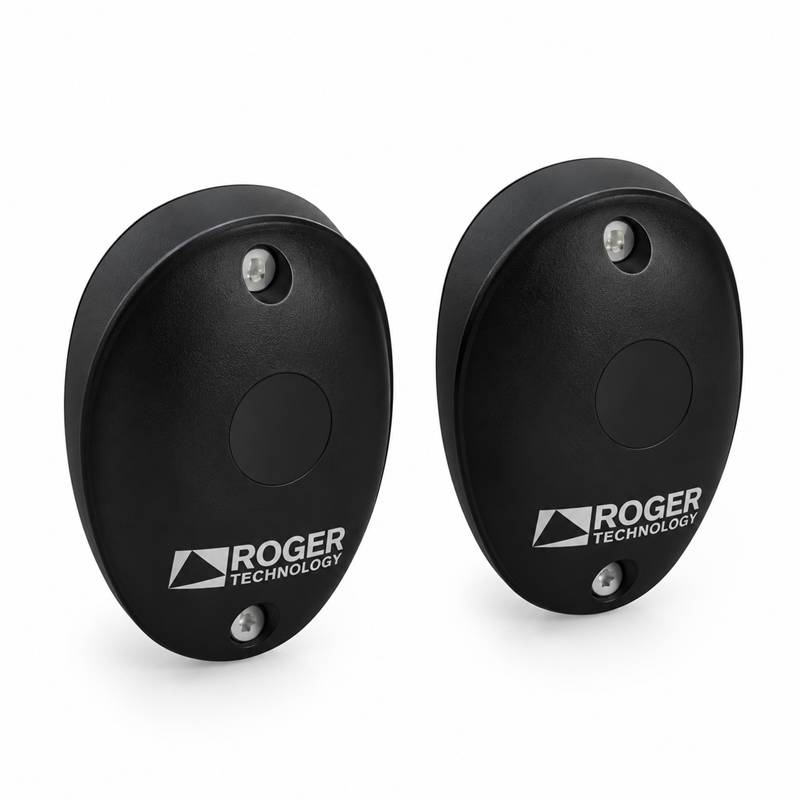

The ROGER R90/F2ES Photocell Sensors are synchronized external infrared safety devices designed for automatic sliding gates, swing gates and compatible access automation systems. Supplied as a transmitter and receiver pair, the R90/F2ES creates an infrared safety beam across the gate entrance to detect vehicles, pedestrians and other obstacles.

The ROGER R90/F2ES operates from 12/24V AC 50Hz or 12/24V DC and provides an open-field detection range of approximately 10 to 15 metres. With IP55 protection and an operating temperature from -20°C to +55°C, it is designed for reliable external gate automation applications.

The photocells also support synchronization of up to 2 pairs, helping reduce interference when more than one infrared safety beam is installed around the same automatic gate system.

Key Features

• Original ROGER Technology photocell sensors
• Model R90/F2ES
• Pair of synchronized external photocells
• Infrared obstacle detection
• 10–15 metre operating range in open field
• 12/24V AC 50Hz power supply
• 12/24V DC power supply
• TX absorption 19mA
• RX absorption 20mA
• Supports synchronization of up to 2 photocell pairs
• Relay output
• Maximum relay current 0.5A
• Maximum relay voltage 30V
• IP55 protection rating
• Operating temperature -20°C to +55°C
• External installation
• Compact 62 × 88 × 27 mm housing
• Suitable for sliding and swing gate automation

Technical Specifications

ROGER R90/F2ES Automatic Gate Safety Photocells

The ROGER R90/F2ES uses an infrared transmitter and receiver positioned opposite each other across the automatic gate entrance.

During normal operation, the transmitter sends an infrared beam to the receiver. When a person, vehicle or other object interrupts the beam, the receiver changes its relay state and communicates the safety condition to the connected gate control system.

10–15 Metre Detection Range

The R90/F2ES provides a maximum open-field operating distance of approximately 10 to 15 metres.

Actual range can vary according to photocell alignment, installation position, wiring and environmental conditions.

12/24V AC/DC Power Supply

The ROGER R90/F2ES supports both 12/24V AC 50Hz and 12/24V DC power supplies.

This allows the photocells to be connected to compatible ROGER control boards and other suitable automation controllers providing the required accessory supply.

Synchronized Photocell Operation

The R90/F2ES supports synchronization of up to 2 photocell pairs.

Synchronization helps prevent infrared interference when multiple photocell pairs are installed around the same automatic gate entrance.

Relay Output

The R90/F2ES receiver provides a relay output for connection to a compatible automatic gate safety input.

The relay is rated for a maximum current of approximately 0.5A and maximum voltage of 30V.

IP55 Outdoor Protection

The ROGER R90/F2ES has an IP55 protection rating, providing strong protection for correctly installed external gate automation applications.

Proper mounting, cable entry and sealing should still be maintained during installation to ensure reliable long-term outdoor performance.

Operating Temperature -20°C to +55°C

The R90/F2ES is designed for operation from -20°C to +55°C, allowing reliable use across a wide range of environmental conditions.

Sliding Gate Safety Sensor

ROGER R90/F2ES photocells can be installed across automatic sliding gate entrances to detect vehicles and pedestrians during gate operation.

When the safety beam is interrupted, the connected control board can stop, prevent or reverse closing according to the programmed safety logic.

Swing Gate Safety Sensor

The R90/F2ES can also be used with compatible automatic swing gate systems.

For swing gates, photocell placement should be selected carefully because the gate leaves move through a wider area than a sliding gate.

Compatible with ROGER H30 Sliding Gate Motors

The ROGER R90/F2ES can be used as a safety photocell with compatible ROGER sliding gate automation systems and control boards.

It is commonly supplied with suitable ROGER H30-series sliding gate automation kits.

Compatible with ROGER R20 Swing Gate Motors

The R90/F2ES is also suitable for compatible ROGER R20 swing gate automation installations.

For example, it can form part of an R20/510 double swing gate system when connected to the appropriate ROGER control panel.

Photocell Alignment

Correct alignment between the R90/F2ES transmitter and receiver is essential for dependable safety operation.

Both photocells should be mounted securely at a suitable height and positioned directly opposite each other.

Automatic Gate Obstacle Detection

The R90/F2ES adds an important safety layer to an automatic gate by monitoring the protected entrance area.

The exact gate response after beam interruption depends on the control-board wiring and programmed safety configuration.

External Surface Installation

The ROGER R90/F2ES is designed for external installation and has compact dimensions of approximately 62 × 88 × 27 mm.

Its compact housing allows neat installation on suitable gate posts, columns and walls.

Residential & Commercial Applications

• Automatic sliding gates
• Automatic swing gates
• Villa entrance gates
• Residential buildings
• Apartment communities
• Commercial properties
• Office entrances
• Private parking entrances
• Warehouse gates
• Automatic access-controlled gates

Professional ROGER R90/F2ES Installation

Professional installation is recommended for the ROGER R90/F2ES photocells. Correct voltage, wiring, relay connection, positioning and alignment are important for reliable safety operation.

After installation, the photocell beam should be interrupted during multiple gate cycles to confirm that the connected automatic gate controller responds correctly.

ROGER R90/F2ES Photocell Sensor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies ROGER R90/F2ES photocell sensors in UAE for compatible sliding gates, swing gates and automatic access systems.

Supply, professional installation, replacement, alignment and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
