ROGER R20/510 Swing Gate Motor UAE

The ROGER R20/510 Swing Gate Motor is a powerful Italian electromechanical gate operator designed for automatic swing gate leaves up to 3.5 metres. Powered by a 230V AC motor, the R20/510 provides reliable and smooth gate automation for villas, residential properties and suitable commercial entrances.

The ROGER R20/510 features an irreversible electromechanical drive with 2500N thrust, 200W motor power and a 520 mm stroke. Its long-stroke design makes it particularly suitable for larger swing gate leaves requiring strong and dependable automatic operation.

With approximately 27-second opening time, opening microswitch, IP44 protection and a 40% duty cycle, the R20/510 provides a robust automatic swing gate solution for residential and commercial properties across the UAE.

Key Features

• Original ROGER Technology R20/510
• Suitable for swing gate leaves up to 3.5 metres
• 230V AC electromechanical actuator
• Irreversible drive system
• 200W motor power
• 2500N thrust
• 520 mm actuator stroke
• Approximately 27-second opening time
• 1.66 cm/s manoeuvre speed
• 40% frequency of use
• Opening microswitch
• Optional closing microswitch
• 150°C motor thermal protection
• 15 µF incorporated capacitor
• IP44 protection rating
• Operating temperature from -20°C to +55°C
• Complete with fixing plates
• Suitable for single and double swing gates

Technical Specifications

ROGER R20/510 Swing Gate Opener

The ROGER R20/510 is designed for automatic swing gate leaves measuring up to 3.5 metres. Its long actuator body and 520 mm stroke provide the movement required for compatible large swing gates.

The R20/510 is suitable for villas, houses, residential compounds and suitable commercial entrances requiring reliable 230V automatic gate operation.

230V AC Swing Gate Motor

The ROGER R20/510 operates from a 230V AC 50Hz power supply and uses a 230V AC electromechanical motor rated at approximately 200W.

Its conventional AC motor design provides strong and dependable operation for compatible residential and commercial swing gates.

2500N Maximum Thrust

The R20/510 produces up to 2500N thrust, providing powerful linear movement for compatible swing gate leaves.

Correct motor selection should consider gate length, weight, hinge condition, wind load, opening angle and installation geometry.

520 mm Long Stroke

One of the main features of the ROGER R20/510 is its 520 mm actuator stroke.

The long stroke makes the R20/510 suitable for larger swing gate installations where the mounting geometry requires increased actuator travel.

27 Second Opening Time

The ROGER R20/510 has a nominal opening time of approximately 27 seconds, with a manoeuvre speed of approximately 1.66 cm/s.

Actual gate opening time can vary depending on mounting geometry, opening angle and installation conditions.

Irreversible Swing Gate Operator

The R20/510 uses an irreversible electromechanical reduction system designed for dependable automatic swing gate operation.

The requirement for additional gate locking should be evaluated according to the gate size, construction and security requirements.

40% Frequency of Use

The ROGER R20/510 has a specified 40% frequency of use, making it suitable for residential properties and appropriate commercial gate applications.

For very intensive or continuously operated entrances, a higher-duty automation system should be considered.

Opening Limit Microswitch

The ROGER R20/510 incorporates a microswitch limit switch for the opening direction.

A closing limit microswitch is available as an optional configuration. Correct limit adjustment helps establish accurate gate travel positions.

Motor Thermal Protection

The motor incorporates 150°C thermal protection to help protect the actuator from excessive operating temperature.

Correct gate condition, motor sizing and installation remain essential for reliable long-term operation.

IP44 Protection

The ROGER R20/510 has an IP44 protection rating and is designed for correctly installed outdoor automatic gate applications.

Electrical connections, cable entries and the complete installation should be properly protected against environmental exposure.

Single Swing Gate Automation

One ROGER R20/510 actuator can be installed on a compatible single-leaf swing gate up to 3.5 metres.

A suitable ROGER control unit manages the motor together with remote controls and compatible safety accessories.

Double Swing Gate Automation

For double-leaf gates, two R20/510 actuators can be installed, with one operator controlling each gate leaf.

The ROGER H70/200AC/BOX control unit can manage two 230V AC motors and coordinate the opening and closing sequence.

ROGER H70/200AC/BOX Control Unit

The complete R20/510 kit uses the ROGER H70/200AC/BOX control unit for two 230V AC gate motors.

The control system provides slowdown management and connections for compatible gate automation accessories and safety devices.

ROGER R90/F2ES Photocell Sensors

The R20/510 kit includes a pair of ROGER R90/F2ES synchronized external photocell sensors.

Photocells help detect vehicles, pedestrians and obstacles across the automatic gate entrance and communicate the safety condition to the control system.

ROGER T80/TX2 Remote Control

The kit includes a ROGER T80/TX2 dual-code transmitter together with the compatible H93/RX22A/I plug-in radio receiver.

Additional compatible remote controls can be programmed for authorised gate users.

FIFTHY/230 LED Flashing Light

A ROGER FIFTHY/230 LED flashing warning light is included with the complete kit.

The flashing light provides a visible warning while the automatic swing gate is operating.

Access Control Integration

The ROGER R20/510 automation system can be integrated with compatible external access control equipment through suitable control inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

ROGER R20/510 Applications

• Villa swing gates
• Residential houses
• Large residential gates
• Residential compounds
• Apartment buildings
• Commercial properties
• Office entrances
• Private parking entrances
• Automatic security gates
• Access-controlled entrances

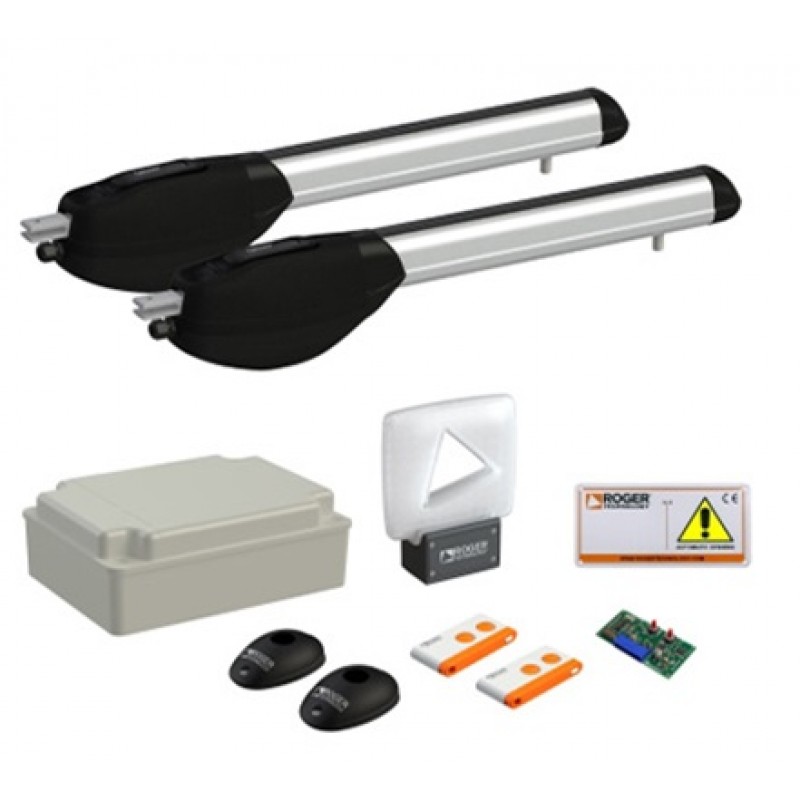

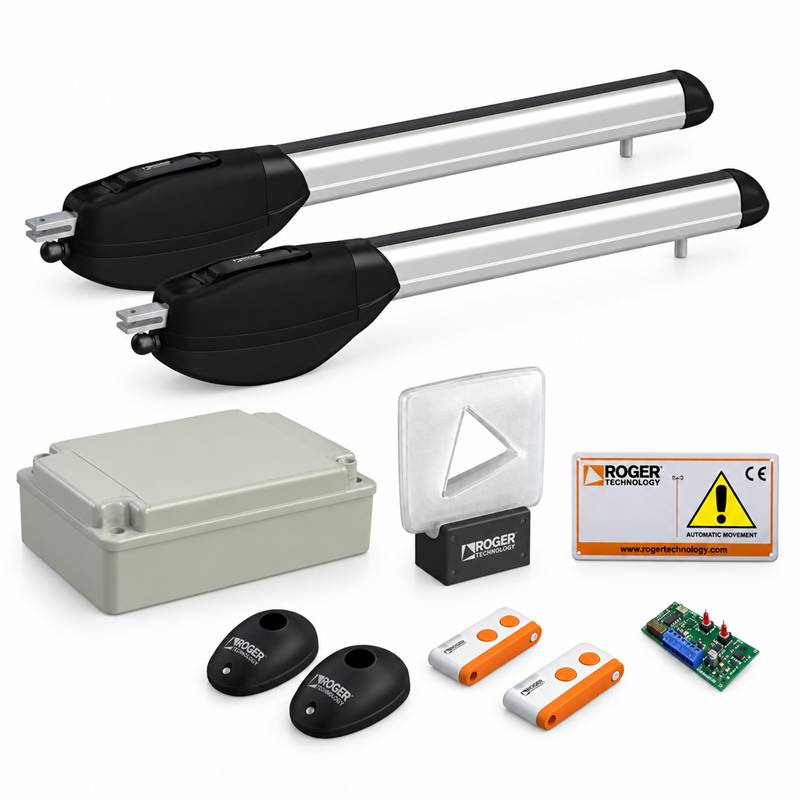

ROGER R20/510 Kit Includes

• 2 × ROGER R20/510 Swing Gate Motors
• 1 × ROGER H70/200AC/BOX Control Unit
• 1 × H93/RX22A/I 2-Channel 433.92MHz Receiver
• 1 × ROGER T80/TX2 Remote Control
• 1 × Pair ROGER R90/F2ES Photocell Sensors
• 1 × ROGER FIFTHY/230 LED Flashing Light
• 1 × Automatic Gate Warning Sign
• Motor Fixing Plates

Professional ROGER R20/510 Installation

Professional installation is recommended for the ROGER R20/510. Before installation, the gate leaf length, weight, hinge condition, pillar dimensions, opening angle and available mounting geometry should be checked.

Correct positioning of the front and rear mounting brackets is particularly important for a linear swing gate operator. Electrical wiring, control-panel programming and safety devices should also be correctly installed and tested.

ROGER R20/510 Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies ROGER R20/510 swing gate motors in UAE for residential and commercial automatic swing gate applications.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
