ROGER H30/645 600 KG Sliding Gate Motor UAE

The ROGER H30/645 Sliding Gate Motor is a reliable Italian automatic gate operator designed for sliding gates weighing up to 600 KG. Powered by a 230V AC motor, the H30/645 combines robust electromechanical construction with an integrated electronic control system for smooth and dependable residential and commercial gate automation.

The ROGER H30/645 features an onboard H70/104AC control unit, optical encoder and mechanical limit switches for accurate gate movement management. With 240W motor power, 300N thrust and a movement speed of approximately 9.5 m/min, it provides reliable performance for medium-size automatic sliding gates.

Designed and manufactured in Italy, the ROGER H30/645 is suitable for villas, residential buildings, commercial properties and other entrances requiring a dependable 600 KG sliding gate automation system.

Key Features

• Original ROGER Technology sliding gate motor
• Model H30/645
• Suitable for sliding gates up to 600 KG
• 230V AC electromechanical motor
• 240W rated power
• 300N maximum thrust
• 9.5 m/min gate movement speed
• 50% frequency of use
• Irreversible reduction gear
• Built-in H70/104AC control unit
• Optical encoder
• Mechanical limit switches
• Z15 Module 4 output gear
• 150°C motor thermal protection
• IP44 protection rating
• Operating temperature from -20°C to +55°C
• Made in Italy
• Suitable for residential and commercial gates

Technical Specifications

ROGER H30/645 600 KG Sliding Gate Opener

The ROGER H30/645 is designed to automate sliding gates weighing up to 600 KG. Its combination of a strong 230V AC motor, irreversible gearbox and electronic movement control makes it suitable for residential and light commercial automatic gate installations.

When selecting a sliding gate motor, the actual gate weight, gate length, wheel condition, track condition and operating frequency should always be considered.

230V AC Sliding Gate Motor

The ROGER H30/645 operates from a 230V AC 50Hz power supply and uses a 230V AC motor rated at approximately 240W.

The 230V electromechanical design provides dependable automatic operation for compatible residential and commercial sliding gates.

300N Maximum Thrust

The ROGER H30/645 provides approximately 300N of thrust, delivering the mechanical force required to move compatible sliding gates weighing up to 600 KG.

For reliable performance, the gate should move freely by hand before the automatic operator is installed.

9.5 m/min Gate Speed

The H30/645 provides a gate movement speed of approximately 9.5 metres per minute, equivalent to approximately 0.16 metres per second.

Actual opening time depends on the total gate travel distance, programmed settings and installation conditions.

H70/104AC Built-In Control Unit

The ROGER H30/645 incorporates the H70/104AC electronic control unit, providing central management of the automatic gate motor and compatible accessories.

The control system manages gate opening and closing commands together with compatible safety devices and automation accessories.

Optical Encoder

The H30/645 is equipped with an optical encoder that provides movement information to the control system.

Encoder feedback helps the electronic control system manage gate movement more accurately and contributes to controlled automatic operation.

Mechanical Limit Switches

The ROGER H30/645 uses mechanical limit switches to determine the required gate opening and closing positions.

Correct positioning and adjustment of the limit-switch brackets are important during installation to ensure the gate stops at the correct end positions.

Irreversible Gear Motor

The H30/645 uses an irreversible reduction gear designed for secure and reliable automatic sliding gate operation.

The mechanical drive system helps maintain the gate position when the motor is stopped.

50% Frequency of Use

The ROGER H30/645 has a specified 50% frequency of use, making it suitable for residential and suitable light commercial applications.

For properties with very high traffic or intensive continuous operation, a higher-duty automation system should be considered.

Motor Thermal Protection

The H30/645 motor incorporates 150°C thermal protection to protect the motor against excessive operating temperature.

Correct motor sizing and installation remain important for maintaining reliable long-term operation.

IP44 Protection

The ROGER H30/645 has an IP44 protection rating and is designed for correctly installed outdoor automatic gate applications.

The motor should be securely installed on a suitable concrete foundation with correct drainage and electrical protection.

Module 4 Gate Rack

The ROGER H30/645 uses a Z15 Module 4 output gear and operates with a compatible Module 4 sliding gate rack.

Correct rack alignment and spacing are essential to provide smooth movement and prevent excessive load on the gearbox.

Manual Release During Power Failure

The ROGER H30/645 provides a manual release system that allows the gate operator to be disengaged during a power failure, emergency or maintenance.

After manual release, a correctly installed and maintained sliding gate can be moved manually.

Photocell Safety Sensor Integration

Compatible ROGER photocell safety sensors can be connected to the H30/645 automation system to detect vehicles, pedestrians and obstacles across the automatic gate entrance.

The photocells should be correctly positioned, wired and tested according to the selected control-board safety configuration.

ROGER R90 Photocell Sensors

The H30/645 can be installed with compatible ROGER R90 photocell sensors for automatic gate obstacle detection.

When the infrared safety beam is interrupted, the gate control system responds according to its programmed safety logic.

ROGER Remote Control Operation

The ROGER H30/645 can be operated using compatible ROGER remote controls when the appropriate radio receiver is installed.

Remote-control operation provides convenient wireless opening and closing for authorised users.

Access Control Integration

The ROGER H30/645 can be integrated with compatible external access control devices through the appropriate control inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Loop detectors
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

ROGER H30/645 Applications

• Villa sliding gates
• Residential houses
• Apartment buildings
• Small residential compounds
• Commercial properties
• Office entrances
• Private parking entrances
• Automatic security gates
• Access-controlled entrances

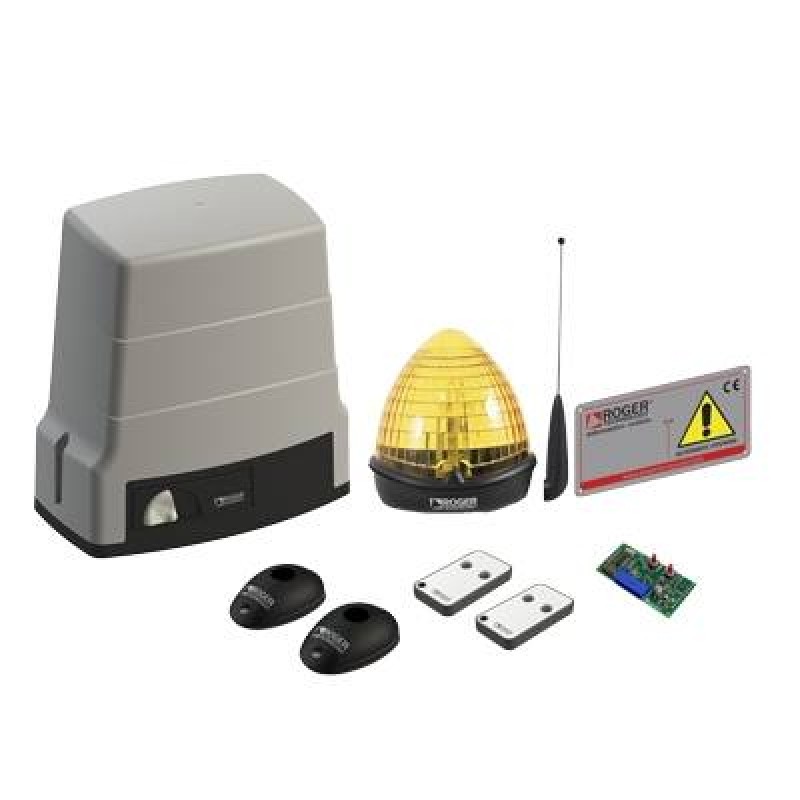

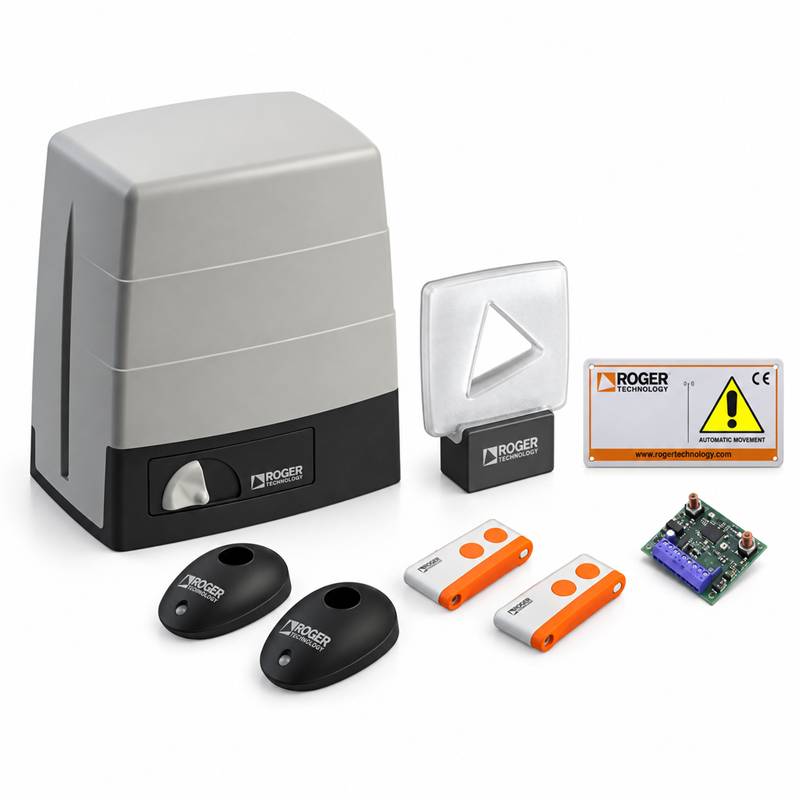

ROGER H30/645 Kit Includes

• 1 × ROGER H30/645 600 KG Sliding Gate Motor
• 2 × ROGER E80 Remote Controls
• 1 × Pair ROGER R90 Photocell Sensors
• 1 × ROGER Flashing Light
• 4 × Nylon Gear Racks – 1 Metre Each
• 1 × Push Button
• 1 × Motor Fixing Plate

Professional ROGER H30/645 Installation

Professional installation is recommended for the ROGER H30/645. Before installing the motor, the sliding gate should move smoothly by hand without excessive resistance.

The gate track, wheels, motor foundation, gear rack, limit switches, electrical wiring and safety devices should all be correctly installed and adjusted before commissioning.
