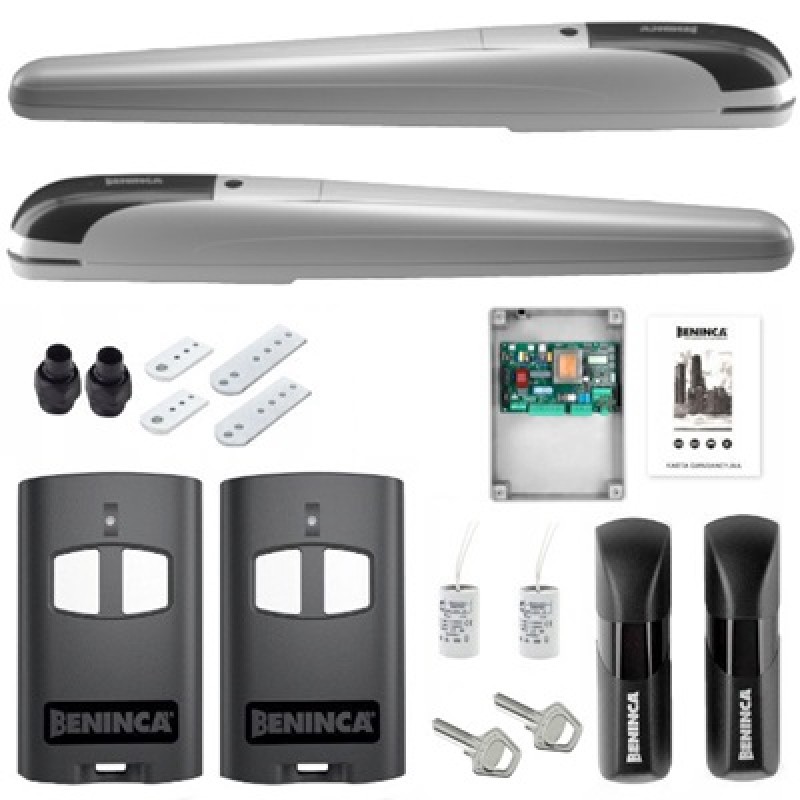

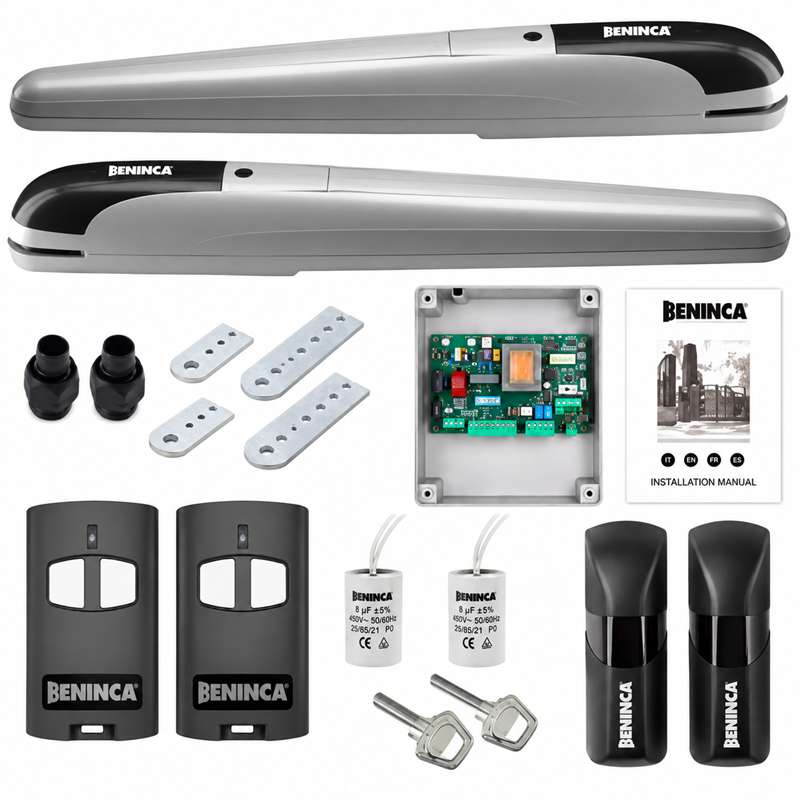

BENINCA BOB50M Swing Gate Motor 5M UAE
Price 2,800 AEDIn Stock
The BENINCA BOB50M Swing Gate Motor is a powerful 230V electromechanical linear gate operator designed for commercial swing gates with leaves up to 5 metres. Delivering a maximum thrust of 3500 N, the BOB50M provides reliable and smooth automatic operation for large swing gates, commercial properties, residential compounds, villas and vehicle access entrances.
The BENINCA BOB50M is an irreversible 230V AC electromechanical geared motor designed for reliable, quiet and straightforward installation. It features a standard stroke of 455 mm, maximum stroke of 520 mm and an opening time of approximately 26 seconds.
Two integrated adjustable mechanical stops allow the opening and closing positions to be set directly on the actuator. This practical design helps simplify installation and provides accurate adjustment of gate travel according to the installation requirements.
With a maximum gate leaf length of 5 metres, 3500 N thrust and a robust IP44 construction, the BOB50M is an excellent solution for professional automatic swing gate installations requiring a strong 230V linear actuator.
Key Features
- Genuine BENINCA swing gate operator
- Model BOB50M
- 230V AC electromechanical geared motor
- Suitable for gate leaves up to 5 metres
- Designed for commercial swing gate applications
- Maximum thrust of 3500 N
- Approximately 26-second opening time
- Standard stroke of 455 mm
- Maximum stroke of 520 mm
- 30% duty cycle
- IP44 protection rating
- Reliable and quiet operation
- Two adjustable mechanical stops
- Adjustable opening mechanical stop
- Adjustable closing mechanical stop
- Quick and convenient installation
- Easy-access manual release from above
- Operating temperature from -20°C to +50°C
- Grease lubrication
- Compatible with BENINCA BRAINY control unit
- Compatible with BENINCA BRAINY PLUS control unit
- Compatible with BENINCA HEADY control unit
- Prepared for smart connectivity with compatible BENINCA control equipment
Technical Specifications
| Brand | BENINCA |
| Model | BOB50M |
| Product Type | Swing Gate Motor / Linear Gate Operator |
| Application | Commercial |
| Motor Type | Irreversible Electromechanical Geared Motor |
| Motor Supply | 230V AC, 50–60 Hz |
| Maximum Absorbed Current | 1.4 A |
| Maximum Thrust | 3500 N |
| Opening Time | 26 seconds |
| Standard Stroke | 455 mm |
| Maximum Stroke | 520 mm |
| Duty Cycle | 30% |
| Maximum Gate Leaf Length | 5.0 m |
| Mechanical Stops | 2 Adjustable – Opening & Closing |
| Built-In Control Unit | No |
| Encoder | No |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +50°C |
| Lubrication | Grease |
| Motor Weight | 11.6 kg |
5 Metre Swing Gate Automation
The BENINCA BOB50M swing gate motor is designed for automatic swing gates with individual gate leaves measuring up to 5 metres. Its powerful 230V electromechanical drive makes it suitable for large gates at commercial properties, residential compounds, villas and other vehicle entrances.
The BOB50M can be used for single-leaf or double-leaf swing gate automation when combined with the appropriate BENINCA control unit and safety accessories.
3500N Maximum Thrust
The BOB50M delivers a maximum thrust of 3500 N, providing powerful and controlled movement for compatible large swing gates. Its approximately 26-second opening time provides smooth operation for large gate leaves.
Adjustable Mechanical Stops
The BENINCA BOB50M incorporates two adjustable mechanical stops for the opening and closing positions. These stops allow installers to configure the required gate travel directly on the actuator and help simplify the installation process.
Reliable & Quiet Operation
BENINCA designed the BOB50M for reliable and quiet automatic gate operation. Its robust electromechanical construction, integrated mechanical stops and practical installation design make it suitable for professional commercial swing gate automation.
Manual Release System
The BOB50M features an easy-access manual release from above. This allows the gate to be manually operated when required, such as during maintenance or a mains power failure.
Compatible BENINCA Control Units
The BOB50M can be combined with compatible BENINCA 230V swing gate control units including BRAINY, BRAINY PLUS and HEADY, depending on the required installation and functions.
Compatible control systems can provide remote control operation, pedestrian opening, photocell safety inputs, electric lock control, torque adjustment, slowdown management and other automatic gate functions.
Smart Control & Diagnostics
With compatible BENINCA control equipment, the system can support optional X.BE (KNX) and Q.BE (MQTT) accessories for integration with advanced automation systems.
Compatible systems can also be configured and diagnosed using the BeUP app and PRO.UP accessory, providing access to parameters, operating logic, error messages, firmware updates, gate status and remote commands.
Applications
- Commercial swing gates
- Swing gate leaves up to 5 metres
- Large villa entrance gates
- Residential compound gates
- Commercial property entrances
- Single-leaf swing gates
- Double-leaf swing gates
- Automatic driveway gates
- Large vehicle access entrances
BENINCA BOB50M Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BENINCA BOB50M swing gate motors in UAE, together with BENINCA control boards, remote controls, photocells, flashing lights, electric locks and automatic gate accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
