BENINCA BILL30M Swing Gate Motor 2.5M UAE

The BENINCA BILL30M Swing Gate Motor is a compact and reliable 230V electromechanical gate operator designed for residential swing gates with leaves up to 2.5 metres. Its powerful drive system delivers a maximum thrust of 2800 N, providing dependable automatic operation for residential entrance gates, villas and private properties.

The BENINCA BILL30M features an irreversible 230V AC electromechanical geared motor with a standard stroke of 300 mm and maximum stroke of 320 mm. With an opening time of approximately 16 seconds and a 30% duty cycle, it provides smooth and reliable operation for everyday residential gate automation.

Its compact dimensions and installation geometry make the BILL30M particularly suitable for gates where installation space is limited. BENINCA also highlights its clean design as particularly suitable for forged iron gates.

For demanding outdoor environments, the worm screw is protected by a scraper ring and the operator uses a stainless steel stem. This construction makes the BILL30M suitable for dusty, sandy and challenging atmospheric environments.

Key Features

• Genuine BENINCA swing gate operator
• Model BILL30M
• 230V AC electromechanical geared motor
• Suitable for gate leaves up to 2.5 metres
• Designed for residential swing gates
• Maximum thrust of 2800 N
• Approximately 16-second opening time
• Standard stroke of 300 mm
• Maximum stroke of 320 mm
• 30% duty cycle
• IP54 protection rating
• Compact design for easy installation
• Particularly suitable for forged iron gates
• Stainless steel stem
• Worm screw protected by scraper ring
• Suitable for dusty and sandy environments
• Easy-access manual release from above
• Available in right-hand and left-hand versions
• Operating temperature from -20°C to +50°C
• Compatible with BENINCA swing gate control systems
• Prepared for advanced smart-control accessories with compatible control units

Technical Specifications

230V Residential Swing Gate Automation

The BENINCA BILL30M 230V swing gate motor is designed for residential automatic gate applications with gate leaves measuring up to 2.5 metres. Its electromechanical drive system provides reliable automatic opening and closing for everyday residential use.

The operator's compact construction makes it suitable for villas, private residences and residential entrances where a neat and discreet swing gate automation system is required.

2800N Maximum Thrust

The BILL30M produces up to 2800 N maximum thrust, providing powerful movement for compatible swing gates. Its approximately 16-second opening time provides a practical balance between smooth gate movement and convenient vehicle access.

Compact & Easy Installation

BENINCA designed the BILL30M swing gate operator with compact dimensions and practical installation geometry. This simplifies installation and makes the actuator particularly suitable for applications where available mounting space is limited.

Its clean external design also makes the BILL30M particularly suitable for decorative and forged iron entrance gates.

Suitable for Dusty & Sandy Environments

The BILL30M features a worm screw protected by a scraper ring together with a stainless steel stem. These components help protect the actuator in dusty, sandy and demanding outdoor environments.

This construction is particularly useful for automatic swing gate installations in environments where dust and sand are common.

Manual Release System

An easily accessible manual release mechanism is positioned at the top of the operator. This allows the swing gate to be manually released when required, such as during maintenance or a mains power failure.

Compatible BENINCA Control Units

The BILL30M can be combined with compatible BENINCA swing gate control units such as BRAINY, BRAINY PLUS and HEADY, depending on the required installation and functions.

Compatible control systems can provide functions including remote control operation, pedestrian opening, photocell safety inputs, adjustable operating parameters, slowdown management and electric lock control.

Applications

• Residential swing gates
• Villa entrance gates
• Private house gates
• Forged iron gates
• Double-leaf swing gates
• Single-leaf swing gates
• Driveway entrance gates
• Gate leaves up to 2.5 metres

BENINCA BILL30M Supplier in UAE

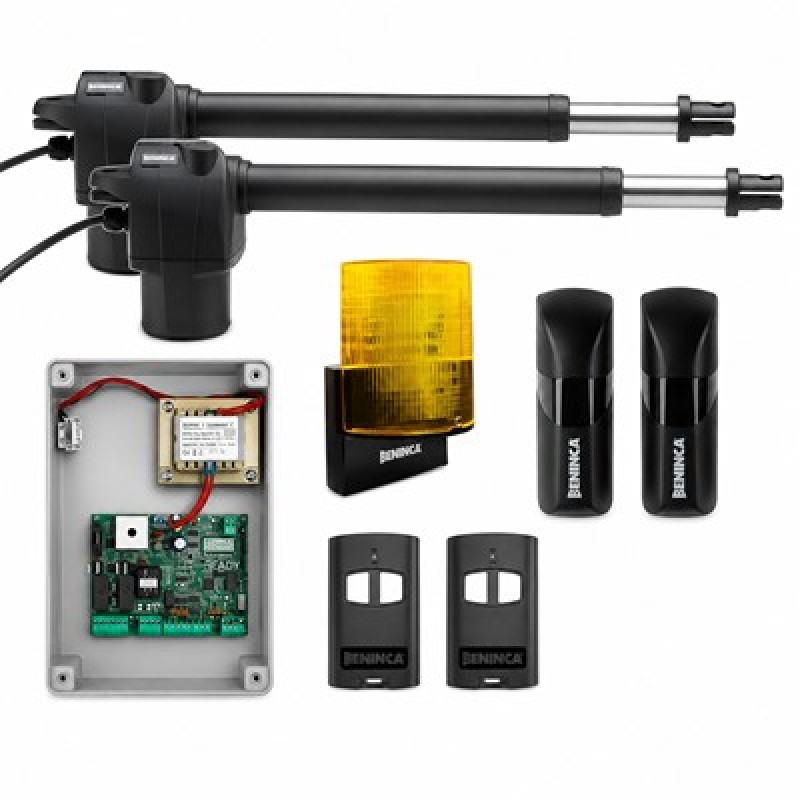

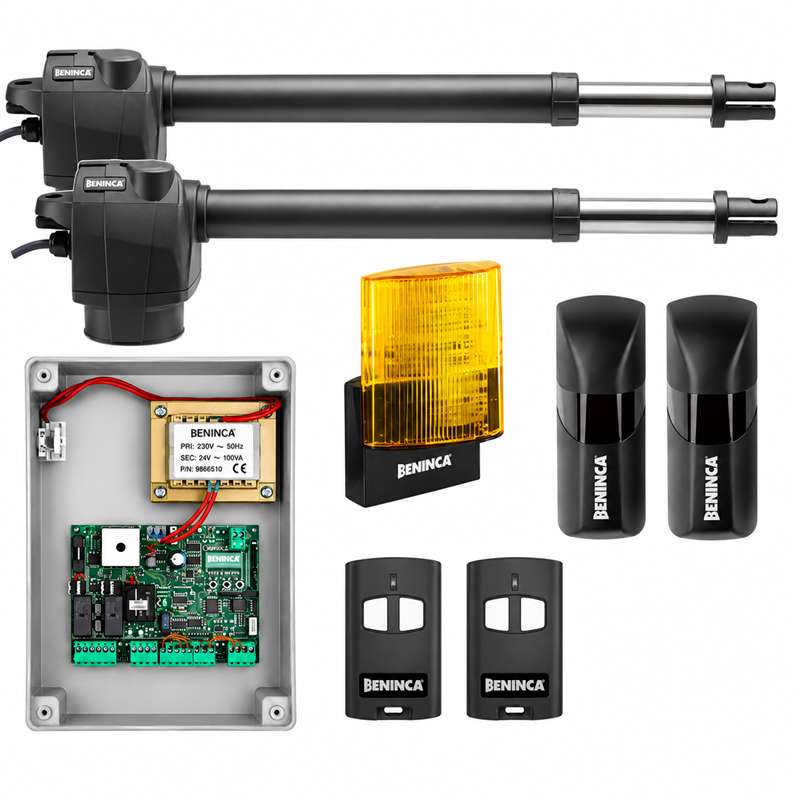

AAM Automatic Doors & Gate Barriers supplies BENINCA BILL30M swing gate motors in UAE, together with BENINCA control boards, remote controls, photocells, flashing lights, electric locks and automatic gate accessories.

Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
