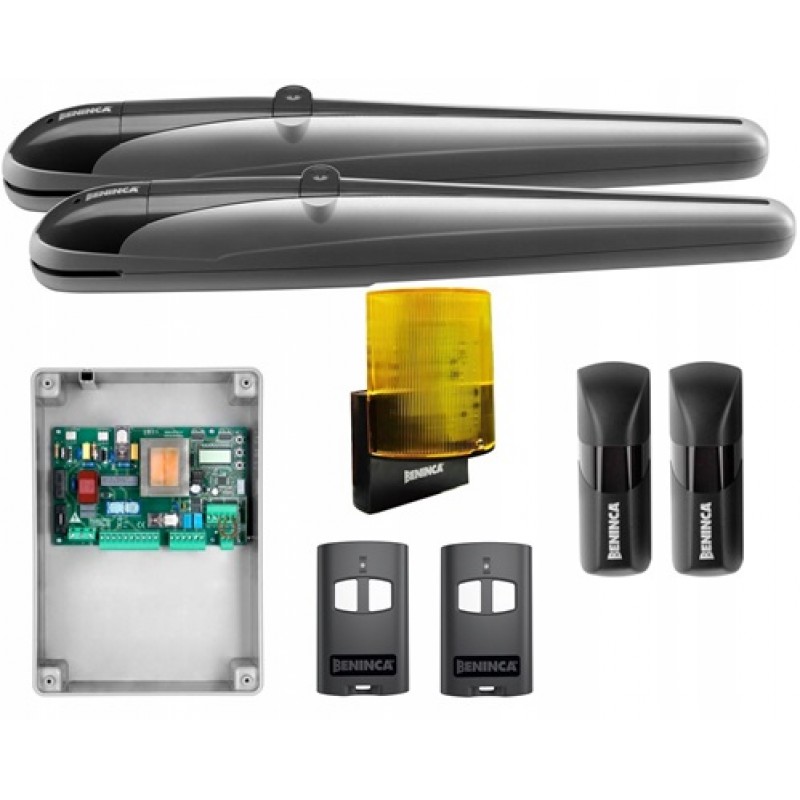

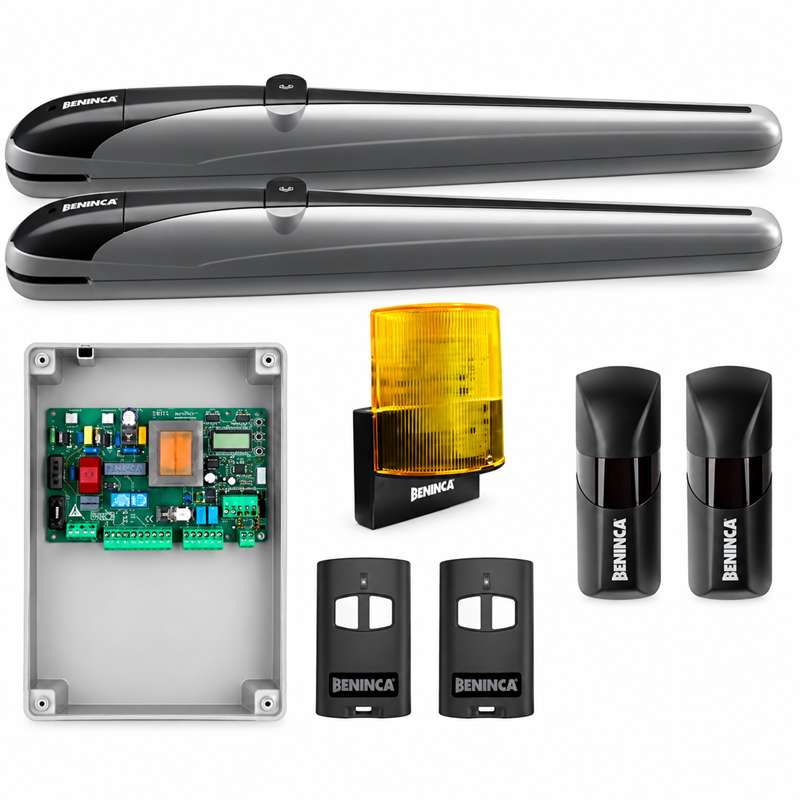

BENINCA BOB30M Swing Gate Motor 3M UAE
Price 2,400 AEDIn Stock
The BENINCA BOB30M Swing Gate Motor is a reliable 230V electromechanical gate operator designed for commercial swing gates with leaves up to 3 metres. Built for smooth, quiet and dependable automatic gate operation, the BOB30M is an excellent solution for villas, residential compounds, commercial properties and vehicle entrance gates.
The BENINCA BOB30M is an irreversible 230V AC electromechanical geared motor delivering a maximum thrust of 2300 N. It features an opening time of approximately 18 seconds, a standard stroke of 270 mm and a maximum stroke of 325 mm.
One of the key advantages of the BOB30M is its two adjustable mechanical stops for opening and closing. These integrated mechanical stops simplify installation and allow the gate's opening and closing positions to be adjusted according to the requirements of the installation.
The BOB30M also features an easy-access manual release system from above. Its reliable and quiet operation, straightforward installation and compatibility with BENINCA control systems make it a practical choice for professional automatic swing gate installations.
Key Features
- Genuine BENINCA swing gate operator
- Model BOB30M
- 230V AC electromechanical geared motor
- Suitable for gate leaves up to 3 metres
- Designed for commercial swing gate applications
- Maximum thrust of 2300 N
- Approximately 18-second opening time
- Standard stroke of 270 mm
- Maximum stroke of 325 mm
- 30% duty cycle
- IP44 protection rating
- Reliable and quiet operation
- Two adjustable mechanical stops
- Adjustable mechanical stop for opening
- Adjustable mechanical stop for closing
- Quick and convenient installation
- Easy-access manual release from above
- Operating temperature from -20°C to +50°C
- Compatible with BENINCA BRAINY control unit
- Compatible with BENINCA BRAINY PLUS control unit
- Compatible with BENINCA HEADY control unit
- Smart connectivity available with compatible BENINCA control equipment
Technical Specifications
| Brand | BENINCA |
| Model | BOB30M |
| Product Type | Swing Gate Motor / Linear Gate Operator |
| Application | Commercial |
| Motor Type | Irreversible Electromechanical Geared Motor |
| Motor Supply | 230V AC, 50–60 Hz |
| Maximum Absorbed Current | 1.8 A |
| Maximum Thrust | 2300 N |
| Opening Time | 18 seconds |
| Standard Stroke | 270 mm |
| Maximum Stroke | 325 mm |
| Duty Cycle | 30% |
| Maximum Gate Leaf Length | 3.0 m |
| Mechanical Stops | 2 Adjustable Stops – Opening & Closing |
| Built-In Control Unit | No |
| Encoder | No |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +50°C |
| Lubrication | Grease |
| Motor Weight | 8.5 kg |
3 Metre Swing Gate Automation
The BENINCA BOB30M swing gate motor is designed for automatic swing gates with individual gate leaves measuring up to 3 metres. Its robust 230V electromechanical drive system makes it suitable for commercial and residential vehicle entrances requiring reliable everyday gate automation.
The BOB30M can be installed on single-leaf or double-leaf swing gate systems when combined with the appropriate BENINCA control equipment and safety accessories.
2300N Maximum Thrust
The BOB30M produces a maximum thrust of 2300 N, providing powerful and controlled movement for compatible swing gates. The approximately 18-second opening time provides smooth gate movement while maintaining convenient vehicle access.
Adjustable Mechanical Stops
The BENINCA BOB30M incorporates two adjustable mechanical stops for the opening and closing positions. This design helps simplify installation because the required gate travel can be mechanically adjusted directly on the actuator.
The integrated mechanical stops provide installers with a convenient method of setting the required opening and closing positions according to the gate and installation geometry.
Reliable & Quiet Operation
BENINCA designed the BOB30M as a reliable and quiet electromechanical swing gate operator. Its practical construction and adjustable mechanical stops allow quick installation and make it suitable for professional automatic gate systems.
Manual Release System
The BOB30M features an easy-access manual release from above. The manual release allows the gate to be operated manually when required, such as during maintenance or a mains power failure.
Compatible BENINCA Control Units
The BOB30M can be combined with compatible BENINCA 230V swing gate control units such as BRAINY, BRAINY PLUS and HEADY, depending on the required system configuration.
Compatible control units can provide remote control operation, pedestrian opening, photocell inputs, safety-edge connections, electric lock control, torque adjustment, slowdown management and other automatic gate functions.
Smart Control & Diagnostics
When used with compatible BENINCA control equipment, the system can be prepared for optional X.BE (KNX) and Q.BE (MQTT) accessories.
Compatible BENINCA systems can also be managed using the BeUP app and PRO.UP accessory, allowing installers to adjust parameters and operating logic, read error messages, update firmware, perform remote diagnostics, check gate status and send commands.
Applications
- Commercial swing gates
- Swing gate leaves up to 3 metres
- Villa entrance gates
- Residential compound gates
- Commercial property entrances
- Single-leaf swing gates
- Double-leaf swing gates
- Automatic driveway gates
- Vehicle access entrances
BENINCA BOB30M Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BENINCA BOB30M swing gate motors in UAE, together with BENINCA control boards, remote controls, photocells, flashing lights, electric locks and automatic gate accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
