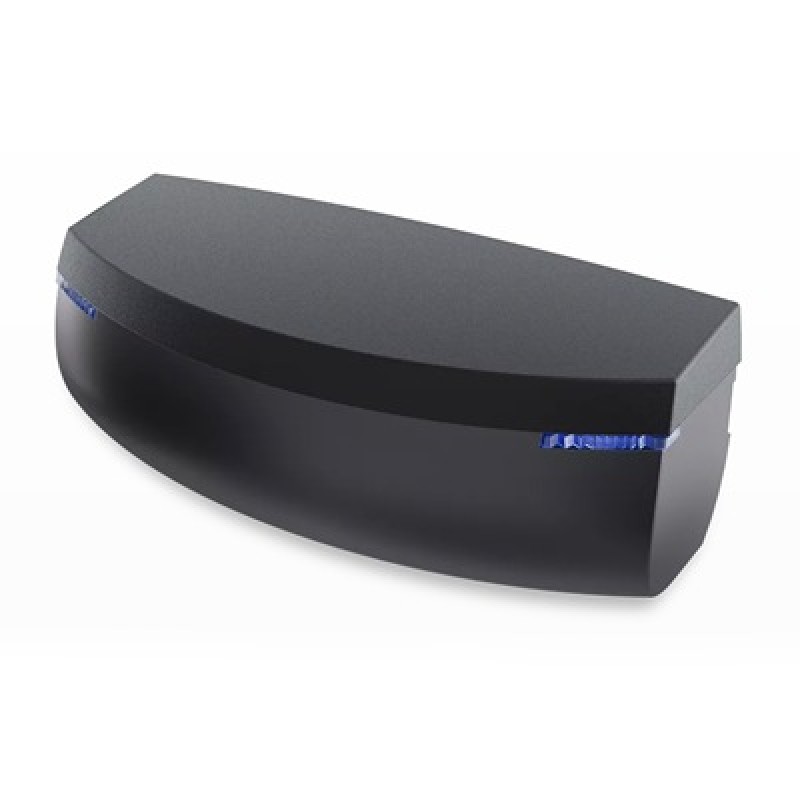

BEA EAGLE ARTEK Automatic Door Radar Sensor UAE
Price 0 AEDIn Stock
The BEA EAGLE ARTEK Automatic Door Radar Sensor is a universal microwave opening sensor designed for reliable activation of automatic doors. Using advanced 24.15 GHz ARTEK radar technology, it provides accurate motion detection and one-way automatic door activation for commercial, public and professional entrance systems.
The EAGLE ARTEK features an electronically adjustable detection field, allowing installers to modify the size and shape of the radar detection area without manually changing the antenna. Configuration is carried out conveniently using push buttons, making installation and adjustment fast and straightforward.
Its advanced cross-traffic rejection helps filter parallel pedestrian movement that could otherwise cause unnecessary door activation. Combined with one-way opening detection, this helps optimise automatic door opening and closing cycles while reducing unwanted activations.
With a slim housing, low power consumption and IP54 protection rating, the BEA EAGLE ARTEK is suitable for a wide range of automatic entrance applications. Its compact dimensions also allow discreet installation with modern automatic door operators.
Key Features
- Genuine BEA EAGLE ARTEK automatic door sensor
- Universal opening sensor for automatic doors
- Advanced ARTEK microwave radar technology
- 24.15 GHz operating frequency
- One-way automatic door opening detection
- Motion detection technology
- Improved cross-traffic rejection
- Helps reduce unwanted door activations
- Electronically adjustable radar detection field
- No manual antenna change required for field adjustment
- Simple push-button configuration
- Wide and narrow detection field options
- Minimum detection speed of 5 cm/s
- 12–24V AC/DC power supply
- Low power consumption under 1W
- Solid-state relay output
- Mounting height from 1.8m to 4m
- IP54 protection rating
- Slim and compact ABS housing
Technical Specifications
| Brand | BEA |
| Model | EAGLE ARTEK |
| Product Type | Automatic Door Opening Sensor |
| Technology | Microwave Radar |
| Transmitter Frequency | 24.15 GHz |
| Detection Mode | Motion Detection |
| Wide Detection Field | Up to 4m × 2m @ 2.2m Height |
| Narrow Detection Field | Up to 2m × 2.2m @ 2.2m Height |
| Minimum Detection Speed | 5 cm/s |
| AC Power Supply | 12–24V AC ±10%, 50–60Hz |
| DC Power Supply | 12–24V DC +30% / -10% |
| Maximum Power Consumption | < 1W |
| Output | Solid-State Relay, Free of Polarity |
| Maximum Switching Voltage | 30V AC / 42V DC |
| Maximum Switching Current | 100mA Resistive |
| Mounting Height | 1.8m – 4m |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 120 × 50 × 50mm |
| Tilt Angle | 0°–90° Vertical / -30° to +30° Lateral |
| Housing Material | ABS |
| Weight | 120g |
| Cable Length | 2.5m |
One-Way Automatic Door Opening
The BEA EAGLE ARTEK radar sensor provides one-way opening detection to optimise automatic door operation. The sensor can detect relevant approaching movement while helping reduce unnecessary activation caused by movement that does not require the door to open.
This helps optimise automatic door opening and closing cycles and is particularly useful for busy commercial entrances where unnecessary door activation should be minimised.
Electronic Detection Field Adjustment
One of the key advantages of the EAGLE ARTEK is its electronically adjustable radar detection field. The shape and size of the detection zone can be configured without manually changing the radar antenna.
The sensor supports a wide detection field of up to 4m × 2m and a narrow field of up to 2m × 2.2m when installed at a height of approximately 2.2 metres.
Cross-Traffic Rejection
The EAGLE ARTEK features improved cross-traffic rejection to help filter parallel pedestrian movements around the entrance. This reduces unwanted detections caused by people walking past the door instead of approaching it for entry.
Reducing unnecessary automatic door opening cycles can improve entrance efficiency and help limit unnecessary loss of conditioned indoor air.
Applications
- Automatic sliding doors
- Automatic swing doors
- Automatic revolving door applications
- Shopping malls and retail stores
- Hospitals and healthcare facilities
- Hotels and hospitality entrances
- Office and commercial buildings
- Supermarkets
- Public building entrances
- High-traffic automatic entrances
Why Choose BEA EAGLE ARTEK?
The BEA EAGLE ARTEK automatic door opening sensor combines advanced digital radar technology, electronic field adjustment, one-way detection and improved cross-traffic rejection in a slim and compact device.
Its flexible detection field, low power consumption and simple push-button configuration make it an excellent choice for professional automatic door installations requiring reliable and efficient motion activation.
BEA Automatic Door Sensor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BEA EAGLE ARTEK radar sensors in UAE, together with automatic door operators, BEA safety sensors, infrared sensors, radar sensors and automatic door accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
