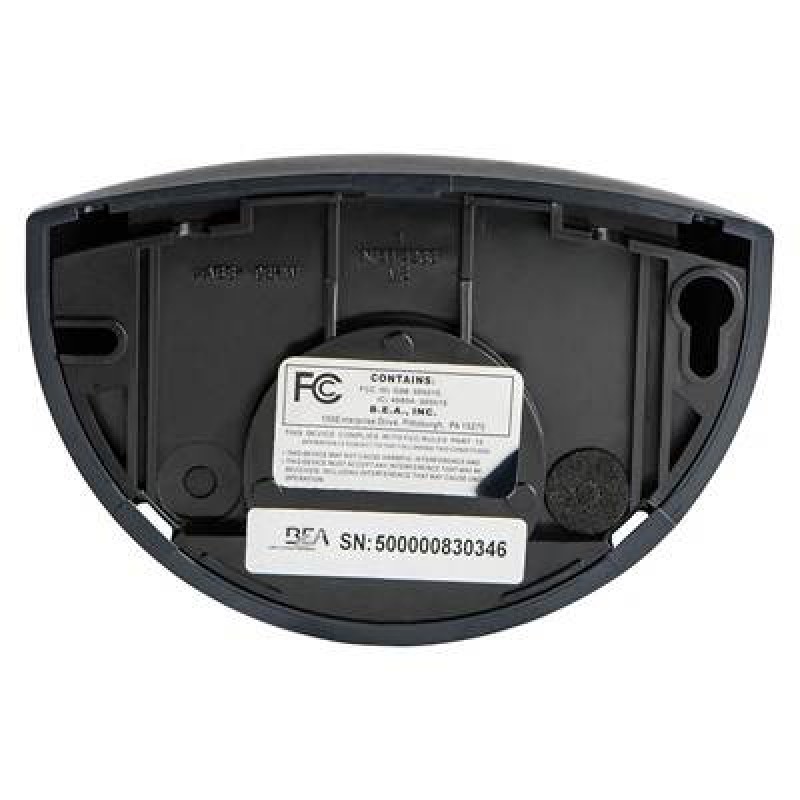

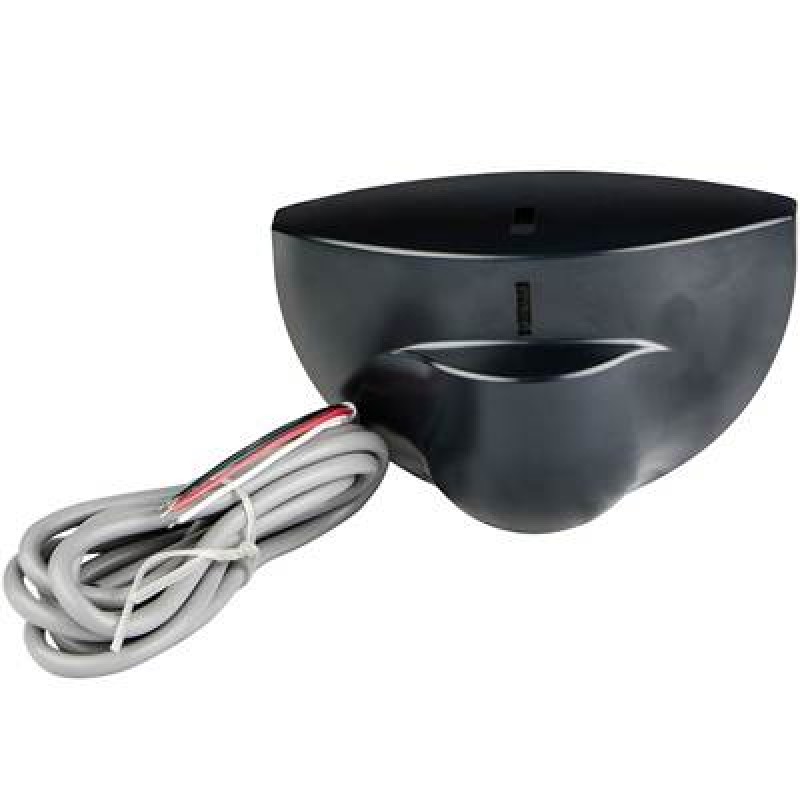

BEA EAGLE 5+ Radar Motion Sensor UAE
Price 590 AEDIn Stock
The BEA EAGLE 5+ Radar Motion Sensor is a professional automatic door activation sensor designed for sliding doors, swing doors and other automatic entrance systems. Using advanced 24.150 GHz microwave radar technology, the sensor provides fast, stable and reliable motion detection for commercial, residential and industrial automatic door applications.
The BEA EAGLE 5+ features unidirectional motion detection, allowing the sensor to detect approaching pedestrians while ignoring movement away from the door. This intelligent detection helps reduce unnecessary door openings, improving entrance efficiency and helping reduce energy loss in air-conditioned buildings.
With an adjustable detection field, flexible mounting angles and a durable IP54-rated ABS housing, the BEA EAGLE 5+ provides a reliable automatic door activation solution for shopping malls, hospitals, offices, hotels, retail stores and commercial entrances.
Key Features
- Genuine BEA automatic door radar sensor
- 24.150 GHz microwave radar technology
- Advanced microprocessor-controlled detection
- Unidirectional motion detection
- Detects approaching pedestrian movement
- Helps reduce unnecessary door openings
- Adjustable detection field size and shape
- Adjustable vertical and lateral detection angles
- Fast and stable motion detection
- Low power consumption
- 12–24V AC/DC power supply
- Relay output for automatic door activation
- IP54 protection rating
- Compact and durable ABS housing
- Suitable for sliding and swing automatic doors
Technical Specifications
| Brand | BEA |
| Model | EAGLE 5+ |
| Product Type | Automatic Door Radar Motion Sensor |
| Technology | Microwave Radar + Microprocessor |
| Detection Mode | Motion Detection |
| Transmitter Frequency | 24.150 GHz |
| Minimum Detection Speed | 5 cm/s |
| Power Supply | 12–24V AC ±10% / 12–24V DC |
| Mains Frequency | 50–60 Hz |
| Power Consumption | < 2W |
| Output | Relay Change-Over Contact |
| Maximum Contact Voltage | 42V AC/DC |
| Maximum Contact Current | 1A |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 120 × 80 × 50 mm |
| Vertical Tilt | 0° to 90° |
| Lateral Tilt | -30° to +30° |
| Housing Material | ABS |
Unidirectional Motion Detection
The BEA EAGLE 5+ automatic door sensor can be configured for unidirectional detection so that approaching movement activates the automatic door while departing movement can be ignored. This helps prevent unnecessary reopening of the door after a person has passed through the entrance.
This directional detection is especially useful for air-conditioned commercial buildings because reducing unnecessary door opening cycles can help improve energy efficiency and maintain indoor temperature.
Applications
- Automatic sliding glass doors
- Automatic swing doors
- Commercial building entrances
- Shopping malls and retail stores
- Hospitals and healthcare facilities
- Hotels and hospitality entrances
- Office buildings
- Supermarkets
- Industrial automatic doors
- High-traffic pedestrian entrances
Package Includes
- 1 × BEA EAGLE 5+ Radar Motion Sensor
- Mounting Accessories
- 1 × User Manual
Why Choose BEA EAGLE 5+?
The BEA EAGLE 5+ radar motion sensor combines accurate microwave detection, directional sensing and an adjustable detection field in a compact automatic door sensor. Its reliable performance and flexible configuration make it suitable for busy commercial entrances where dependable automatic door activation is required.
BEA Automatic Door Sensor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BEA automatic door sensors in UAE, including radar motion sensors, safety sensors, loop detectors and automatic door accessories for commercial and industrial entrance automation systems.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
