SOMFY IXENGO JS 230V Swing Gate Motor UAE

The SOMFY IXENGO JS 230V Swing Gate Motor is a robust automatic gate actuator designed for residential and commercial swing gate leaves measuring up to 3 metres and weighing up to 300 KG per leaf. The IXENGO JS combines powerful 230V operation, 3000N push and pull force and SOMFY RTS radio technology for dependable automatic gate access.

Designed for semi-intensive use, the SOMFY IXENGO JS provides approximately 280W power consumption and a movement speed of 18 mm/s. Depending on the mounting geometry, the motor can open a gate leaf to 90° in approximately 7 to 19 seconds.

The system supports soft start, soft stop, adjustable torque, self-learning gate travel and up to 128 SOMFY RTS radio channels when used with the compatible CB 230 RTS control board.

Key Features

• Original SOMFY IXENGO swing gate motor
• Model IXENGO JS 230V RTS
• Suitable for gate leaves up to 3 metres
• Maximum gate leaf weight up to 300 KG
• 230V AC electromechanical actuator
• 280W maximum power consumption
• 3000N push and pull force
• 18 mm/s operating speed
• Approximately 7–19 second opening to 90°
• Semi-intensive use
• Soft start function
• Soft stop function
• Adjustable torque
• Self-learning gate travel
• RTS radio technology
• 433.42 MHz operating frequency
• Up to 128 radio channels
• Manual release with individual key
• High resistance to wind pressure and forced opening
• IP54 protection rating
• Operating temperature -20°C to +55°C

Technical Specifications

SOMFY IXENGO JS 3m Swing Gate Motor

The SOMFY IXENGO JS is designed for compatible swing gate leaves up to 3 metres long and 300 KG. Its robust linear actuator design makes it suitable for villas, residential properties, apartment entrances and commercial gates requiring reliable automatic operation.

Gate length and weight should always be considered together with hinge condition, pillar dimensions, wind exposure, gate construction and operating frequency.

230V Automatic Swing Gate Motor

The IXENGO JS operates from a 230V AC 50/60Hz supply and uses a 230V electromechanical motor.

This robust mains-powered design is suited to residential and commercial swing gate automation requiring strong, reliable daily operation.

3000N Push & Pull Force

The SOMFY IXENGO JS provides up to 3000N of push and pull force.

This provides powerful linear movement for correctly installed swing gate leaves within the recommended 3 metre / 300 KG application range.

18 mm/s Gate Movement Speed

The IXENGO JS operates at approximately 18 mm per second.

For a typical 90° installation, Somfy specifies an opening time of approximately 7 to 19 seconds, depending on installation geometry and settings.

Soft Start & Soft Stop

When managed by the compatible SOMFY control system, the IXENGO JS supports soft start and soft stop.

These functions provide smoother movement at the beginning and end of gate travel and help reduce mechanical stress on the gate structure, hinges and motor brackets.

Adjustable Torque

The SOMFY IXENGO control system provides adjustable torque, allowing the installer to configure motor force according to the gate characteristics and installation conditions.

Correct force adjustment should always be completed together with testing of the safety devices.

Self-Learning Gate Travel

The compatible SOMFY CB 230 RTS control system supports a self-learning programming procedure for gate travel.

This simplifies commissioning while additional settings can be configured through the available control-board switches.

Resistance to Wind & Forced Opening

The IXENGO JS uses a non-reversible mechanical system designed to provide strong resistance when the gate is closed.

This construction helps the gate resist wind pressure and attempted forced opening, although additional locking may still be required depending on gate dimensions, installation and security requirements.

Manual Release with Individual Key

The SOMFY IXENGO JS includes a manual release mechanism operated with an individual key.

This allows the actuator to be disengaged for manual gate movement during power failure, emergency situations or maintenance.

SOMFY CB 230 RTS Control Board

A complete double-gate IXENGO JS system can use the SOMFY CB 230 RTS control board to manage both 230V swing gate motors.

The controller manages motor movement, SOMFY RTS radio commands, operating parameters and compatible safety accessories.

SOMFY RTS Remote Control

The CB 230 RTS system uses SOMFY RTS radio technology at 433.42 MHz and can memorise up to 128 radio channels.

Compatible SOMFY RTS remote controls can therefore be programmed for authorised gate users.

Photocell Safety Sensors

Compatible SOMFY photocell sensors can be installed around the swing gate entrance to detect vehicles, pedestrians and other obstacles during automatic operation.

The position of the photocells should be selected according to the gate opening direction and movement area.

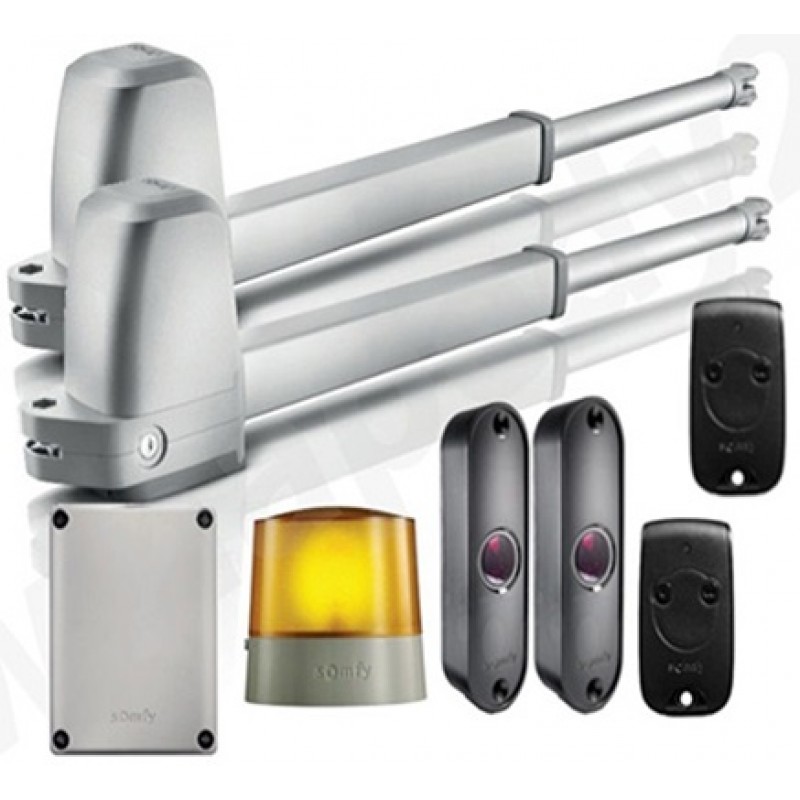

SOMFY IXENGO JS Complete Kit Includes

• 2 × SOMFY IXENGO JS 230V Swing Gate Motors
• 1 × SOMFY CB 230 RTS Control Board
• 2 × SOMFY KEYTIS RTS 2-Channel Remote Controls
• 1 × SOMFY ECO Pro 230V Flashing Light
• 1 × Pair SOMFY Master Pro Bitech Photocell Sensors
• 1 × Push Button

Access Control Integration

The SOMFY IXENGO JS automatic swing gate system can be integrated with compatible external access-control devices through the appropriate control inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

Residential & Commercial Applications

• Villa swing gates
• Residential entrances
• Apartment buildings
• Residential compounds
• Commercial properties
• Office entrances
• Private parking gates
• Double-leaf automatic swing gates

Professional SOMFY IXENGO JS Installation

Professional installation is recommended for the SOMFY IXENGO JS. Before installation, each gate leaf should move smoothly by hand and the hinges should be correctly aligned and in good mechanical condition.

Correct pillar and leaf bracket geometry is particularly important for linear actuators. The motor should also be installed at least 100 mm above ground level, according to Somfy's installation guidance.

After installation, gate travel, torque, soft start and stop, photocells and all safety functions should be correctly programmed and tested.
