SOMFY IXENGO JL 230V Swing Gate Motor UAE

The SOMFY IXENGO JL 230V Swing Gate Motor is a powerful electromechanical gate actuator designed for large swing gate leaves measuring up to 4 metres and weighing up to 400 KG per leaf. Designed for residential and commercial automatic gate applications, the IXENGO JL combines strong 230V operation, 3000N push and pull force and SOMFY RTS radio technology.

The SOMFY IXENGO JL operates from a 230V AC 50/60Hz power supply and consumes approximately 280W. With a movement speed of 18 mm/s and semi-intensive operating capability, it provides reliable automatic gate movement for larger villa entrances, residential compounds and commercial properties.

When used with the compatible SOMFY CB 230 RTS control board, the system supports soft start, soft stop, adjustable torque, self-learning gate travel and up to 128 memorisable SOMFY RTS radio channels.

Key Features

• Original SOMFY IXENGO swing gate motor
• Model IXENGO JL 230V RTS
• Suitable for gate leaves up to 4 metres
• Maximum gate leaf weight up to 400 KG
• 230V AC electromechanical actuator
• 280W power consumption
• 3000N push and pull force
• 18 mm/s operating speed
• Semi-intensive use
• Soft start function
• Soft stop function
• Adjustable torque
• Self-learning gate travel
• SOMFY RTS radio technology
• 433.42 MHz radio frequency
• Up to 128 radio channels
• Manual release with individual key
• High resistance to wind pressure and attempted forced opening
• IP54 protection rating
• Operating temperature -20°C to +55°C

Technical Specifications

SOMFY IXENGO JL 4m Swing Gate Motor

The SOMFY IXENGO JL is designed for larger automatic swing gate leaves measuring up to 4 metres and weighing up to 400 KG.

Its strong linear actuator construction makes it particularly suitable for large villas, residential compounds, commercial properties and other entrances requiring dependable automatic gate movement.

Up to 400 KG Per Gate Leaf

Each IXENGO JL actuator is designed for a compatible gate leaf weighing up to 400 KG.

Gate weight should always be considered together with gate length, construction, hinge condition, pillar dimensions, wind exposure and operating frequency.

For Gate Leaves Up to 4 Metres

The SOMFY IXENGO JL is suitable for compatible swing gate leaves measuring up to 4 metres.

This makes it a larger-capacity alternative to the IXENGO JS, which is designed for leaves up to 3 metres.

230V AC Swing Gate Motor

The IXENGO JL operates from a 230V AC ±10%, 50/60Hz power supply.

Its mains-powered electromechanical design provides strong and dependable automatic operation for larger swing gates.

3000N Push & Pull Force

The SOMFY IXENGO JL provides up to 3000N of push and pull force.

This high linear force helps provide reliable movement for correctly installed gate leaves within the recommended 4 metre / 400 KG range.

18 mm/s Movement Speed

The IXENGO JL operates at approximately 18 mm per second.

Actual opening time depends on gate geometry, bracket positioning, opening angle and controller configuration.

Soft Start & Soft Stop

When connected to the compatible SOMFY CB 230 RTS controller, the IXENGO JL supports soft start and soft stop.

These functions provide smoother movement near the beginning and end of gate travel and help reduce mechanical stress on the actuator, brackets, gate structure and hinges.

Adjustable Motor Torque

The control system provides adjustable torque, allowing the installer to configure motor force according to the characteristics of the swing gate.

Force settings should always be adjusted together with proper safety-device testing.

Self-Learning Programming

The SOMFY CB 230 RTS control unit supports self-learning gate-travel programming.

Somfy also provides additional advanced settings through the controller for professional commissioning of the automatic gate system.

Resistance to Wind & Forced Opening

The IXENGO JL uses a non-reversible mechanical system designed to provide strong holding resistance when the gate is closed.

This helps resist wind pressure and attempted forced opening, although the requirement for an additional electric lock should be determined according to gate dimensions, wind exposure and project security requirements.

Manual Release with Individual Key

The SOMFY IXENGO JL includes an individual-key manual release mechanism.

The actuator can therefore be disengaged to allow manual gate movement during a power failure, emergency or maintenance.

SOMFY CB 230 RTS Control Board

A double-leaf IXENGO JL system can use the SOMFY CB 230 RTS control board to operate both 230V swing gate actuators.

The control board manages gate movement, SOMFY RTS remote controls, operating settings and compatible safety accessories.

SOMFY RTS Remote Control

The CB 230 RTS radio system operates at 433.42 MHz and supports up to 128 memorisable radio channels.

Additional compatible SOMFY RTS transmitters can therefore be added for authorised family members, employees, security staff or property-management users.

Photocell Safety Sensors

Compatible SOMFY photocells can be installed around the automatic gate entrance to detect vehicles, pedestrians and obstacles.

For large swing gates, correct photocell placement is especially important because each gate leaf moves through a substantial operating area.

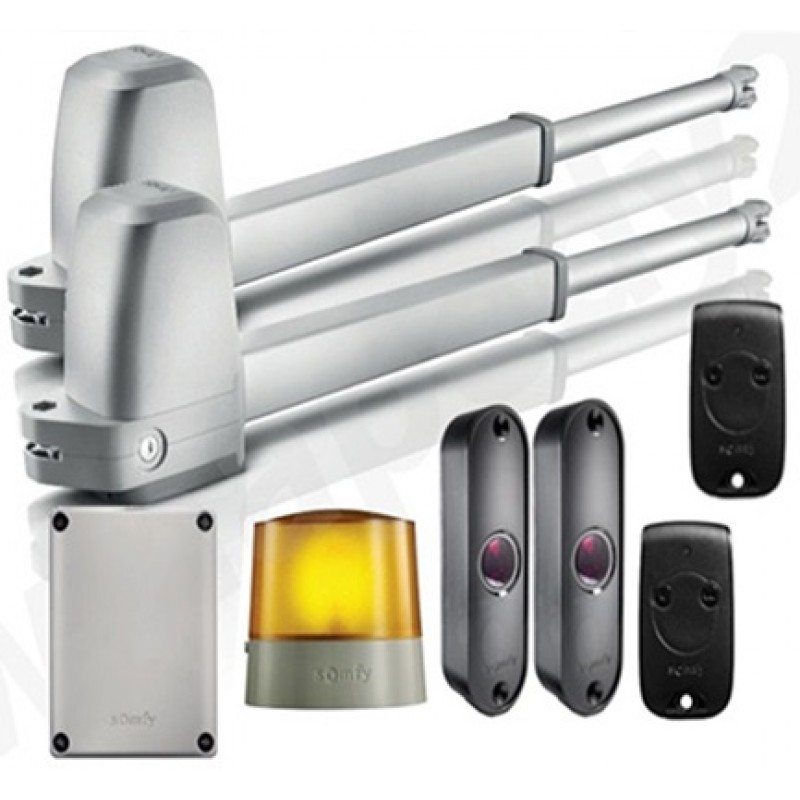

SOMFY IXENGO JL Complete Kit Includes

• 2 × SOMFY IXENGO JL 230V Swing Gate Motors
• 1 × SOMFY CB 230 RTS Control Board
• 2 × SOMFY KEYTIS RTS Remote Controls
• 1 × SOMFY Warning / Flashing Light
• 1 × Pair SOMFY Master Pro Bitech Photocell Sensors
• 1 × Push Button

Access Control Integration

The SOMFY IXENGO JL automation system can be integrated with compatible external access-control equipment through suitable controller inputs.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access control
• UHF long-range vehicle readers
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

Residential & Commercial Applications

• Large villa swing gates
• Residential compounds
• Apartment entrances
• Commercial properties
• Office entrances
• Private parking gates
• Large double-leaf swing gates
• Automatic vehicle entrances

Professional SOMFY IXENGO JL Installation

Professional installation is recommended for the SOMFY IXENGO JL. Before installation, each gate leaf should move freely and smoothly by hand and the hinges should be correctly aligned.

The gate dimensions, pillar geometry, actuator brackets, opening angle, mechanical stops, control-board settings and photocell positions should be correctly calculated, installed and tested.

SOMFY IXENGO JL Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies SOMFY IXENGO JL 230V swing gate motors in UAE for large residential and commercial automatic swing gate applications.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
