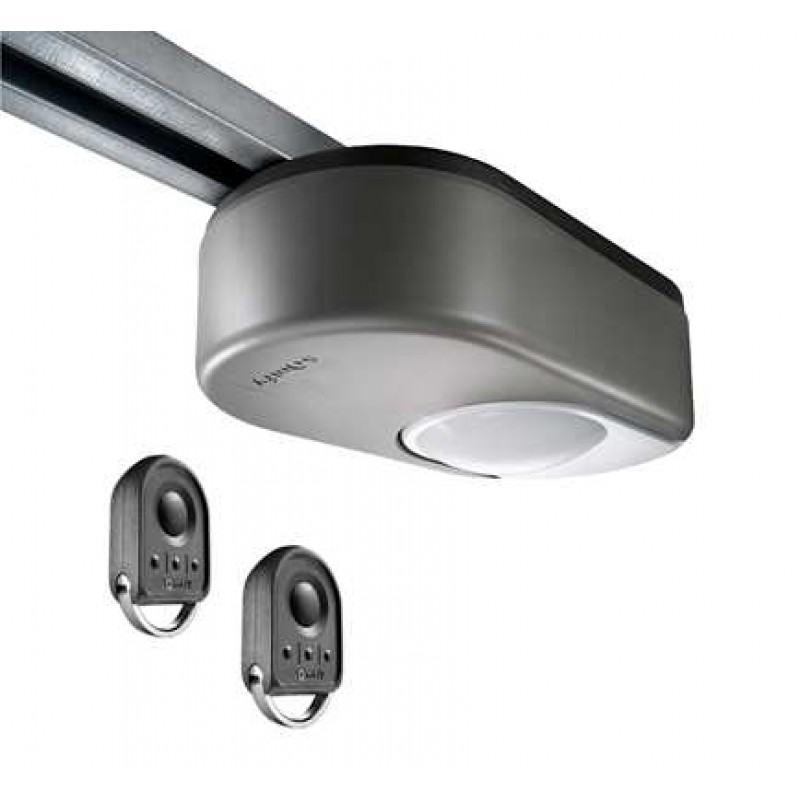

SOMFY DEXXO PRO 1000 3S RTS Garage Door Opener UAE
Price 1,300 AEDIn Stock
The SOMFY DEXXO PRO 1000 3S RTS Garage Door Opener is a powerful and reliable automatic garage door motor designed for sectional, up-and-over and compatible lateral-opening garage doors with a maximum surface area of up to 15 m².
The DEXXO PRO 1000 provides a maximum traction force of 1000N and operates at speeds up to 18 cm/s. Its 24V DC gearmotor is powered from a standard 230V AC mains supply and provides smooth, quiet and controlled automatic garage door movement.
Equipped with SOMFY 3S electronic control and RTS 433.42 MHz radio technology, the DEXXO PRO 1000 offers obstacle detection, partial opening, programmable settings, cycle counting, optional battery backup and support for up to 32 radio channels.
Key Features
- Original SOMFY DEXXO PRO garage door opener
- Model DEXXO PRO 1000 3S RTS
- Maximum traction force 1000N
- Suitable for garage doors up to 15 m²
- Suitable for sectional garage doors
- Suitable for up-and-over garage doors
- Compatible with suitable lateral-opening doors
- 230V AC 50Hz mains supply
- 24V DC gearmotor
- Maximum speed 18 cm/s
- Up to 20 cycles/day with standard rail
- Up to 50 cycles/day with high-performance rail
- SOMFY RTS 433.42 MHz radio technology
- Up to 32 memorisable radio channels
- Obstacle detection
- Partial opening / ventilation function
- Adjustable closing approach speed
- Optional battery backup
- Built-in garage lighting
- Independent external light control up to 500W
- Cycle counter for maintenance
- Minimum lintel headroom approximately 35 mm
Technical Specifications
| Brand | SOMFY |
| Series | DEXXO PRO |
| Model | DEXXO PRO 1000 3S RTS |
| Product Type | Automatic Garage Door Opener |
| Maximum Door Area | Up to 15 m² |
| Peak Traction Force | 1000N |
| Starting Force | 800N |
| Mains Supply | 230V AC, 50Hz |
| Gearmotor Supply | 24V DC |
| Maximum Power Consumption | 600W Including 500W External Lighting |
| Standby Consumption | 5W |
| Maximum Speed | 18 cm/s |
| Standard Rail Usage | Up to 20 Cycles / Day |
| High-Performance Rail Usage | Up to 50 Cycles / Day |
| Radio Technology | SOMFY RTS |
| Radio Frequency | 433.42 MHz |
| Remote Capacity | 32 Channels |
| Programming Interface | Buttons + LCD Display |
| Minimum Headroom | 35 mm |
| Built-In Lighting | 230V / 40W Max. / E14 |
| External Lighting | 230V / 500W Max. |
| Operating Temperature | -20°C to +60°C |
SOMFY DEXXO PRO 1000N Garage Door Motor
The SOMFY DEXXO PRO 1000 provides up to 1000N peak traction force, making it suitable for larger residential garage doors where a stronger automatic opener is required.
The correct motor should be selected according to the door size, weight, mechanical balance, rail type and expected number of daily operating cycles.
Garage Doors Up to 15m²
The DEXXO PRO 1000 is designed for compatible garage doors with a maximum area of approximately 15 square metres.
Before automation, the garage door should be correctly balanced and move smoothly by hand without excessive resistance.
Sectional Garage Door Opener
The SOMFY DEXXO PRO 1000 can be used with compatible sectional garage doors.
Sectional doors are one of the most common applications for ceiling-mounted garage door operators in villas and residential properties.
Up-and-Over Garage Doors
The DEXXO PRO 1000 is also suitable for compatible up-and-over garage doors when the appropriate installation hardware and rail configuration are used.
1000N Peak Traction Force
The DEXXO PRO 1000 provides a maximum traction force of 1000N and a starting force of approximately 800N.
This provides dependable pulling power for compatible medium and large residential garage doors.
18 cm/s Maximum Opening Speed
The SOMFY DEXXO PRO 1000 can operate at speeds up to approximately 18 cm per second.
Actual complete opening time depends on door travel, rail length, programmed speed and mechanical condition.
24V DC Gearmotor
The DEXXO PRO uses a 24V DC gearmotor supplied through its electronic control system from a standard 230V AC mains connection.
The low-voltage motor enables smooth electronic movement management and obstacle detection.
SOMFY 3S Control System
The DEXXO PRO 1000 uses SOMFY's 3S electronic control system for simple commissioning and advanced configuration.
The controller provides programmable operating parameters, diagnostic information and automatic door-travel learning.
Obstacle Detection
The SOMFY DEXXO PRO 1000 incorporates obstacle detection to help protect the garage door system during automatic operation.
The sensitivity can be configured during commissioning according to the installation requirements.
Partial Opening / Ventilation
The DEXXO PRO supports a partial opening function, allowing the garage door to open only partially for ventilation or convenient pedestrian access where the door configuration permits.
SOMFY RTS Remote Control
The integrated SOMFY RTS radio receiver operates at 433.42 MHz.
Up to 32 radio channels can be memorised, allowing compatible SOMFY RTS remote controls and radio wall controls to be programmed into the system.
Optional Backup Battery
A compatible backup battery can be installed to provide limited automatic garage door operation during a mains power failure.
Actual backup performance depends on the battery condition, garage door size and mechanical resistance.
Built-In Garage Lighting
The DEXXO PRO provides an integrated lighting output rated up to 230V / 40W with an E14 socket.
The light can illuminate the garage during automatic door operation.
External Lighting Control up to 500W
The SOMFY DEXXO PRO can independently control a separate external light circuit up to approximately 500W.
This can be useful for driveway, garage or entrance lighting triggered through the automation system.
Standard, Belt & High-Performance Rails
SOMFY offers several compatible transmission rail options for the DEXXO PRO series.
- Standard chain rail
- Silent belt rail
- High-performance chain rail
Rail selection depends on the required door travel, noise requirements and operating frequency.
20 or 50 Cycles Per Day
With a standard rail, the DEXXO PRO 1000 is designed for up to approximately 20 operations per day.
With the high-performance rail, Somfy specifies up to approximately 50 operations per day.
Long-Term Cycle Testing
SOMFY specifies the standard chain and belt rails as tested for approximately 36,500 cycles.
The high-performance rail is tested for approximately 90,000 cycles, making it the better choice for higher-use garage door installations.
Cycle Counter for Maintenance
The DEXXO PRO controller incorporates a cycle counter that helps professional installers monitor operation and plan preventive garage door maintenance.
35 mm Minimum Headroom
The DEXXO PRO requires only approximately 35 mm minimum height under the lintel, allowing installation in garages with limited overhead space when the door and rail configuration are suitable.

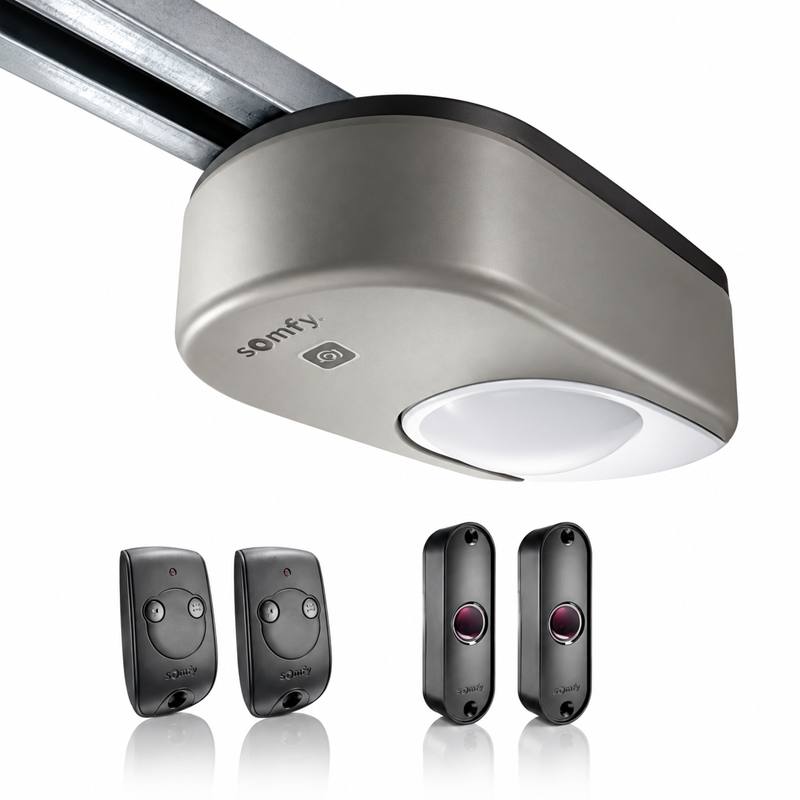

SOMFY DEXXO PRO 1000 Kit Includes
- 1 × SOMFY DEXXO PRO 1000 3S RTS Motor
- 2 × SOMFY Remote Controls
- 1 × Pair SOMFY Master Pro Bitech Photocell Sensors
- 1 × SOMFY 3.5 Metre Garage Door Rail
- 1 × Push Button
Residential Garage Door Applications
- Villa sectional garage doors
- Residential overhead garage doors
- Up-and-over garage doors
- Private parking garages
- Townhouse garages
- Large residential garage doors
- Compatible lateral-opening garage doors
Professional SOMFY DEXXO PRO Installation
Professional installation is recommended for the SOMFY DEXXO PRO 1000. The garage door should first be checked for correct balance, smooth manual movement and proper spring operation.
The rail, motor head, door attachment, travel positions, obstacle detection, photocells and remote controls should all be correctly installed, programmed and tested before the system is placed into normal service.
