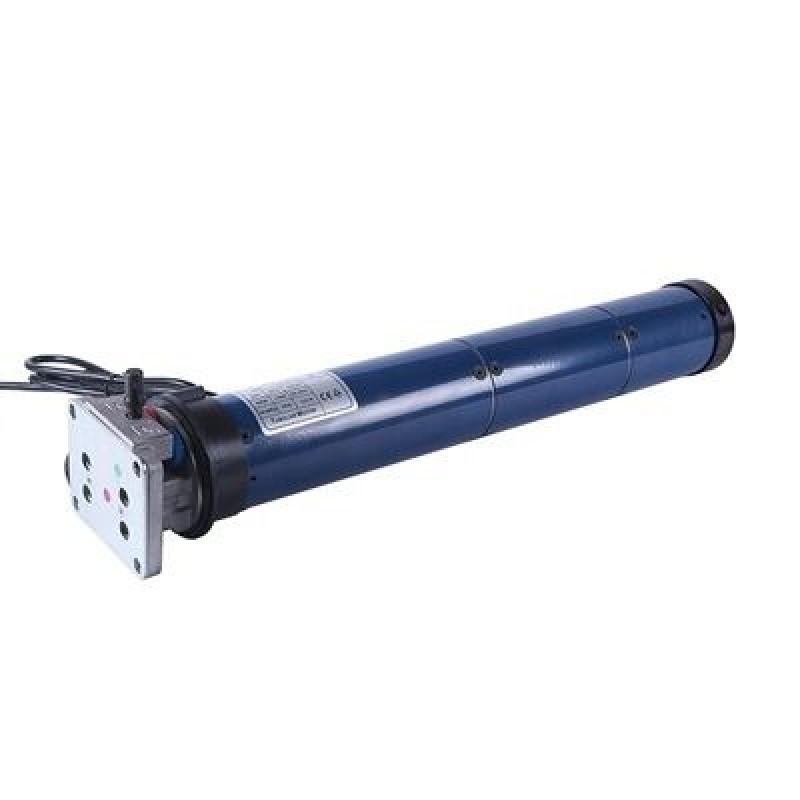

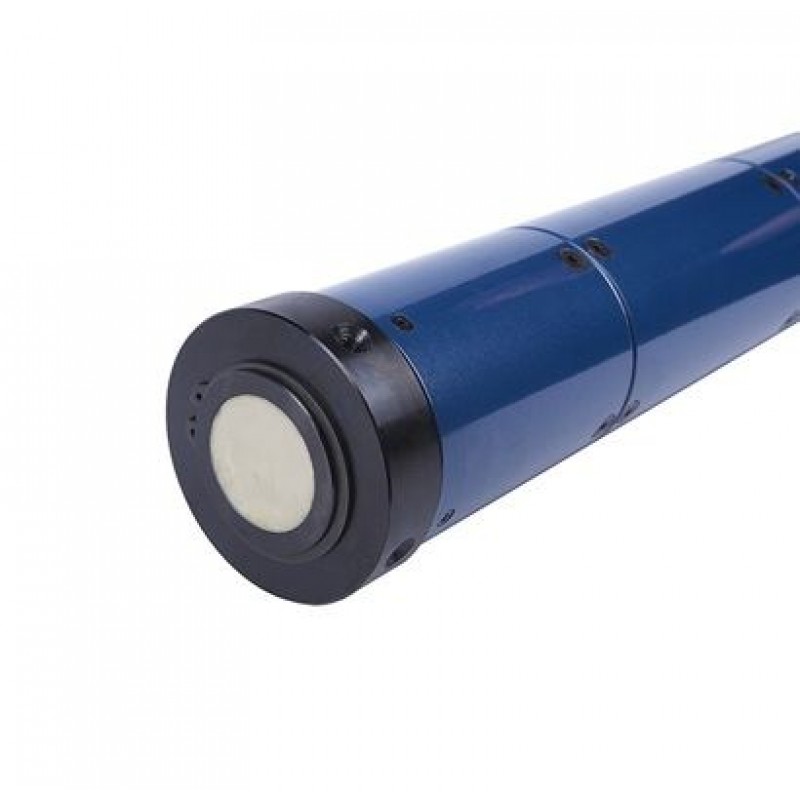

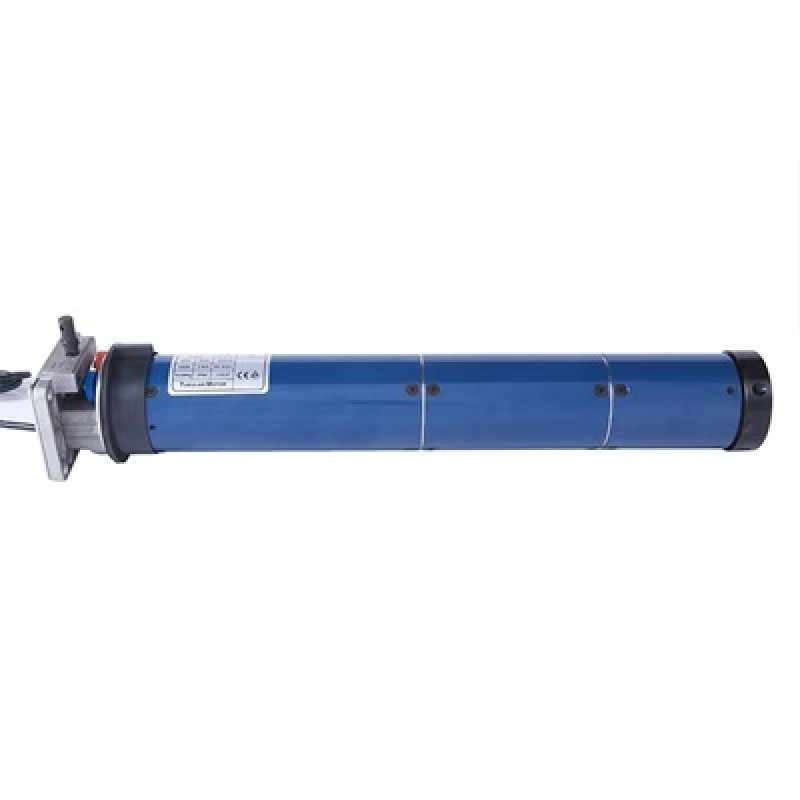

Rolling Shutter Tubular Motor 92mm 170Nm UAE

The Rolling Shutter Tubular Motor 92mm 170Nm is a heavy-duty electric motor designed for automatic rolling shutters and compatible roller shutter systems. With a large 92mm motor diameter and rated torque of 170Nm, it provides powerful and reliable operation for larger rolling shutter applications.

The motor operates on 230V AC / 50Hz and delivers 830W rated power with a rated current of 3.60A and rotational speed of 16rpm. It features IP44 protection, Class H insulation and an S2 4-minute operating duty.

Its tubular construction allows the motor to be installed inside a compatible roller tube, providing a compact and professional automatic shutter system while delivering high torque for demanding applications.

Key Features

• Heavy-duty 92mm tubular motor
• 170Nm rated torque
• 230V AC operation
• 50Hz rated frequency
• 830W rated power input
• 3.60A rated current
• 16rpm rated speed
• S2 4-minute running time
• IP44 protection rating
• Class H insulation
• High-torque tubular motor design
• Internal roller tube installation
• Suitable for automatic rolling shutters
• Suitable for commercial shutter applications
• Suitable for new and replacement installations

Technical Specifications

92mm Rolling Shutter Tubular Motor

The motor features a large 92mm tubular design for installation inside a compatible rolling shutter roller tube.

The larger motor body is designed for applications requiring substantially higher power and torque than smaller 35mm, 45mm and 59mm tubular motors.

170Nm High-Torque Tubular Motor

With a rated torque of 170Nm, this motor provides strong rotational force for compatible heavy rolling shutter systems.

The correct motor should always be selected according to the actual shutter weight, shutter dimensions, roller tube diameter and complete mechanical configuration.

230V AC Rolling Shutter Motor

The tubular motor operates from a 230V AC / 50Hz electrical supply.

Professional electrical installation is recommended to ensure correct directional wiring, electrical protection and motor control.

830W Heavy-Duty Tubular Motor

The 92mm tubular motor has a rated power input of 830W and rated current of approximately 3.60A.

The electrical supply, cable size, controller and protective equipment should be correctly selected according to the motor specifications.

16rpm Rolling Shutter Motor

The motor provides a rated rotational speed of 16rpm for opening and closing compatible automatic rolling shutters.

Actual shutter movement speed will depend on the roller tube diameter and complete mechanical arrangement.

S2 4-Minute Duty Rating

The motor has an S2 4-minute duty rating, meaning it is intended for short-duration shutter operation rather than continuous running.

If repeated operation activates thermal protection, the motor should be allowed sufficient cooling time before further operation.

IP44 Tubular Motor

The motor has an IP44 protection rating. The complete installation should still provide appropriate protection for the motor, wiring and electrical connections.

Class H Motor Insulation

The 92mm 170Nm tubular motor uses Class H insulation for the motor winding system.

Correct installation and operation within the specified duty cycle are important for reliable long-term motor performance.

Motor Installed Inside Roller Tube

Unlike an external rolling shutter side motor, the tubular motor is installed inside a compatible roller tube.

This provides a compact shutter automation system while keeping the motor largely concealed inside the roller assembly.

Heavy-Duty Tubular Motor for Rolling Shutters

The combination of a 92mm motor diameter, 170Nm torque and 830W power makes this model suitable for compatible rolling shutter applications requiring a high-torque internal motor.

Motor suitability should always be confirmed by calculating the actual shutter load and checking the roller tube dimensions.

Commercial Rolling Shutter Tubular Motor

The 92mm 170Nm motor is suitable for compatible commercial rolling shutters where a high-torque internal tubular motor is required.

Applications can include shops, showrooms, commercial buildings, storage facilities, workshops and other suitable roller shutter installations.

Tubular Motor for Shop Rolling Shutters

The motor can automate compatible shop rolling shutter doors while remaining installed inside the roller tube.

The shutter weight and roller tube dimensions should be checked before installation to confirm motor and adapter compatibility.

Tubular Motor for Garage Rolling Shutters

The 170Nm motor can also be used for compatible garage rolling shutter doors requiring a high-torque tubular motor.

The complete shutter load should be calculated before selecting the motor.

Rolling Shutter Push Button Control

The motor can be operated using a compatible UP / STOP / DOWN push button or rolling shutter motor controller.

This provides convenient local opening, stopping and closing of the automatic rolling shutter.

Rolling Shutter Remote Control

A compatible rolling shutter receiver or motor controller can be installed to provide wireless remote-control operation.

Users can then open, stop and close the shutter using compatible remote transmitters.

Smart Rolling Shutter Control

Where compatible equipment is used, the tubular motor can also be integrated with a suitable smart rolling shutter controller.

The selected controller must support the voltage, current and directional wiring requirements of the motor.

92mm vs 59mm Tubular Motor

The 92mm tubular motor is physically larger than a 59mm tubular motor and is designed for compatible roller tubes requiring a larger internal motor.

Motor selection should be based on required torque, roller tube diameter, shutter weight and mechanical configuration rather than motor diameter alone.

92mm 170Nm Tubular Motor Applications

• Automatic rolling shutters
• Commercial rolling shutters
• Shop roller shutters
• Garage rolling shutters
• Showroom shutters
• Workshop roller shutters
• Storage-area shutters
• Commercial building shutters
• High-torque tubular motor applications
• Replacement tubular motors

Professional Tubular Motor Installation

Professional installation is recommended to ensure correct motor sizing, roller tube compatibility, adapter selection, electrical wiring and limit adjustment.

Before selecting the 92mm 170Nm motor, the actual rolling shutter weight and roller tube dimensions should be checked to confirm compatibility.

Rolling Shutter Tubular Motor 92mm 170Nm Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 92mm 170Nm tubular motors in UAE for compatible commercial and heavy-duty automatic rolling shutter applications.

Supply and installation services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
