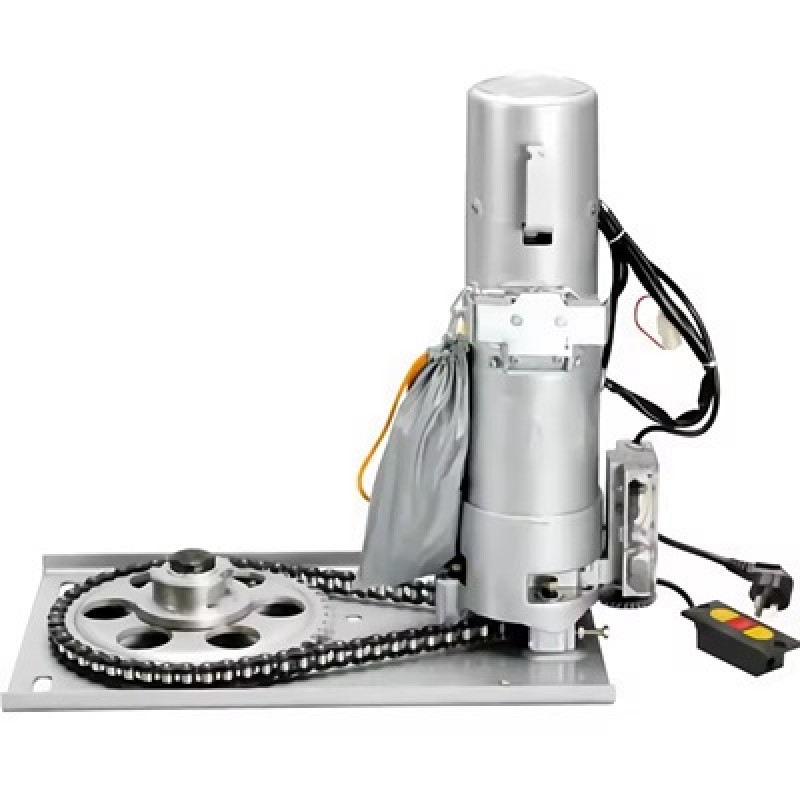

Rolling Shutter Side Motor 3 Phase 2000 KG UAE

The Rolling Shutter Side Motor 3 Phase 2000 KG is a powerful heavy-duty automatic shutter motor designed for large commercial and industrial rolling shutter doors. With a maximum lifting capacity of up to 2000 KG and rated output torque of 2450Nm, it provides reliable operation for demanding industrial roller shutter applications.

The motor operates on a 380V AC / 50Hz three-phase power supply and provides 1350W input power, 4.1A rated current and an output speed of 3.6 rpm. It supports compatible rolling shutter installations with a maximum lifting height of up to 12 metres.

Designed for heavy-duty applications, this 3-phase rolling shutter motor is suitable for factories, warehouses, industrial buildings, logistics centres, workshops, loading areas and large commercial entrances requiring powerful and dependable shutter automation.

Key Features

• Heavy-duty rolling shutter side motor
• Maximum lifting capacity up to 2000 KG
• 380V AC three-phase operation
• 2450Nm rated output torque
• 1350W input power
• 4.1A rated current
• 3.6 rpm rated output speed
• Maximum lifting height up to 12 metres
• 15-minute continuous working time
• Operating temperature from -20°C to +50°C
• Overheat protection
• Overload protection
• Manual operation during power failure
• Accurate limit switch control
• Low-noise operation
• Anti-fall protection
• Low-maintenance design
• Suitable for industrial rolling shutters

Technical Specifications

2000 KG Rolling Shutter Side Motor

The motor provides a maximum lifting capacity of up to 2000 KG, making it suitable for compatible large and heavy industrial rolling shutter doors.

The actual shutter curtain weight, dimensions, shaft arrangement and complete mechanical configuration should always be checked before selecting the motor.

3 Phase Rolling Shutter Motor

Unlike smaller single-phase shutter motors, this heavy-duty model operates from a 380V AC three-phase electrical supply.

Three-phase operation makes the motor suitable for compatible industrial and commercial locations where 380V three-phase power is available.

380V Industrial Rolling Shutter Motor

The 2000 KG motor requires a 380V AC / 50Hz electrical supply and should be installed with suitable three-phase control and protection equipment.

Professional electrical installation is strongly recommended to ensure correct phase connections, motor protection, control wiring and safe operation.

2450Nm Heavy-Duty Shutter Motor

With a rated output torque of 2450Nm, this motor provides powerful mechanical performance for demanding automatic rolling shutter applications.

The high torque makes it particularly suitable for large industrial shutters where lower-capacity motors may not provide sufficient lifting force.

1350W Rolling Shutter Motor

The motor has a rated input power of 1350W and rated current of approximately 4.1A.

The electrical supply, cables, circuit protection, contactors and shutter controller should be correctly selected according to the motor specifications.

3.6 RPM Output Speed

The motor operates at a rated output speed of approximately 3.6 rpm.

Actual shutter opening and closing speed will also depend on the shaft diameter and complete mechanical configuration of the rolling shutter.

Up to 12 Metres Lifting Height

The 2000 KG rolling shutter motor supports a maximum lifting height of up to approximately 12 metres for compatible installations.

This makes it suitable for large industrial entrances and high rolling shutter openings where correctly matched to the shutter system.

15-Minute Continuous Working Time

The motor has a specified continuous working time of up to 15 minutes.

The motor should always be operated within its specified duty requirements to help maintain reliable performance and long service life.

Overheat & Overload Protection

The rolling shutter motor includes overheat and overload protection to help protect the motor during abnormal operating conditions.

Correct motor sizing remains essential because excessive shutter weight or mechanical resistance can affect motor performance and service life.

Manual Operation During Power Failure

The side motor provides a manual operating method that can be used when normal electrical power is unavailable.

This allows the compatible rolling shutter to be manually operated during an emergency or power failure.

Accurate Limit Switch Control

The motor incorporates an adjustable limit switch system for setting the fully open and fully closed positions of the rolling shutter.

Correct limit adjustment helps the motor stop automatically at the required upper and lower positions.

Anti-Fall Protection

The rolling shutter motor system includes an anti-fall protection device for compatible installations.

All mechanical and electrical safety components should be correctly installed, adjusted and maintained as part of the complete rolling shutter system.

Industrial Rolling Shutter Motor

The 2000 KG three-phase motor is designed for compatible heavy industrial rolling shutter doors requiring high lifting capacity and powerful output torque.

Typical applications include factories, warehouses, logistics centres, workshops, industrial buildings and large commercial entrances.

Rolling Shutter Motor for Factories

Large factory entrances often require powerful rolling shutter motors capable of handling heavy shutter curtains.

With up to 2000 KG lifting capacity and 2450Nm rated torque, this model provides a heavy-duty solution for compatible factory rolling shutters.

Rolling Shutter Motor for Warehouses

The 2000 KG side motor is suitable for compatible large warehouse roller shutters requiring a heavy-duty three-phase motor.

The actual shutter weight, dimensions and operating frequency should be checked before selecting the motor.

Rolling Shutter Motor for Logistics Centres

The high lifting capacity and 12-metre maximum lifting height make this motor suitable for compatible large shutter entrances at logistics centres and industrial storage facilities.

Rolling Shutter Motor for Workshops

The motor can be installed on compatible heavy workshop and industrial roller shutter doors requiring reliable automatic opening and closing.

Rolling Shutter Motor for Large Commercial Buildings

The 2000 KG motor can also be used for compatible heavy rolling shutters installed at shopping centres, commercial buildings, storage facilities and large service entrances.

Rolling Shutter Push Button Control

The motor can be connected to a compatible OPEN / STOP / CLOSE control station designed for three-phase rolling shutter motor operation.

This provides convenient local control for opening, stopping and closing the automatic rolling shutter.

Rolling Shutter Remote Control

Wireless remote operation can be added using a compatible receiver and three-phase rolling shutter control panel.

The receiver should provide control signals to the appropriate motor control equipment rather than directly switching the three-phase motor unless specifically designed for that purpose.

2000 KG Rolling Shutter Motor Replacement

The motor can be used as a replacement for a compatible existing heavy-duty three-phase rolling shutter motor.

Before replacement, check the existing motor's lifting capacity, supply voltage, phase configuration, power, torque, current, mounting arrangement, shaft configuration and control system.

2000 KG Rolling Shutter Motor Applications

• Industrial rolling shutter doors
• Factory rolling shutters
• Warehouse roller shutters
• Logistics centre shutters
• Heavy workshop shutters
• Industrial storage facilities
• Loading area shutters
• Large commercial entrances
• Shopping centre service entrances
• Manufacturing facilities
• Heavy-duty roller doors
• Replacement three-phase shutter motors

1500 KG vs 2000 KG Rolling Shutter Motor

The 2000 KG rolling shutter motor is designed for heavier shutter applications than a 1500 KG side motor and provides a maximum rated lifting capacity of up to 2000 KG.

This model also operates from a 380V three-phase supply, so the available electrical supply and control equipment must be checked before installation.

Professional 3 Phase Rolling Shutter Motor Installation

Professional installation is recommended to ensure correct motor sizing, mounting, shaft alignment, three-phase electrical wiring, motor protection, limit adjustment and safety setup.

Before selecting the 2000 KG motor, the actual rolling shutter weight, dimensions, shaft configuration and available electrical supply should be checked to confirm compatibility.

3 Phase Rolling Shutter Motor 2000 KG Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 2000 KG three-phase rolling shutter motors in UAE for heavy commercial and industrial roller shutter applications.

Supply, installation and replacement services are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
