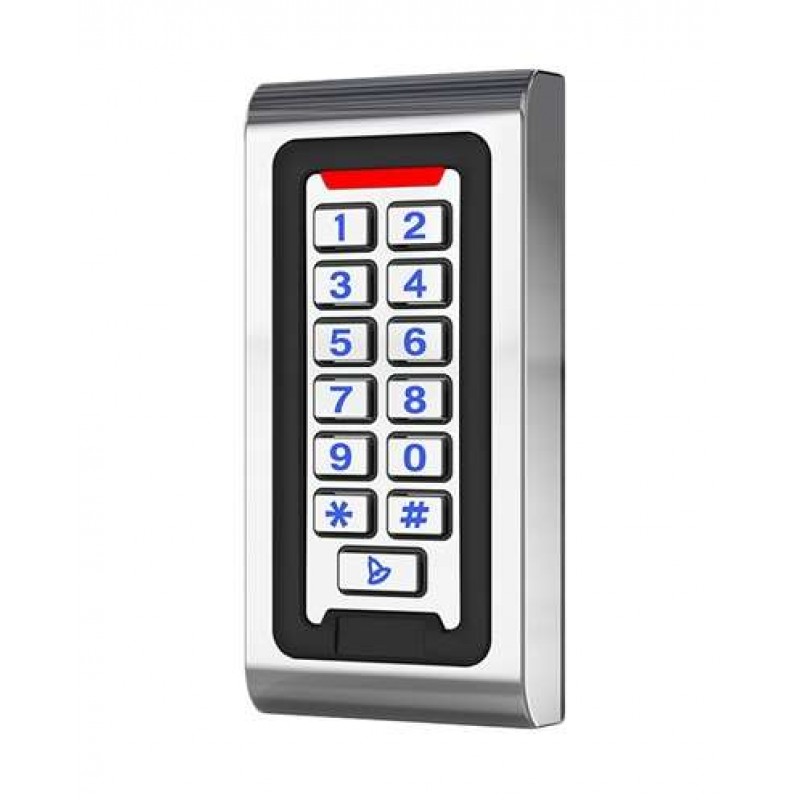

Standalone RFID Access Control Reader IP68 UAE
Price 250 AEDIn Stock
The Standalone RFID Access Control Reader is a professional metal door access controller designed for secure entry management in residential, commercial and industrial properties. The system supports up to 2000 users and allows access using an RFID card, PIN password, or card + PIN combination.
Designed as an all-in-one standalone access controller, the unit can operate without requiring a separate network access control panel for basic single-door applications. It supports Wiegand 26 input/output, electric lock connection, exit button, doorbell interface and alarm functions.

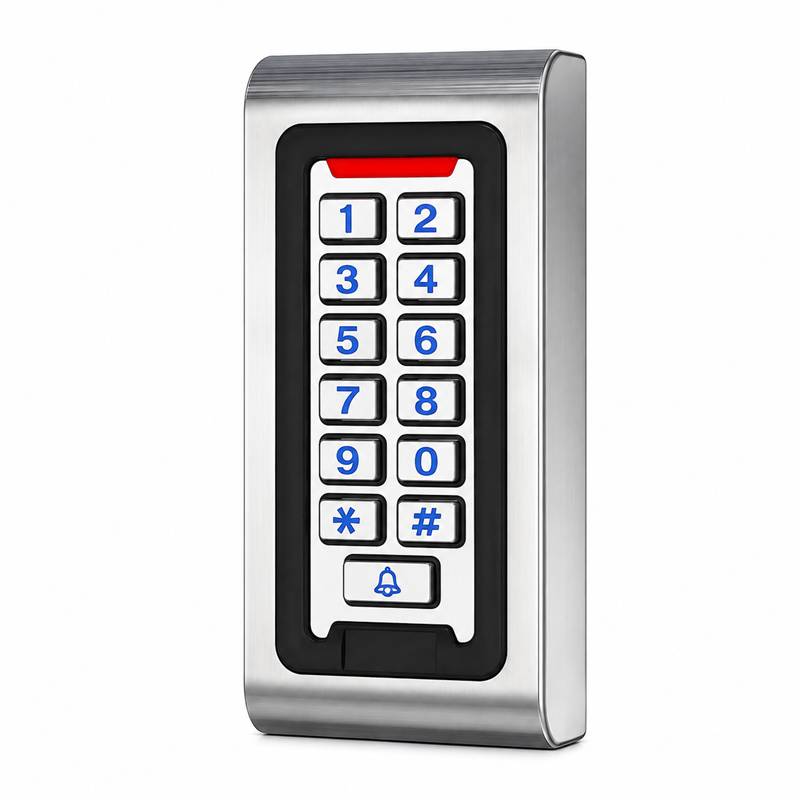

The AAM-S601 / S601-W series features a durable metal housing, illuminated keypad and anti-tamper functions. The S601-W version provides IP68 waterproof protection, making it suitable for outdoor door and gate access control installations.
Key Features
- Standalone RFID access control system
- Metal anti-vandal housing
- Supports up to 2000 users
- RFID card access
- PIN password access
- Card + PIN verification
- EM or MF card support depending on version
- 5–8 cm card reading distance
- Digital illuminated keypad
- 12V DC operating voltage
- Wiegand 26 input/output
- Direct electric lock connection
- Exit push button connection
- Doorbell interface
- Door magnetic alarm support
- Anti-tamper alarm function
- Adjustable door opening time
- IP68 waterproof S601-W version available
- Suitable for indoor and outdoor access control
Technical Specifications
| Product Type | Standalone RFID Access Controller |
| Model | AAM-S601 / S601-W |
| User Capacity | Up to 2000 Users |
| Authentication | Card / PIN / Card + PIN |
| Card Type | EM / MF Depending on Version |
| Card Reading Distance | 5–8 cm |
| Operating Voltage | DC 12V ±10% |
| Standby Current | ≤30mA |
| Lock Output | ≤3A |
| Alarm Output | ≤20A |
| Wiegand Interface | Wiegand 26 Input / Output |
| Door Opening Time | 0–99 Seconds Adjustable |
| Operating Temperature | -45°C to +60°C |
| Operating Humidity | 10%–90% |
| Waterproof Rating | S601: Non-Waterproof / S601-W: IP68 |
| Dimensions | 120 × 56 × 18 mm |
Standalone RFID Door Access Control
This standalone RFID access controller provides a simple and reliable solution for controlling access to a single door, gate or restricted entrance.
User information and access programming are handled directly by the controller, making it suitable for installations where a complete network access control system is not required.
2000 User Capacity
The access controller supports up to 2000 users, providing sufficient capacity for villas, offices, apartment buildings, warehouses, factories and other commercial properties.
Users can be added or removed according to the security requirements of the installation.
RFID Card Access
Authorised users can unlock the connected door by presenting a compatible RFID card to the reader.
The controller provides a card reading distance of approximately 5 to 8 cm, allowing fast contactless access.
PIN Password Access
The built-in digital keypad allows authorised users to enter using a programmed PIN password without requiring an RFID card.
PIN access is useful for offices, staff entrances, residential buildings and other locations where keyless door entry is required.
Card + PIN Security
For applications requiring additional verification, the controller can be configured for RFID card + PIN access.
Requiring two credentials provides an additional layer of access security compared with card-only or PIN-only operation.
IP68 Waterproof Access Control
The S601-W version provides an IP68-rated enclosure designed for suitable outdoor access control installations.
This makes the waterproof version suitable for external doors, pedestrian gates, villa entrances, commercial entrances and other exposed access points.
Metal Anti-Vandal Housing
The controller features a strong metal structure designed for durable access control installations.
Its compact metal construction makes it suitable for locations requiring a more robust alternative to standard plastic RFID keypads.
Digital Backlit Keypad
The integrated illuminated keypad provides convenient PIN entry and system programming in both bright and low-light environments.
The all-in-one design combines the RFID reader and keypad into one compact access control device.
Wiegand 26 Input & Output
The controller supports Wiegand 26 input and output, allowing integration with compatible external RFID readers and access control equipment.
This provides greater flexibility when designing or expanding a door access control installation.
Electric Lock Connection
The standalone access controller can be connected to compatible electric locking devices through the appropriate access control power and relay configuration.
- Electromagnetic locks
- Electric strike locks
- Electric bolt locks
- Electric rim locks
- Compatible automatic door systems
Exit Push Button Connection
An exit push button can be connected to provide convenient door release from the secure side of the entrance.
This creates a complete basic access system with controlled RFID or PIN entry and push-button exit.
Doorbell Interface
The controller provides a dedicated doorbell button and interface that can be connected to a compatible external bell.
This is useful for residential and office entrances where visitors need to request access.
Door Magnetic Alarm
The controller supports door magnetic monitoring and alarm functions when connected to compatible equipment.
This can help identify abnormal door conditions according to the selected installation and programming configuration.
Anti-Tamper Protection
An anti-tamper alarm function provides additional security against unauthorised removal or interference with the access controller.
This is especially useful when the keypad is installed at an external or publicly accessible entrance.
Adjustable Door Unlock Time
The door relay time can be adjusted from 0 to 99 seconds, allowing the installer to configure how long the connected electric lock remains released after valid access.
The appropriate unlock time depends on the type of door, electric lock and application.
Complete Standalone Access Control System
A complete single-door standalone RFID access control installation can include:
- Standalone RFID access control reader
- 12V access control power supply
- Electromagnetic or electric lock
- Exit push button
- RFID access cards or key fobs
- Emergency break glass unit where required
- Backup battery where required
Suitable Applications
- Villa entrance doors
- Residential buildings
- Apartment entrances
- Office doors
- Staff entrances
- Warehouses
- Factories
- Commercial buildings
- Schools
- Clinics
- Server rooms
- Storage rooms
- Restricted areas
- Pedestrian gates
Professional Access Control Installation
Professional installation is recommended to ensure correct power supply, electric lock wiring, exit button connection and controller programming.
The complete access system should be tested after installation to confirm correct card recognition, PIN access, lock release, exit operation and security functions.
Standalone RFID Access Control Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies standalone RFID access control readers in UAE for residential, commercial and industrial door security applications.
Supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
