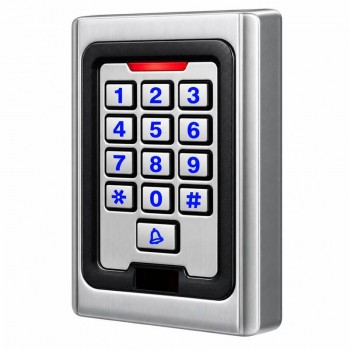

K16EM-W Waterproof RFID Access Control Keypad UAE
Price 199 AEDIn Stock
The K16EM-W Waterproof RFID Access Control Keypad is a professional standalone door access controller designed for residential, commercial and industrial security applications. It combines RFID card reading, PIN code access and Wiegand reader functionality in one compact waterproof keypad.
The K16EM-W supports up to 2,000 users and provides multiple access methods including RFID card, PIN code and Card + PIN. It can operate as a standalone access controller or as a reader connected to a compatible external access control system.
With an IP65 waterproof enclosure, WG26/WG34 support and an operating temperature from -45°C to +60°C, the K16EM-W is suitable for indoor and outdoor access control installations.
Key Features
- K16EM-W standalone RFID access control keypad
- IP65 waterproof protection
- Supports up to 2,000 users
- Compatible with EM RFID cards
- PIN code access
- RFID card access
- Card + PIN access mode
- Standalone access control mode
- Pure reader mode
- WG26 / WG34 selectable reader mode
- Relay toggle mode
- 3–6 cm RFID card reading range
- DC 12V ±10% operating voltage
- Adjustable door opening time from 0–99 seconds
- Electric lock output up to 1A
- Short-circuit protection
- Suitable for indoor and outdoor installation
Technical Specifications
| Model | K16EM-W |
| Product Type | Standalone RFID Access Control Keypad |
| Protection Rating | IP65 Waterproof |
| User Capacity | 2,000 Users |
| Card Type | EM RFID Card |
| Access Methods | PIN / Card / PIN + Card |
| Working Voltage | DC 12V ±10% |
| Standby Current | ≤30mA |
| RFID Reading Range | 3–6 cm |
| Electric Lock Output | ≤1A |
| Wiegand | WG26 / WG34 |
| Operating Modes | Standalone / Pure Reader / Relay Toggle |
| Door Opening Time | 0–99 Seconds Adjustable |
| Short-Circuit Protection | ≤100µs |
| Operating Temperature | -45°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Dimensions | 119 × 78 × 22 mm |
IP65 Waterproof Access Control Keypad
The K16EM-W features an IP65 waterproof enclosure designed to protect the access control keypad against dust and water exposure during correctly installed outdoor applications.
This makes the unit suitable for entrance doors, gates, offices, warehouses, villas and other indoor or outdoor access control locations.
2000 User Access Control System
The K16EM-W supports up to 2,000 users, providing sufficient capacity for residential buildings, offices, warehouses, commercial properties and staff access applications.
Users can be configured according to the required RFID card or PIN access method.
RFID EM Card Access
The K16EM-W supports compatible EM RFID cards for convenient contactless access.
An authorised user presents a registered card to the keypad and the access controller activates the connected electronic door lock according to the programmed settings.
PIN Code Access
The integrated numerical keypad allows authorised users to gain access using a programmed PIN code.
PIN access provides convenient keyless entry for offices, staff entrances, villas and other controlled-access locations.
Card + PIN Access
The K16EM-W also supports Card + PIN authentication for applications requiring an additional verification step.
This allows the system to require both an authorised RFID credential and the correct PIN according to the programmed configuration.
3–6cm RFID Reading Range
The K16EM-W provides an RFID reading distance of approximately 3 to 6 cm when used with compatible EM cards.
Actual reading distance may vary depending on the RFID card, installation surface and surrounding environment.
Standalone Access Control Mode
The K16EM-W can operate as a standalone access controller, allowing it to manage users and control a compatible electronic door lock without requiring a separate central access control controller for basic installations.
Pure Reader Mode
In addition to standalone operation, the K16EM-W supports pure reader mode.
This allows the keypad to be connected to a compatible external access control controller where centralized access management is required.
WG26 & WG34 Reader Mode
The K16EM-W supports selectable WG26 and WG34 Wiegand communication in reader mode.
This provides flexibility for integration with compatible multi-door controllers and other Wiegand-based access control equipment.
Relay Toggle Mode
The K16EM-W includes a relay toggle operating mode for compatible access control applications.
The required relay behavior should be configured according to the connected door, gate or access control equipment.
Adjustable Door Opening Time
The door opening relay time can be adjusted from 0 to 99 seconds.
This allows the installer to configure the required unlocking duration according to the type of door, lock and entrance application.
Electric Lock Connection
The K16EM-W provides an electric lock output rated up to 1A.
The correct access control power supply and wiring arrangement should always be selected according to the electrical requirements of the connected locking device.
Magnetic Lock Access Control
The K16EM-W can form part of a compatible magnetic lock access control system for offices, glass doors, commercial buildings and other controlled entrances.
The magnetic lock should be connected using the appropriate access control power supply and relay configuration.
Electric Strike Lock Access Control
The access control keypad can also be integrated with compatible electric strike locks for office doors, residential entrances and commercial access control systems.
Electric Bolt Lock Access Control
For compatible glass doors and other suitable installations, the K16EM-W can be used as part of an electric bolt lock access control system.
Exit Push Button Connection
A compatible exit push button can be incorporated into the complete access control system to allow convenient exit from the secure side of the door.
The exit button, lock, power supply and access controller should be wired according to the required access control configuration.
Outdoor Access Control Keypad
The IP65 enclosure and specified operating temperature range of -45°C to +60°C make the K16EM-W suitable for many outdoor access control installations.
Correct mounting and electrical installation remain important for reliable long-term outdoor operation.
Office Access Control
The K16EM-W is suitable for offices requiring controlled access to staff entrances, management areas, server rooms, storage rooms and other restricted locations.
Residential Access Control
The RFID keypad can be installed at villas, apartment buildings, residential compounds and private entrances where card or PIN-based access is required.
Warehouse & Commercial Access Control
With support for up to 2,000 users, the K16EM-W is also suitable for compatible warehouses, shops, factories, commercial buildings and staff entrance applications.
Complete K16EM-W Access Control System
A typical K16EM-W door access control installation can include:
- K16EM-W RFID access control keypad
- 12V access control power supply
- Magnetic lock, electric strike or compatible electronic lock
- Exit push button
- EM RFID access cards or compatible key fobs
- Backup battery where required
- Door wiring and installation accessories
Professional K16EM-W Installation
Professional installation is recommended to ensure correct power supply selection, electronic lock wiring, exit button connection, Wiegand configuration, relay settings and user programming.
After installation, RFID card access, PIN access, Card + PIN authentication, electronic lock operation and exit functions should be fully tested.
K16EM-W RFID Access Control Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies K16EM-W RFID access control keypads in UAE for residential, commercial and industrial door access applications.
Supply, installation, programming, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
