No Touch Exit Button Infrared Sensor UAE

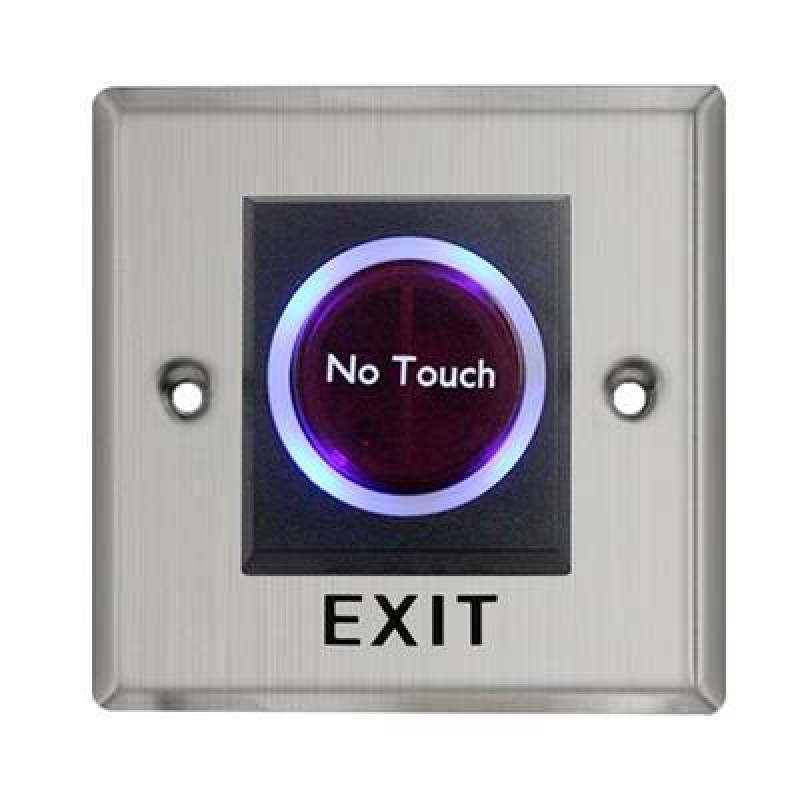

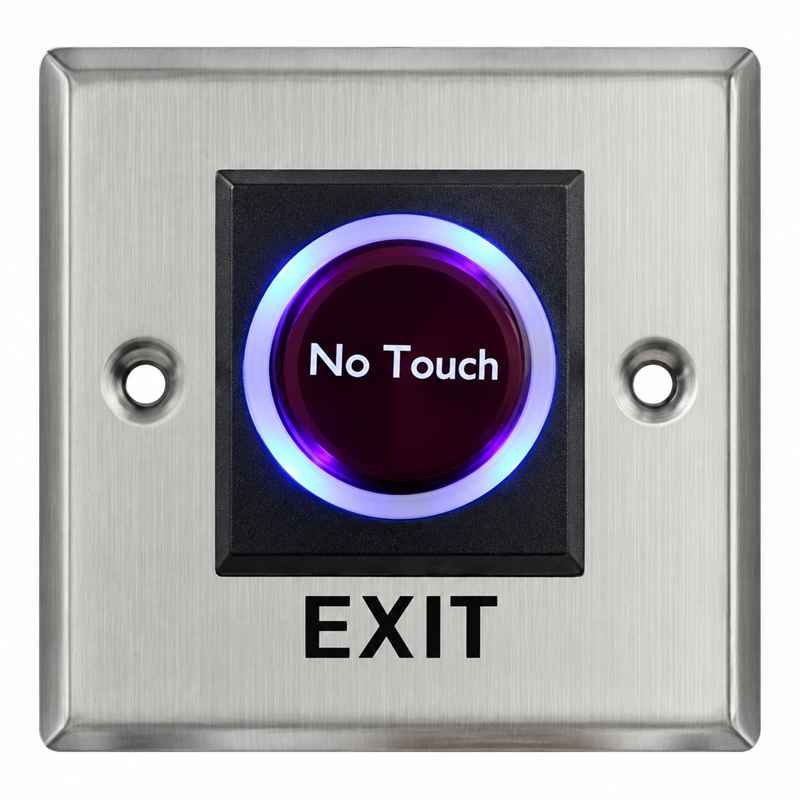

The No Touch Exit Button is a contactless infrared door release sensor designed for access control systems, electric locks and automatic door applications. Instead of physically pressing a button, users simply move their hand in front of the sensor to activate the door release command.

With an infrared detection distance of approximately 0.1 to 10 cm, the touchless exit button provides fast and convenient operation for offices, commercial buildings, hospitals, clinics, residential buildings and other access-controlled entrances.

The unit features standard +12V, GND, NO, NC and COM terminals for integration with compatible access control systems. Its standard 86 × 86 × 35 mm format provides a clean professional installation for door access applications.

Key Features

• No-touch infrared exit button
• Contactless hand detection
• 0.1–10 cm infrared detection range
• No physical button press required
• Standard 86 × 86 mm design
• +12V and GND power terminals
• NO / NC / COM relay contacts
• Maximum contact rating 3A at 36V DC
• Up to 1,000,000 tested operations
• Fast touch-free door release
• Suitable for access control systems
• Suitable for electromagnetic locks
• Suitable for electric strike locks
• Suitable for electric bolt locks
• Suitable for automatic doors
• Residential and commercial applications

Technical Specifications

Contactless Infrared Exit Button

The no touch exit button uses infrared sensing technology to detect a hand placed in front of the sensor.

Once movement is detected within the sensing area, the unit activates its relay output and sends the required door release command to the compatible access control system.

0.1–10cm Infrared Detection Range

The infrared sensor provides a detection range of approximately 0.1 to 10 cm, allowing users to activate the exit command without physically touching the device.

The user simply moves a hand close to the sensor to request door release.

Touch-Free Door Release

Contactless operation reduces the need for users to repeatedly touch the same physical exit button.

This makes the infrared exit sensor particularly useful for high-traffic entrances and locations where convenient touch-free operation is preferred.

12V No Touch Exit Button

The sensor provides dedicated +12V and GND terminals for its power connection.

A suitable regulated 12V DC access control power supply should be used according to the requirements of the complete door access system.

NO / NC / COM Relay Output

The no touch exit button provides NO, NC and COM relay contacts, allowing flexible connection to compatible access controllers, electric lock power supplies and automatic door systems.

The appropriate NO or NC contact should be selected according to the required door-release logic.

3A 36V DC Contact Rating

The relay contact is rated for up to 3A at 36V DC.

The electrical requirements of the connected equipment should always be checked before wiring the sensor directly to any locking device.

1 Million Tested Operations

The no touch exit sensor is specified for up to 1,000,000 tested operations, providing reliable performance for frequently used access-controlled entrances.

Magnetic Lock Exit Sensor

The infrared exit button can be integrated into compatible access control systems using an electromagnetic lock.

When a hand is detected, the sensor provides the required relay signal so the access control system can release the magnetic lock.

Electric Strike Lock Integration

The no touch exit button can also be used with compatible electric strike lock installations.

The relay output can provide a release request to the access controller or appropriate electric lock power supply.

Electric Bolt Lock Integration

Compatible electric bolt access control systems can use the infrared exit sensor as a touch-free internal release device.

Correct NO/NC relay configuration should be selected according to the electric bolt and access control system.

RFID Access Control Integration

A typical RFID access control installation can use an RFID reader or keypad on the entrance side and a no touch exit button on the secure side.

Authorised users present their RFID credential to enter, while users leaving the secured area activate the infrared sensor without touching a physical button.

Automatic Door Exit Sensor

The contactless exit button can also provide an activation command to compatible automatic swing door and automatic sliding door systems.

When a hand is detected, the relay output can send an opening signal to a compatible automatic door controller.

Suitable for High-Traffic Areas

Touch-free activation is particularly useful for entrances where many people use the exit device throughout the day.

The infrared sensor eliminates repeated mechanical button pressing while providing convenient door-release operation.

Hospitals & Clinics

Contactless exit buttons are useful for healthcare environments where convenient touch-free door operation is preferred.

They can be integrated with compatible access-controlled or automatic doors in clinics, medical centres and other healthcare facilities.

Office Access Control

The no touch exit button provides a modern alternative to conventional mechanical exit switches for office access control systems.

Employees can leave secured areas simply by moving a hand close to the infrared sensor.

Commercial Building Access

The infrared exit button is suitable for commercial buildings, reception areas, staff entrances and other access-controlled locations.

Its standard 86 × 86 mm design provides a professional appearance for modern access control installations.

Complete No Touch Access Control System

A typical access control installation using the infrared exit button may include:

• RFID, keypad or biometric access reader
• Access control controller
• No touch infrared exit button
• Electromagnetic, strike or electric bolt lock
• 12V access control power supply
• RFID cards or key fobs
• Door contact where required
• Emergency release equipment where required
• Backup battery where required

No Touch Exit Button Applications

• Office entrance doors
• Commercial buildings
• Residential buildings
• Apartment entrances
• Hospitals and clinics
• Medical centres
• Staff entrances
• Warehouses
• Factories
• Server rooms
• Restricted access areas
• Automatic doors
• Access-controlled doors

Professional No Touch Exit Button Installation

Professional installation is recommended to ensure the correct 12V power connection and NO/NC/COM relay configuration are used with the access controller, electric lock or automatic door system.

After installation, the sensor should be tested several times to confirm reliable hand detection and correct door-release operation.
