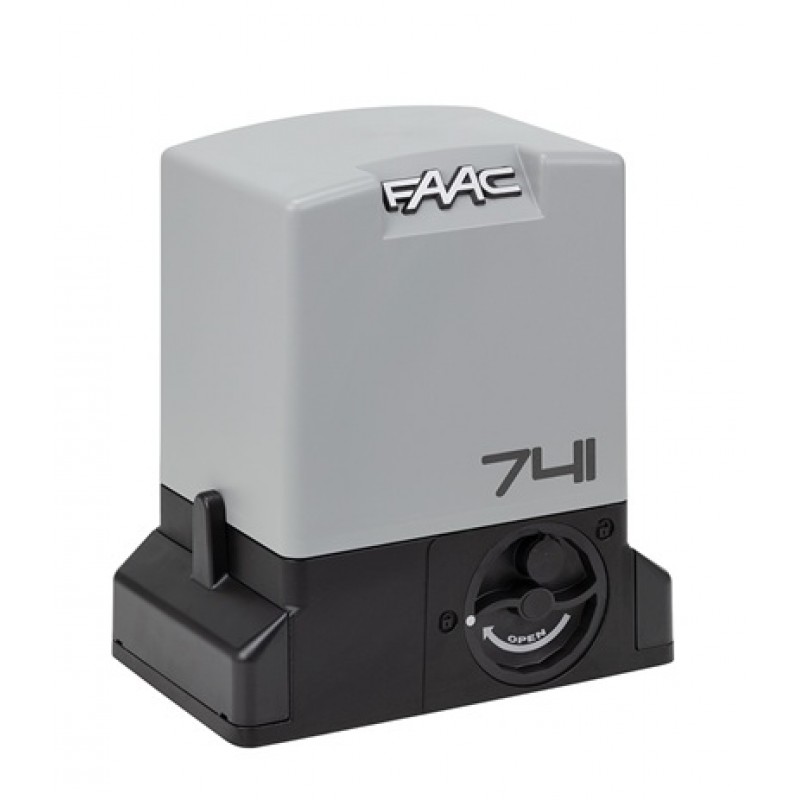

FAAC 741 900 KG Sliding Gate Motor UAE

The FAAC 741 900 KG Sliding Gate Motor is a powerful 230V electromechanical automatic gate operator designed for sliding gates weighing up to 900 KG. Manufactured by FAAC, the 741 combines reliable Italian engineering with a 500W motor, integrated electronic control, magnetic limit switches and an optical encoder for safe and dependable gate automation.

The FAAC 741 E Z16 provides a maximum gate speed of 12 metres per minute and supports sliding gate leaves up to 15 metres wide. With a maximum torque of 24 Nm and maximum expressed force of 650 N, it is suitable for demanding residential and commercial sliding gate applications.

The built-in FAAC 740D electronic control board provides convenient programming and management of the automatic gate system, while the integrated encoder supports obstacle detection and controlled gate movement.

Key Features

• Original FAAC sliding gate motor
• Model FAAC 741 E Z16 with encoder
• Item code 1097815
• Suitable for sliding gates up to 900 KG
• Maximum gate width up to 15 metres
• 220–240V AC, 50/60Hz power supply
• Powerful 500W single-phase motor
• Maximum torque 24 Nm
• Maximum expressed force 650 N
• Gate speed up to 12 m/min
• S3 – 40% duty cycle
• Magnetic opening and closing limit switches
• Integrated optical encoder
• Obstacle detection with reverse function
• Electronic force adjustment
• Built-in FAAC 740D control board
• Z16 Module 4 drive pinion
• IP44 protection rating
• Manual release system

Technical Specifications

FAAC 741 E Z16 230V Automatic Sliding Gate Opener

The FAAC 741 is a 230V electromechanical sliding gate operator designed for residential and commercial automatic gates requiring more power than the FAAC 740.

With a maximum gate capacity of 900 KG, the FAAC 741 provides a reliable automation solution for villas, residential compounds, apartment buildings, commercial properties and vehicle entrances.

Sliding Gates Up to 900 KG

The FAAC 741 is designed for compatible sliding gate leaves weighing up to 900 KG and measuring up to 15 metres in width.

Gate weight alone should not determine motor selection. The gate track, wheels, alignment, length and frequency of operation should also be checked before installation.

Powerful 500W 230V Motor

The FAAC 741 uses a powerful 500W asynchronous single-phase motor operating from a 220–240V AC power supply.

The operator provides up to 24 Nm maximum torque and 650 N maximum expressed force, providing the additional drive power required for heavier sliding gates.

12 Metres Per Minute Gate Speed

The FAAC 741 provides a gate movement speed of approximately 12 metres per minute, allowing efficient automatic opening and closing of compatible sliding gates.

40% Duty Cycle

With an S3 – 40% duty cycle, the FAAC 741 provides greater operating capacity than the lighter FAAC 740 model, making it suitable for installations requiring more frequent daily gate operation.

Built-In FAAC 740D Control Board

The FAAC 741 incorporates the FAAC 740D electronic control board inside the operator.

The integrated controller provides convenient programming and manages motor operation, force adjustment, safety devices, limit switches and compatible gate automation accessories.

Integrated Optical Encoder

The FAAC 741 E Z16 incorporates an optical encoder for monitoring motor movement and supporting the operator's electronic safety functions.

The encoder provides reverse functionality when an obstacle is detected and supports specific management during opening and slowdown.

Magnetic Limit Switches

The FAAC 741 uses magnetic opening and closing limit switches to determine the fully open and fully closed gate positions.

The limit-switch magnets should be correctly installed and adjusted on the gate rack to provide reliable stopping positions.

Z16 Module 4 Drive Pinion

The FAAC 741 E Z16 uses a 16-tooth Module 4 drive pinion. A compatible Module 4 gear rack must be correctly installed along the sliding gate and aligned with the motor pinion.

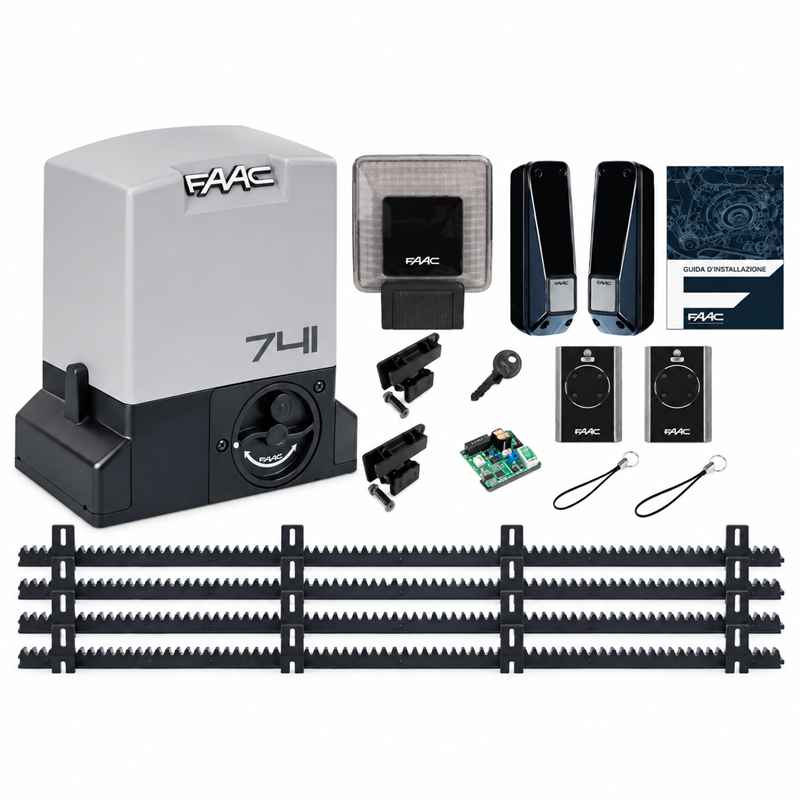

FAAC 741 Complete Kit Includes

• 1 × FAAC 741 E Z16 Sliding Gate Motor
• 1 × Built-In FAAC 740D Electronic Control Board
• 1 × Integrated Optical Encoder
• 4 × 1-Metre Nylon Gear Racks
• 1 × RP 433 SLH Plug-In Radio Receiver
• 1 × FAAC XLED Flashing Warning Light
• 1 × Pair of FAAC XP20D Photocell Sensors
• 1 × FAAC XT2 433 SLH LR 2-Channel Remote Control
• 1 × Push Button
• Manual Release Keys

Obstacle Detection & Anti-Crushing Safety

The integrated encoder supports obstacle detection during gate movement. When correctly configured, the FAAC control system can respond to abnormal resistance and reverse the operator according to the programmed safety settings.

FAAC XP20D Photocell Safety Sensors

Compatible FAAC XP20D photocell sensors can be installed across the gate entrance to provide an additional safety input for vehicle and obstacle detection.

FAAC Remote Control Operation

The FAAC 741 can be equipped with a compatible FAAC radio receiver and remote controls for convenient wireless gate operation.

The complete kit can include an RP 433 SLH plug-in receiver and FAAC XT2 433 SLH LR transmitter.

Manual Release During Power Failure

The FAAC 741 includes a convenient manual release mechanism. The operator can be disengaged using the release key when manual gate movement is required during maintenance or an electrical power failure.

Residential & Commercial Applications

• Villa sliding gates
• Large residential driveway gates
• Apartment building entrances
• Residential compounds
• Commercial sliding gates
• Office building entrances
• Warehouse gates
• Parking entrances
• Automatic vehicle access gates

Professional FAAC 741 Installation

Professional installation is recommended for the FAAC 741. Before automation, the sliding gate should move smoothly and freely by hand without excessive mechanical resistance.

The motor foundation, Module 4 gear rack, magnetic limit switches, photocell sensors, electrical connections and electronic settings should be correctly installed and adjusted for safe and reliable operation.

FAAC 741 900 KG Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies FAAC 741 900 KG sliding gate motors in UAE for residential and commercial automatic sliding gate applications.

Supply, professional installation, replacement, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
