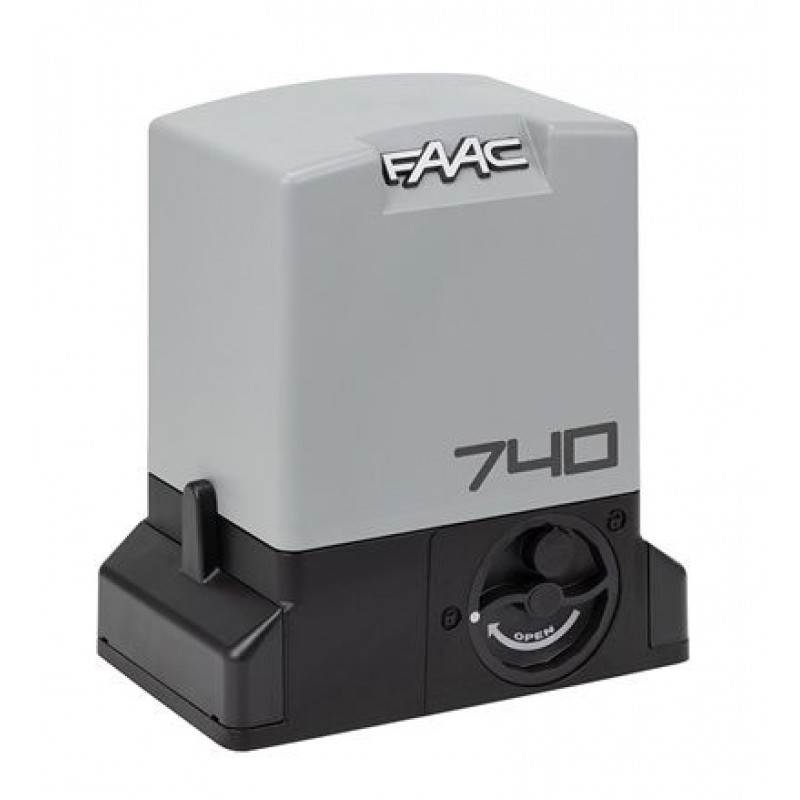

FAAC 740 500 KG Sliding Gate Motor UAE

The FAAC 740 500 KG Sliding Gate Motor is a reliable 230V automatic sliding gate operator designed for residential gates weighing up to 500 KG. Engineered by FAAC, the 740 combines Italian gate automation technology with a powerful electromechanical drive, integrated electronic control, magnetic limit switches and encoder-based safety management.

The FAAC 740 E Z16 delivers a gate speed of up to 12 metres per minute and is suitable for sliding gates up to 15 metres wide. Its built-in FAAC 740D electronic control board provides convenient programming and control of the complete automatic gate system.

The FAAC 740 is an excellent choice for villas, residential properties, apartment entrances and other automatic sliding gate applications requiring reliable everyday operation.

Key Features

• Original FAAC sliding gate motor
• Model FAAC 740 E Z16
• Suitable for sliding gates up to 500 KG
• Maximum gate width up to 15 metres
• 220–240V AC operation
• 350W maximum power
• Maximum gate speed 12 m/min
• S3 – 30% duty cycle
• Magnetic limit switch system
• Integrated optical encoder
• Obstacle detection and reverse function
• Electronic force adjustment
• Built-in FAAC 740D control board
• Z16 Module 4 drive pinion
• IP44 protection rating
• Manual release system
• Suitable for residential sliding gates

Technical Specifications

FAAC 740 E Z16 230V Automatic Sliding Gate Opener

The FAAC 740 is an electromechanical sliding gate operator developed for residential automatic gate applications. Its compact design combines the motor, reduction gearbox and electronic control system into a professional automation solution.

Sliding Gates Up to 500 KG

The FAAC 740 is designed for compatible sliding gates weighing up to 500 KG and measuring up to 15 metres in width.

When selecting a gate motor, the condition of the gate should also be considered. The gate must move freely along the track, with correctly aligned wheels and no excessive mechanical resistance.

12 Metres Per Minute Gate Speed

The FAAC 740 provides a gate movement speed of approximately 12 metres per minute, providing efficient automatic opening and closing for residential entrances.

350W 230V Gate Motor

The operator uses an asynchronous single-phase motor with a 220–240V AC, 50/60Hz power supply and maximum power of 350W.

The electromechanical drive provides up to 18 Nm maximum torque and 450 N maximum expressed force.

Built-In FAAC 740D Control Board

The FAAC 740 incorporates the FAAC 740D electronic control board, providing convenient programming and management of the automatic sliding gate system.

The built-in control unit reduces the need for a separate external control-panel enclosure and provides connections for compatible gate automation accessories.

Magnetic Limit Switch

The FAAC 740 uses a magnetic limit switch system to identify the fully open and fully closed positions of the sliding gate.

Correct installation and adjustment of the limit-switch magnets are important for reliable stopping and automatic gate operation.

Integrated Optical Encoder

An integrated optical encoder monitors motor movement and supports the electronic safety functions of the FAAC 740.

The encoder works with the electronic controller to help manage gate movement and obstacle detection during operation.

Obstacle Detection & Reverse Function

The FAAC 740 provides an encoder-based reverse function when an obstacle is detected during opening, together with controlled slowdown functions according to the programmed control-board settings.

Z16 Module 4 Drive Pinion

The FAAC 740 E Z16 uses a 16-tooth Module 4 drive pinion. A compatible Module 4 gate rack must be correctly installed and aligned with the motor pinion.

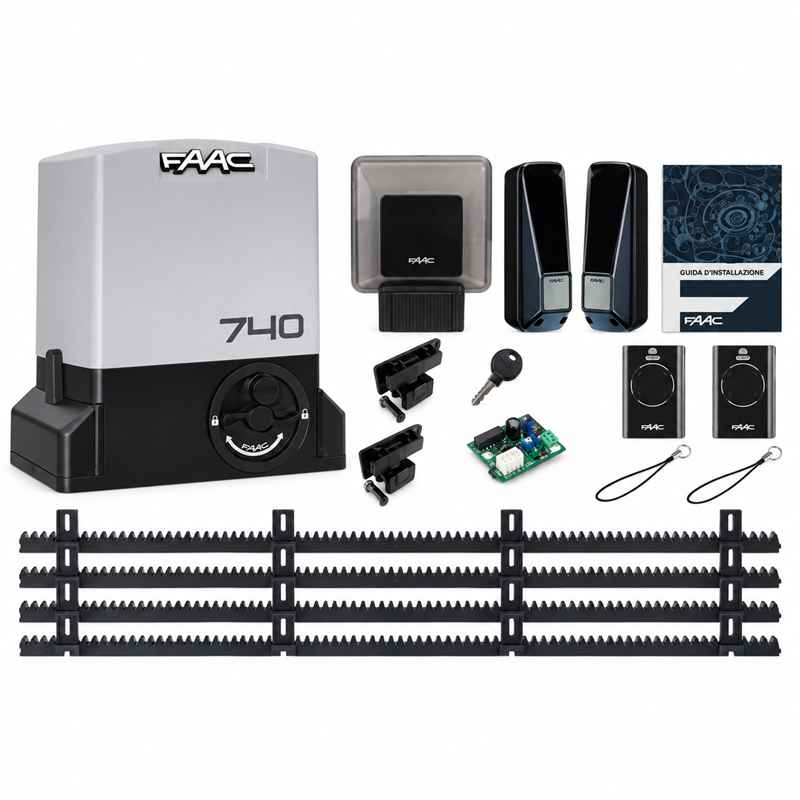

FAAC 740 Complete Kit Includes

• 1 × FAAC 740 E Z16 Sliding Gate Motor
• 1 × FAAC 740D Built-In Electronic Control Board
• 4 × 1-Metre Nylon Gear Racks
• 1 × RP 433 SLH Plug-In Radio Receiver
• 1 × FAAC XLED Flashing Warning Light
• 1 × Pair of FAAC XP20D Photocell Sensors
• 1 × FAAC XT2 433 SLH LR 2-Channel Remote Control
• 1 × Push Button
• 1 × Manual Release Key

FAAC XP20D Photocell Safety Sensors

The complete FAAC 740 automation kit can include a pair of FAAC XP20D photocell sensors. The photocells provide an additional safety input by detecting interruptions across the gate entrance.

FAAC 433 MHz Remote Control

The automation kit can be equipped with a compatible FAAC 433 MHz radio receiver and transmitter for convenient wireless gate operation from a vehicle.

4 Metres Nylon Gear Rack

Four 1-metre nylon gear rack sections are included in the complete kit configuration. The gear rack is installed along the sliding gate and engages with the FAAC 740 motor pinion to move the gate during opening and closing.

Manual Release System

The FAAC 740 includes a manual release system allowing the motor to be disengaged when manual gate movement is required during maintenance or a power failure.

Residential Sliding Gate Applications

• Villa sliding gates
• Residential driveway gates
• Private property entrances
• Apartment building gates
• Residential compounds
• Small parking entrances
• Automatic vehicle access gates

Professional FAAC 740 Installation

Professional installation is recommended for the FAAC 740 sliding gate motor. The gate should move smoothly by hand before automation, and the motor foundation, gear rack, magnetic limit switches, photocells and electronic settings should be correctly installed and adjusted.

FAAC 740 500 KG Sliding Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies FAAC 740 500 KG sliding gate motors in UAE for residential automatic sliding gate applications.

Supply, professional installation, replacement, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
