Electric Rim Lock 12V DC Double Cylinder UAE
Price 99 AEDIn Stock

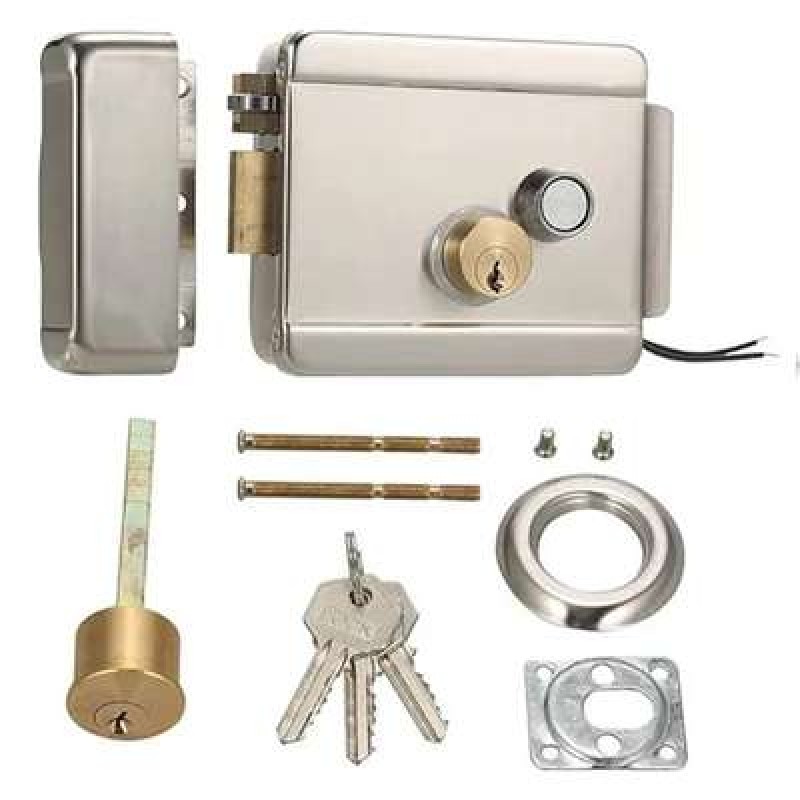

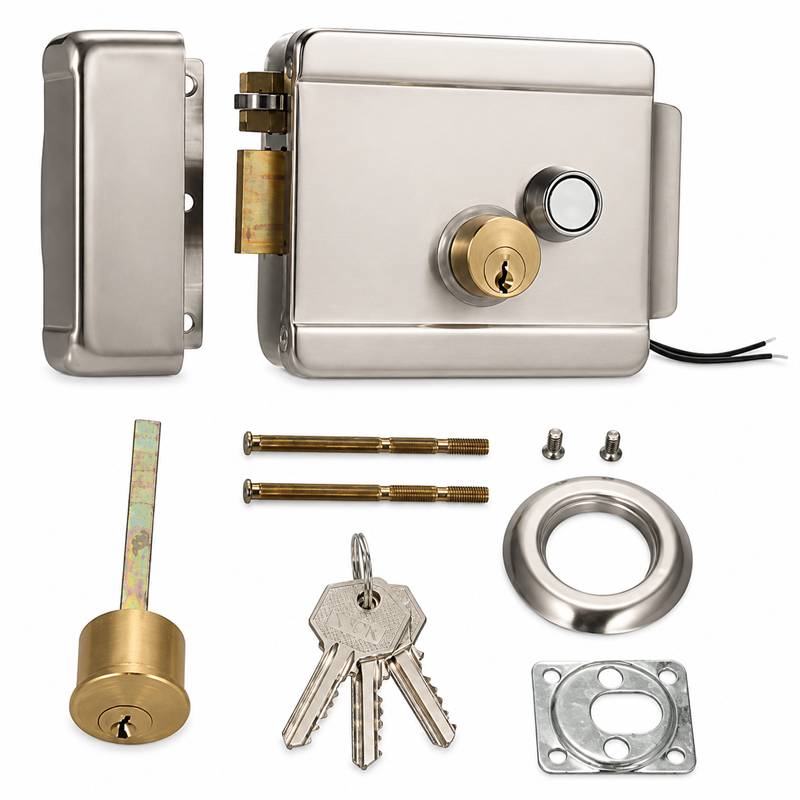

The Electric Rim Lock 12V DC is a heavy-duty electronic locking solution designed for access control doors, pedestrian gates and security entrances. Featuring a strong double-cylinder design and fail-secure operation, the lock provides reliable controlled entry for residential, commercial and industrial applications.
The electric rim lock operates on 12V DC and uses a pulse-to-open system that releases the lock within approximately one second after receiving an authorised electrical command. It can be integrated with RFID access control readers, keypad systems, biometric readers, intercoms, exit buttons and other compatible door access control equipment.
With a high-strength metal housing, solid brass locking components and a rated service life of up to 1,000,000 operations, this electric rim lock is designed for dependable everyday door security applications.
Key Features
- Heavy-duty electric rim lock
- 12V DC operation
- Double connected cylinder
- Fail-secure locking operation
- Pulse-to-open electrical release
- Unlocks within approximately 1 second
- 10W power consumption
- 3A working current
- High-strength metal lock housing
- Solid brass ball latch
- Solid brass cylinder and deadbolt
- Reversible deadbolt
- Nickel-plated finish
- 60 mm backset
- 3 keys included
- Low-noise operation
- Up to 1,000,000 operations service life
- Compatible with access control systems
- Suitable for residential and commercial security
Technical Specifications
| Product Type | Electric Rim Lock |
| Cylinder Type | Double Connected Cylinder |
| Operating Voltage | 12V DC |
| Working Current | 3A |
| Power Consumption | 10W |
| Operation | Fail Secure / Pulse to Open |
| Unlock Time | Within 1 Second |
| Lock Dimensions | 148 × 107 × 60 mm |
| Backset | 60 mm |
| Lock Body Thickness | 2.0 mm |
| Strike Thickness | 2.0 mm |
| Finish | Nickel-Plated |
| Keys Included | 3 Pieces |
| Service Life | Up to 1,000,000 Operations |
| Application | Doors / Pedestrian Gates / Access Control |
12V DC Electric Rim Lock
The electric rim lock operates from a 12V DC power supply and requires approximately 3A during electrical operation.
A suitable access control power supply should be selected according to the electrical requirements of the lock and all other devices connected to the system.
Fail-Secure Electric Door Lock
This electric rim lock uses a fail-secure locking configuration. The door remains mechanically secured when electrical power is not being applied to release the lock.
An authorised electrical pulse temporarily releases the locking mechanism to allow entry.
Pulse-to-Open Operation
The electric rim lock uses a pulse-to-open system rather than requiring continuous power for normal unlocking.
When an authorised access control command is received, a short electrical pulse releases the lock within approximately one second.
Double Cylinder Electric Rim Lock
The double connected cylinder configuration provides mechanical key operation in addition to electronic access control.
Three keys are supplied with the lock, providing an alternative mechanical method of access when required.
Heavy-Duty Lock Construction
The electric rim lock is designed with a strong metal housing and durable locking components for dependable everyday security.
Solid brass components are used for the ball latch, cylinder and deadbolt to provide reliable mechanical operation.
Reversible Deadbolt
The lock features a reversible deadbolt, providing greater flexibility during installation according to the required door configuration.
The installer should confirm the door opening direction, lock position and strike alignment before final installation.
60 mm Backset
The electric rim lock has a specified 60 mm backset. The lock dimensions are approximately 148 × 107 × 60 mm.
Door and frame measurements should be checked before installation to ensure correct positioning and compatibility.
Up to 1,000,000 Operations
The locking mechanism is designed for a service life of up to 1,000,000 operations under suitable operating and installation conditions.
This makes the lock suitable for access-controlled entrances requiring frequent daily operation.
RFID Access Control Integration
The electric rim lock can be integrated with a compatible RFID access control system. When an authorised RFID card is presented, the access controller sends the required release command to the electric lock.
This provides convenient keyless access for offices, apartment buildings, staff entrances and other controlled areas.
Keypad Access Control
A standalone or network access control keypad can be used to operate the electric rim lock after an authorised PIN code is entered.
Systems supporting card + PIN authentication can provide additional access security where required.
Fingerprint & Biometric Access Control
The electric rim lock can also be connected to compatible fingerprint, facial recognition or other biometric access control systems.
After successful user authentication, the access controller activates the lock release output.
Intercom Door Release
The electric rim lock can form part of an audio or video intercom door-entry system.
After identifying a visitor, an authorised person can release the door remotely through a compatible intercom system.
Exit Push Button Connection
An exit push button can be connected through the access control system to provide convenient door release from inside the secured area.
This provides controlled electronic entry from outside while allowing convenient authorised exit from inside.
Electric Rim Lock for Pedestrian Gates
The electric rim lock can be used on compatible pedestrian gates where electronic locking and access control are required.
Correct lock positioning, strike alignment and gate construction should be checked before installation to ensure dependable operation.
Electric Rim Lock for Doors
This lock is suitable for compatible residential, office and commercial doors requiring electronic access control.
The surface-mounted rim-lock design can be a practical solution where a compatible door configuration does not require a mortised electric lock.
Complete Electric Rim Lock Access Control System
A typical electric rim lock access control installation may include:
- 12V DC electric rim lock
- RFID or keypad access controller
- Access control power supply
- Exit push button
- RFID cards or key fobs
- Door contact where required
- Emergency release equipment where required
- Backup battery where required
Electric Rim Lock Applications
- Office entrance doors
- Residential buildings
- Apartment entrances
- Villa pedestrian gates
- Commercial properties
- Staff entrances
- Warehouses
- Factories
- Restricted access areas
- Access-controlled doors
- Intercom door entry systems
Professional Electric Rim Lock Installation
Professional installation is recommended to ensure correct lock positioning, strike alignment, electrical wiring and access control programming.
After installation, the complete system should be tested to confirm secure mechanical locking, reliable electrical release and correct operation from all connected access control devices.
Electric Rim Lock Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies electric rim locks in UAE for residential, commercial and industrial access control applications.
Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
