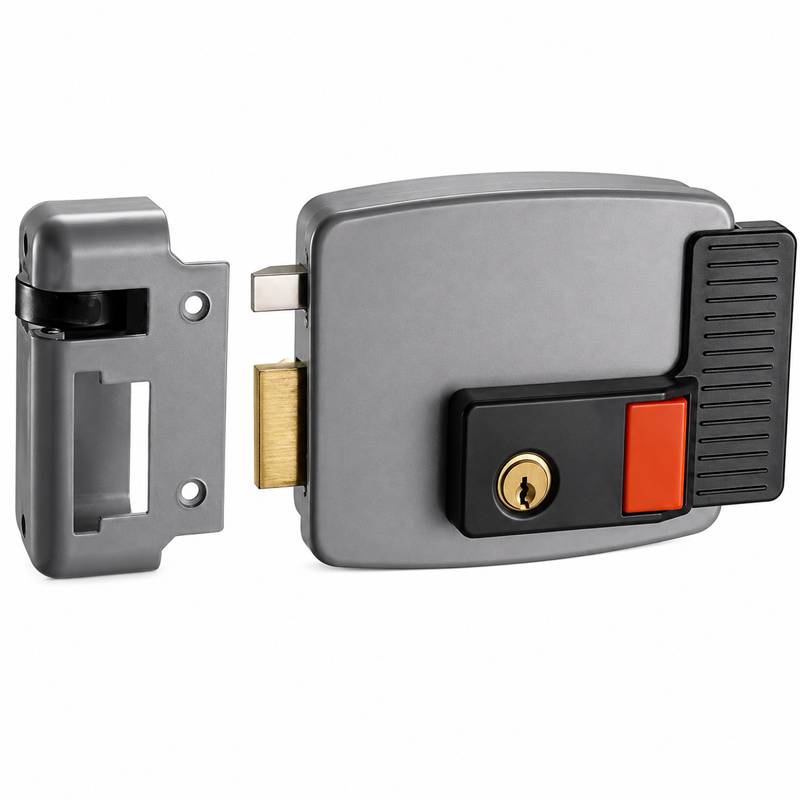

Electric Rim Lock for Gates 12V UAE

The Electric Rim Lock for Gates is a heavy-duty electronic locking solution designed for iron gates, pedestrian gates and access-controlled entrances. Operating on 12V, the lock provides secure electrical release while also allowing mechanical key operation from outside and convenient button release from inside.

Designed specifically for gate applications, this electric rim lock features a 70 mm inlet/backset, 55 mm outer cylinder, protective roof and durable zinc-coated steel construction. Left-hand and right-hand versions are available to suit different gate opening configurations.

The lock can be integrated with RFID access control systems, keypad readers, intercoms, video door phones, GSM controllers, push buttons and other compatible gate access systems.

Key Features

• Automatic electric rim lock for gates
• Designed for iron and pedestrian gates
• 12V electrical operation
• 2.5A current consumption
• 70 mm inlet / backset
• 55 mm outer cylinder length
• Left-hand and right-hand versions available
• Outside opening by mechanical key
• Inside opening with integrated push button
• Remote electrical unlocking
• Protective roof included
• Self-locking security mechanism
• Day Stop / free-access function
• Integrated button can be disabled
• Adjustable closing pressure
• Self-lubricating nylon roller
• Stainless steel latch flap
• Zinc-coated steel housing
• 2 keys included
• Suitable for access control integration

Technical Specifications

12V Electric Rim Lock for Gates

This 12V electric rim lock provides electronic locking and unlocking for compatible pedestrian and iron gates.

The lock consumes approximately 2.5A during electrical operation and should be connected to a suitable access control or electric lock power supply.

Electric Lock for Iron Gates

The electric rim lock is specifically suitable for iron gate applications where a strong surface-mounted electronic locking solution is required.

Its durable metal construction and protective cover make it suitable for correctly installed residential and commercial gate entrances.

Pedestrian Gate Electric Lock

The lock is an excellent solution for pedestrian gates requiring controlled electronic entry.

Visitors or authorised users can gain access through an RFID reader, keypad, intercom, push button or other compatible access control device.

70 mm Backset Electric Gate Lock

This electric rim gate lock features a 70 mm inlet / backset configuration.

The gate dimensions and mounting position should be checked before installation to ensure the lock and cylinder are correctly aligned.

55 mm Outer Cylinder

The lock is supplied with an outer cylinder length of approximately 55 mm, allowing mechanical key operation from the external side of the gate.

Two keys are supplied for authorised manual access.

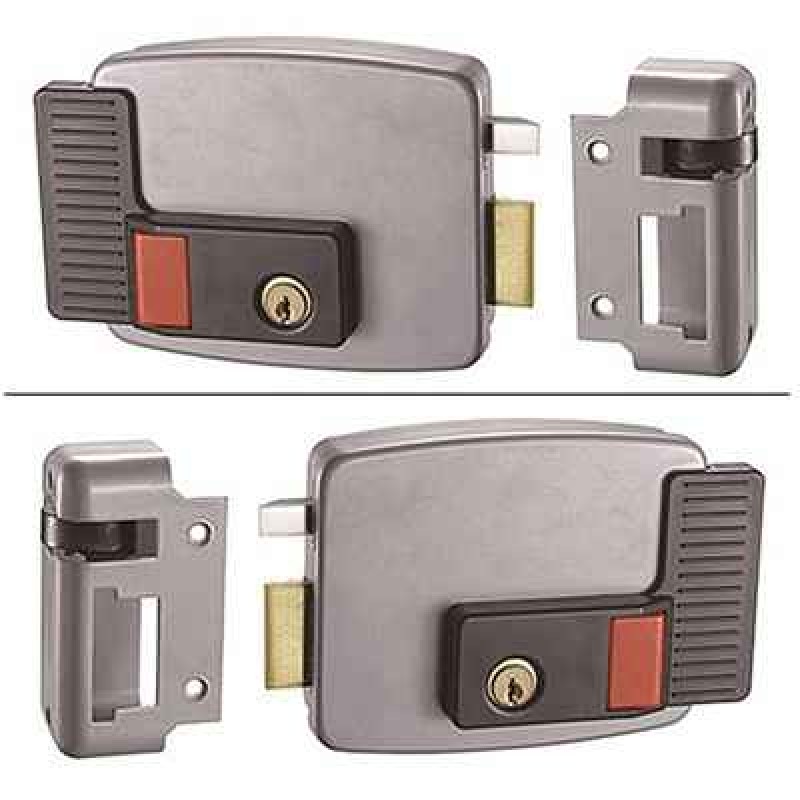

Left-Hand & Right-Hand Gate Lock

The electric rim lock is available in left-hand and right-hand versions to accommodate different gate opening directions.

The correct version should be selected according to the gate hinge position, opening direction and lock mounting side.

Outside Key Opening

The gate can be opened mechanically from outside using the supplied key.

This provides an alternative method of entry if the access control system or electrical supply is unavailable.

Integrated Inside Push Button

An integrated release button allows convenient gate opening from inside the property without requiring an RFID card or access code.

The integrated button can also be disabled where unrestricted internal release is not required.

Remote Electric Opening

In addition to key and button operation, the lock can be released electrically from compatible access control equipment.

This allows the gate to be unlocked remotely from an intercom, access controller, relay module or other suitable device.

Day Stop Free-Access Function

The lock incorporates a Day Stop function that can be used when free access through the gate is required.

This can be useful for commercial or residential properties where the pedestrian gate needs to remain freely accessible during selected periods.

Self-Locking Security Mechanism

The electric rim lock incorporates a self-locking mechanism designed to improve resistance against impact and unwanted gate opening.

When the gate closes correctly, the locking mechanism automatically returns to its secured position.

Low-Voltage Release Performance

The lock's electrical release mechanism is designed to maintain reliable unlocking even when the supplied voltage temporarily drops below its nominal 12V level.

A correctly rated 12V power supply should nevertheless be used for normal operation and long-term reliability.

Adjustable Closing Pressure

The closing pressure can be adjusted through the spring mechanism to help achieve reliable engagement between the gate and electric lock.

Correct adjustment is important because pedestrian and iron gates can vary considerably in weight, alignment and closing force.

Self-Lubricating Nylon Roller

A self-lubricating nylon roller helps the gate engage smoothly with the electric lock during closing.

Correct mechanical alignment between the lock and gate is essential for dependable automatic locking.

Protective Roof

The electric rim lock is supplied with a protective roof designed to provide additional physical protection around the lock installation.

Correct outdoor mounting and cable protection should still be used for external gate installations.

RFID Access Control Integration

The electric gate lock can be connected to a compatible RFID access control system.

When an authorised card or key fob is presented, the access controller activates its lock output to electrically release the gate.

Keypad Access Control

A standalone keypad or RFID + PIN access controller can also be used with the electric rim lock.

This provides convenient keyless gate entry using an authorised PIN code.

Intercom & Video Door Phone Integration

The electric gate lock can be integrated with compatible audio intercom and video door phone systems.

After identifying a visitor, the property owner or security staff can remotely release the pedestrian gate.

GSM Gate Access

A compatible GSM access controller can be used to provide mobile-phone-controlled release of the electric rim lock.

This can provide convenient remote entry management for residential, commercial and staff access applications.

Complete Electric Gate Lock System

A typical electric rim lock gate access system may include:

• 12V electric rim lock
• RFID or keypad access controller
• 12V access control power supply
• Exit push button
• RFID cards or key fobs
• Audio or video intercom
• Backup battery where required
• GSM or smart access controller where required

Electric Rim Lock Applications

• Iron pedestrian gates
• Villa entrance gates
• Residential compounds
• Apartment entrances
• Office pedestrian gates
• Commercial properties
• Warehouse entrances
• Factory pedestrian entrances
• Staff access gates
• Access-controlled gates
• Intercom-controlled gates

Professional Electric Gate Lock Installation

Professional installation is recommended to ensure correct lock positioning, gate alignment, electrical wiring and access control configuration.

The installer should confirm the correct left-hand or right-hand lock version and properly align the locking mechanism before completing the electrical connections.

Electric Rim Lock for Gates Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies electric rim locks for gates in UAE for residential, commercial and industrial access control applications.

Supply, installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
