BFT Swing Gate Motor - BFT E5 BT A18 - Best Price UAE
BFT E5 BT A18 Single Kit Swing Gate Opener:
- BFT E5 BT A18
- The E5 is an extremely compact non locking 24V
- electromechanical operator with articulated arm for pedestrian swing gates.
- There are two models available,
- the A12 and A18.
- The A12 model is suitable leafs up to 1.2 metres and up to 80 kg
- and the A18 model is suitable for 1.8 metres wide and up to 100kg.
- View product description for kit contents.
Product Description:
- The E5 is an extremely compact non locking 24V
- electromechanical operator with articulated arm for pedestrian swing gates,
- suitable for residential and commercial areas.
- The compact dimensions allow the E5 BT A to be installed
- on small pillars and columns (minimum required width 8cm).
- There are two models available, the A12 and A18.
- The A12 model is suitable leafs up to 1.2 metres and up to 80 kg
- and the A18 model is suitable for 1.8 metres wide and up to 100kg.
- The sliding arm option allows the operator to be installed in tight spaces
- when there are walls or obstacles near the operator.
- The limit switch operation is managed by the absolute encoder.
- Built-in safety features include the d-track torque management system,
- which determines the precise position and force needed to move the gate.
- The operator has an internal clutch and the new articulated
- and sliding arms have an anti-shearing system.

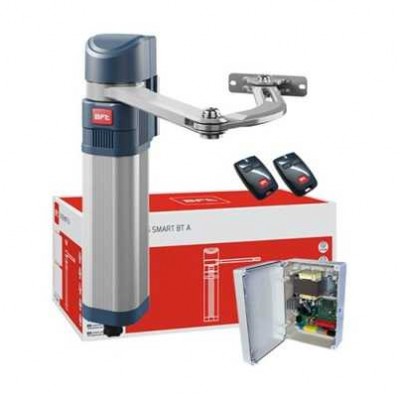

BFT E5 BT A18:
- 1 x BFT E5 BT A18 operators
- 1 x Articulated arm
- 1 x Thalia P control panel & receiver
- 2 x Kleio radio transmitters
- 1 x Pair Akta photocells and Akta covers
- 1 x Radio antenna
BFT E5 BT A18 Technical Data:
- Power supply : 24V
- Gate leaf length : 1.8m
- Max leaf weight : 100kg
- Control panel : THALIA P
- Cycle time : 14 sec
- Impact reaction : Mechanical clutch
- Protection rating :IP44
- Temperature : -20°C to 55°C
