BFT IGEA BT

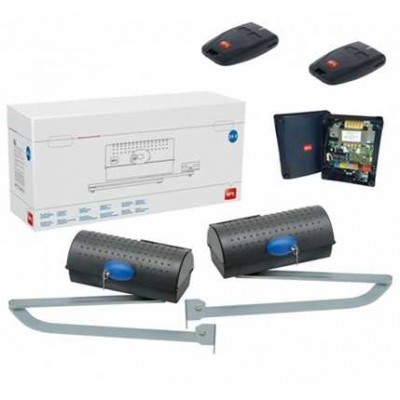

BFT IGEA BT Swing Gate Opener Motor:

• IGEA BT
• Refence P935070 00002
• Part number 2600414
• Irreversible electromechanical operator 24 V
• for swing gates weighing up to 250 kg and 2,5 m long.

Technologies:

• The new coding system for direct cloning of remote controls
• Based on microprocessor technology,
• this system allows the cloning of any MITTO remote control in a MITTO REPLAY remote control.
• In fact, the first remote control teaches the second one the correct code
• which is automatically saved in the receiver the first time it is used.
• Everything occurs at the highest levels of security
• thanks to the use of the Rolling Code safe transmission system.

Technical Data Sheets:

• Type of limit switch : Electromechanical
• Control unit : THALIA BT A80, THALIA
• Slowdown : Yes
• Board power supply : 230 V
• Locking : Mechanical
• Motor voltage : 24 V
• Release : Knob operated with personal key
• Power consumption : 40 W
• Impact reaction : D-Track
• Max. width of door/gate wing : 2.5 m
• Frequency of use intensive
• Max. weight of door/gate wing : 250 kg
• Protection rating : IP44
• Maximum angle : 125 °
• Environmental conditions : -15 ÷ 60 °C
• Cycle time : 15 s
• Interconnectivity : Yes
