BFT ICARO SMART AC A2000 Sliding Gate Motor 2000 KG UAE

The BFT ICARO SMART AC A2000 Sliding Gate Motor is a powerful heavy-duty automatic gate operator designed for sliding gates weighing up to 2000 kg. Made in Italy, the ICARO SMART AC A2000 is engineered for very intensive operation and demanding commercial and industrial sliding gate applications.

Powered by a 230V AC motor with approximately 750W power consumption, the BFT ICARO SMART AC A2000 provides strong and dependable performance for large sliding gates. The operator delivers a gate movement speed of approximately 9 m/min and incorporates an oil-bath gearbox for reliable heavy-duty operation.

The ICARO SMART AC A2000 combines a mechanical safety clutch with encoder technology and BFT D-Track torque management. This allows the automation system to monitor motor force during gate movement and provide advanced obstacle detection and controlled operation.

The integrated LEO B CBB L02 control unit provides professional management of the 230V operator, safety accessories, remote controls, automatic closing, pedestrian opening and slowdown functions. Designed for very intensive use, the ICARO SMART AC A2000 is an excellent solution for warehouses, factories, industrial facilities, commercial properties and high-traffic vehicle entrances.

Key Features

• Genuine BFT sliding gate motor
• Model ICARO SMART AC A2000
• Product code P925236 00002
• Made in Italy
• Suitable for sliding gates up to 2000 kg
• 230V AC motor
• 750W power consumption
• 9 m/min gate movement speed
• Designed for very intensive use
• LEO B CBB L02 control unit
• Relative encoder
• Mechanical safety clutch
• BFT D-Track torque management
• Advanced obstacle detection
• Oil-bath gearbox
• Electromechanical limit switches
• Automatic slowdown function
• Module 4 pinion
• Mechanical locking system
• Lever-operated manual release
• Personal manual release key
• IP24 protection rating
• Operating temperature from -20°C to +55°C
• Interconnectivity support
• Suitable for commercial and industrial gates

Technical Specifications

Heavy-Duty Sliding Gates up to 2000 KG

The BFT ICARO SMART AC A2000 is designed for automatic sliding gates weighing up to 2000 kg. Its high gate capacity and very intensive duty rating make it suitable for demanding commercial and industrial entrances where the gate operates frequently throughout the day.

The operator can be integrated with BFT remote controls, photocells, flashing lights, loop detectors, GSM gate openers, RFID readers and access control systems to create a complete automatic vehicle access solution.

230V 750W Industrial Gate Motor

The ICARO SMART AC A2000 uses a powerful 230V AC motor with 750W power consumption. This heavy-duty configuration provides the torque and reliability required to automate large sliding gates weighing up to 2000 kg.

The motor is designed for very intensive use, making it particularly suitable for warehouses, factories, logistics centres, commercial compounds and industrial facilities with frequent vehicle traffic.

BFT D-Track Safety Technology

The BFT D-Track system provides intelligent electronic management of the torque required to move the sliding gate. Motor force is monitored during opening and closing to provide controlled gate movement and advanced obstacle detection.

D-Track works together with the encoder and mechanical safety clutch to provide professional force management for demanding automatic sliding gate installations.

Encoder & Mechanical Safety Clutch

The ICARO SMART AC A2000 combines a relative encoder with a mechanical safety clutch. Encoder feedback allows the electronic controller to monitor gate movement and motor behaviour throughout the operating cycle.

The mechanical clutch provides an additional method of controlling transmitted force, creating a robust safety and movement management system for heavy sliding gates.

LEO B CBB L02 Control Unit

The BFT ICARO SMART AC A2000 incorporates the LEO B CBB L02 electronic control unit, designed to manage one 230V sliding gate operator.

The control board features display-based programming, an incorporated dual-channel receiver, BFT D-Track anti-crushing management and slowdown during opening and closing.

Main operating functions include automatic re-closing, fast closing and pedestrian opening, providing flexible configuration for commercial and industrial vehicle access applications.

Oil-Bath Gearbox

A major feature of the BFT ICARO SMART AC A2000 is its oil-bath gearbox. The gearbox is designed for demanding gate automation applications and helps provide reliable transmission during frequent operation of heavy sliding gates.

This construction makes the ICARO SMART series particularly suitable for installations requiring high operating frequency and dependable long-term performance.

9 m/min Sliding Gate Speed

The BFT ICARO SMART AC A2000 provides a gate movement speed of approximately 9 metres per minute, delivering controlled and dependable movement for heavy sliding gates weighing up to 2000 kg.

Automatic Slowdown

The integrated slowdown function reduces gate movement near the end of the opening and closing cycles. This provides smoother stopping and helps reduce mechanical stress on the gate, motor, gear rack and other automation components.

Manual Release System

The ICARO SMART AC A2000 features a lever-operated manual release with personal key. The release allows the motor to be disengaged so the sliding gate can be operated manually when required, such as during maintenance or a mains power failure.

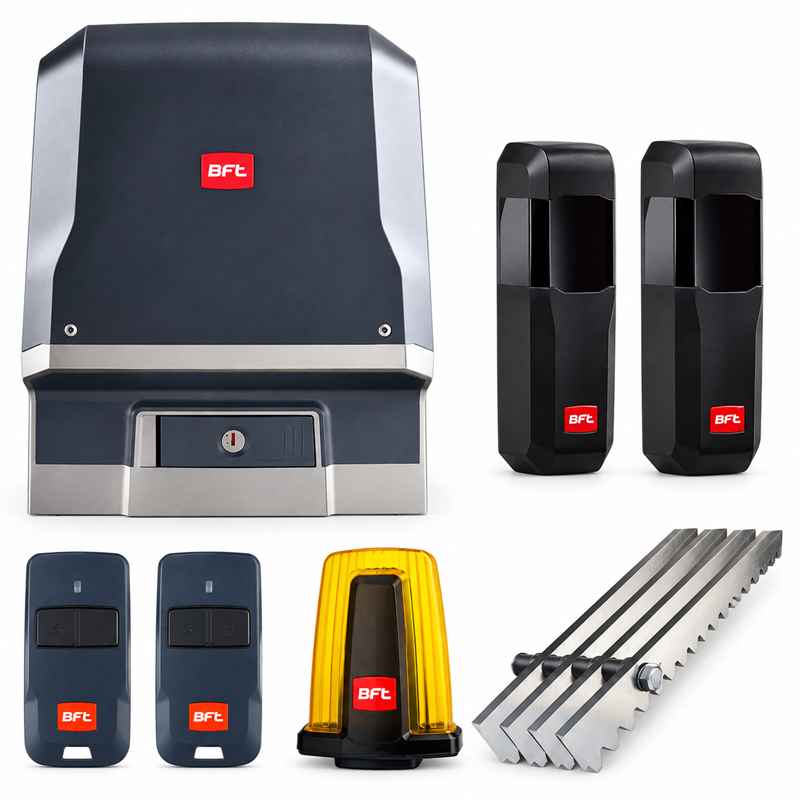

BFT ICARO SMART AC A2000 Kit Includes

• 1 × BFT ICARO SMART AC A2000 Sliding Gate Motor
• 1 × LEO B CBB L02 Integrated Control Unit
• 1 × Pair of Self-Aligning Photocell Sensors – 30 m Range
• 1 × Flashing Light with Incorporated Antenna
• 2 × BFT MITTO B RCB04 R1 4-Channel Remote Controls
• 1 × Push Button
• 4 × Nylon Gear Racks – 1 Metre Each
• 1 × Motor Fixing Plate

Commercial & Industrial Applications

• Heavy sliding gates up to 2000 kg
• Industrial entrance gates
• Factory gates
• Warehouse entrances
• Logistics centres
• Commercial compounds
• Large residential communities
• Commercial parking entrances
• High-traffic vehicle entrances
• Automatic access control systems

BFT ICARO SMART AC A2000 Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT ICARO SMART AC A2000 sliding gate motors in UAE together with compatible BFT control boards, remote controls, photocells, flashing lights, gear racks and automatic gate accessories.

Supply, professional installation, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
