BFT ARES BT A1500 Sliding Gate Motor 1500 KG UAE

The BFT ARES BT A1500 Sliding Gate Motor is a powerful Italian automatic gate operator designed for heavy sliding gates weighing up to 1500 kg. Built for intensive operation, the ARES BT A1500 provides reliable and controlled gate automation for commercial buildings, warehouses, factories, residential compounds and industrial vehicle entrances.

Powered by a 24V motor, the BFT ARES BT A1500 combines heavy-duty performance with advanced electronic control. The operator incorporates the MERAK control unit and BFT D-Track technology for intelligent management of motor force and obstacle detection during opening and closing.

The ARES BT A1500 provides a gate movement speed of approximately 9 m/min and is designed for intensive use. Magnetic limit switches provide accurate detection of the fully open and fully closed gate positions, while automatic slowdown provides smoother movement near the end of travel.

With mechanical locking, a convenient manual release system and an IP44 protection rating, the BFT ARES BT A1500 is a professional solution for demanding automatic sliding gate installations throughout the UAE.

Key Features

• Genuine BFT sliding gate automation
• Model ARES BT A1500
• Made in Italy
• Suitable for sliding gates up to 1500 kg
• 24V motor technology
• 230V control board power supply
• 400W power consumption
• Approximately 9 m/min gate movement speed
• Designed for intensive use
• Integrated MERAK control unit
• BFT D-Track technology
• Intelligent motor force management
• Obstacle detection functionality
• Magnetic limit switches
• Automatic slowdown function
• Module 4 pinion
• Mechanical locking system
• Lever-operated manual release
• Personal manual release key
• IP44 protection rating
• Operating temperature from -20°C to +55°C
• Interconnectivity support
• Suitable for heavy-duty gate automation

Technical Specifications

Heavy-Duty Sliding Gates up to 1500 KG

The BFT ARES BT A1500 is engineered for automatic sliding gates weighing up to 1500 kg. Its high gate capacity makes it suitable for demanding commercial and industrial entrances where reliability and frequent operation are important.

The operator can be combined with BFT remote controls, photocells, flashing lights, access control systems, GSM gate openers, loop detectors and other safety accessories to create a complete vehicle access automation system.

24V Intensive-Use Gate Motor

The ARES BT A1500 uses a 24V motor designed for intensive automatic gate operation. Low-voltage motor technology provides precise electronic management of gate movement, operating force and slowdown.

Its intensive-use capability makes the motor suitable for entrances where the sliding gate operates frequently throughout the day, including commercial buildings, warehouses, factories and industrial facilities.

BFT D-Track Safety Technology

The BFT D-Track system provides intelligent management of the force required to move the sliding gate. The electronic system monitors motor operation during opening and closing to provide controlled gate movement.

When abnormal resistance or an obstacle is detected, the automation can react according to its programmed safety settings. Compatible photocells and other safety devices can be added for additional protection around the automatic gate entrance.

MERAK Control Unit

The BFT ARES BT A1500 incorporates the MERAK electronic control unit for professional management of the automatic sliding gate system.

The control board manages the 24V motor, operating commands, safety accessories, automatic closing, pedestrian opening, slowdown and compatible radio controls.

Magnetic Limit Switch System

The ARES BT A1500 uses magnetic limit switches to identify the fully open and fully closed gate positions. Magnetic limit-switch technology provides reliable position detection without conventional mechanical contact at the limit-switch sensor.

Automatic Slowdown

The integrated slowdown function reduces gate movement near the end of the opening and closing cycles. This provides smoother stopping and helps reduce mechanical stress on the gate, motor, gear rack and automation components.

Mechanical Locking & Manual Release

The BFT ARES BT A1500 incorporates a mechanical locking system that keeps the sliding gate secured when the motor is stopped.

A lever-operated manual release with personal key allows the motor to be disengaged so the sliding gate can be moved manually when required, such as during maintenance or a mains power failure.

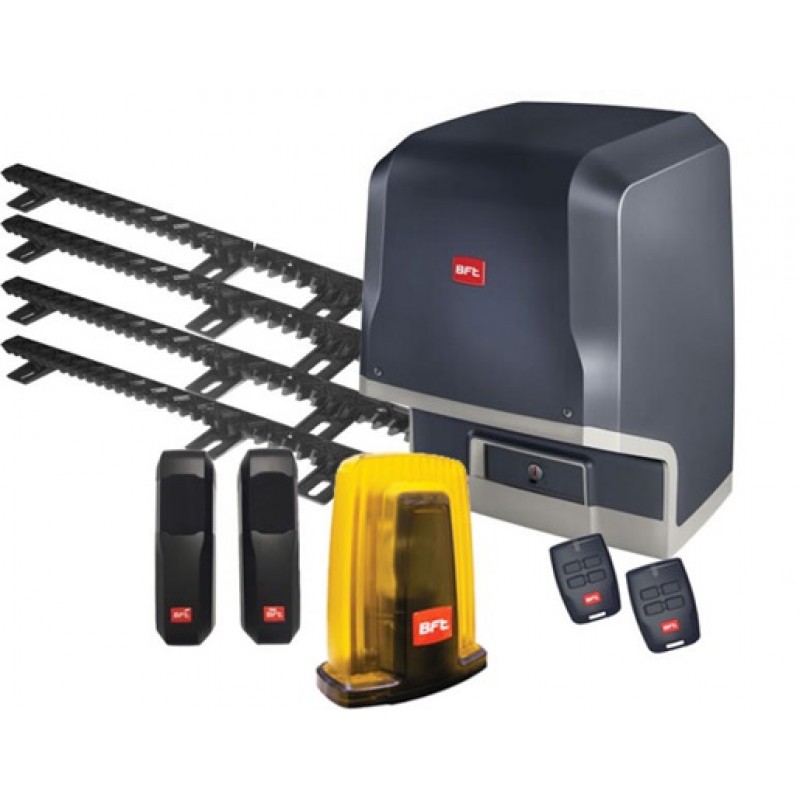

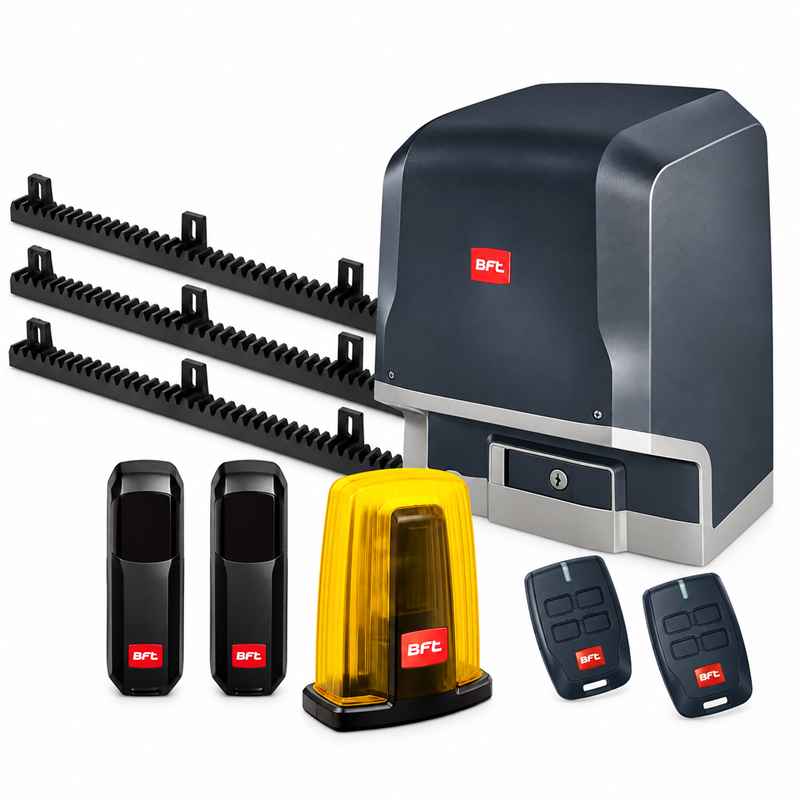

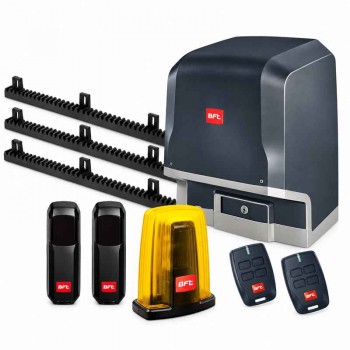

BFT ARES BT A1500 Kit Includes

• 1 × BFT ARES BT A1500 24V Sliding Gate Motor
• 1 × Pair of Photocell Safety Sensors – 20 Metre Range
• 2 × 4-Channel Remote Controls
• 1 × Flashing Light with Incorporated Antenna
• 1 × Push Button
• 4 × Nylon Gear Racks – 1 Metre Each
• 1 × Motor Fixing Plate

Commercial & Industrial Applications

• Heavy sliding gates up to 1500 kg
• Large villa entrance gates
• Residential compounds
• Commercial buildings
• Warehouse entrances
• Factory gates
• Industrial facilities
• Logistics centres
• Commercial parking entrances
• Automatic vehicle access systems

BFT ARES BT A1500 Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BFT ARES BT A1500 sliding gate motors in UAE together with compatible BFT remote controls, photocells, flashing lights, control boards, nylon gear racks and automatic gate accessories.

Supply, professional installation, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
