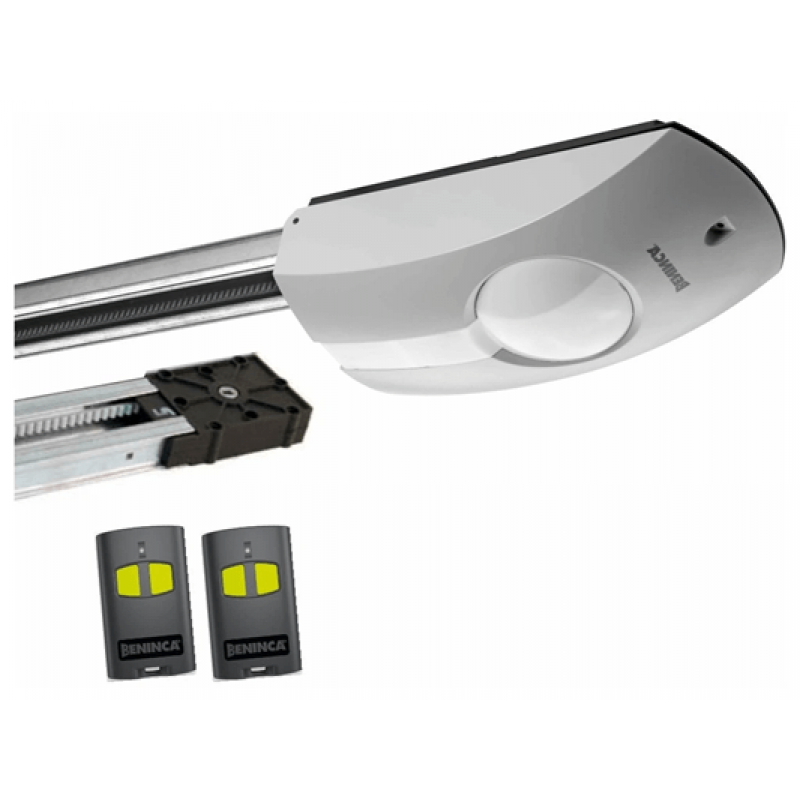

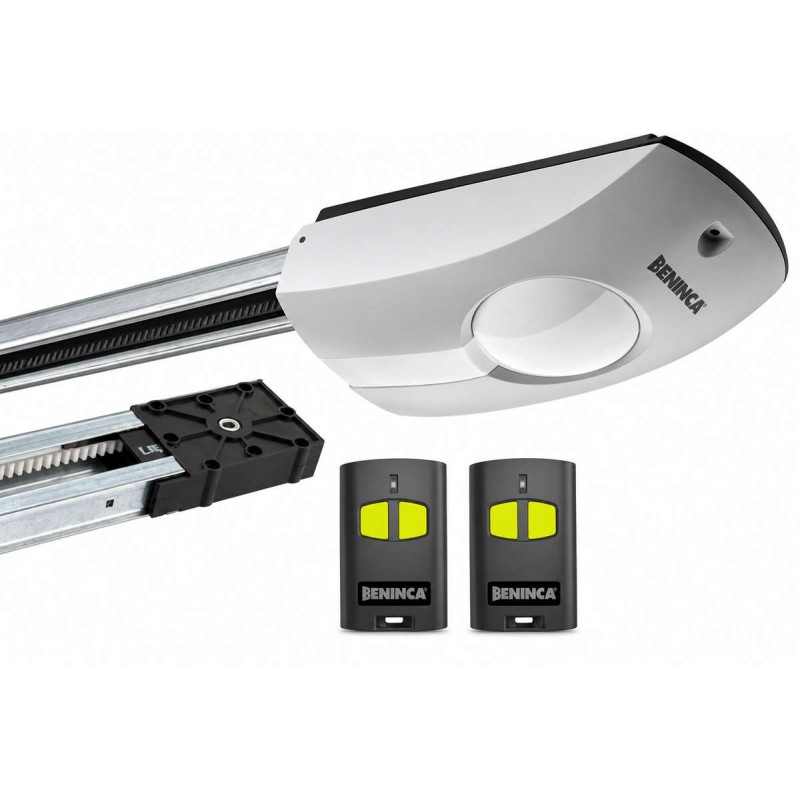

BENINCA JM.4ESA Garage Door Opener 1200N UAE

The BENINCA JM.4ESA Garage Door Opener is a powerful 24V DC automatic sectional door motor designed for intensive commercial use and garage doors with a maximum surface area of 22 m². Delivering 1200 N thrust, the JM.4ESA combines an integrated electronic control unit, encoder and advanced safety technology for reliable, precise and smooth automatic door operation.

The BENINCA JM.4ESA operates from a 230V AC power supply with a 24V DC motor and is specifically designed for intensive-use applications. With an opening speed of approximately 8.9 metres per minute, it provides dependable automation for large sectional garage doors and commercial vehicle entrances.

An integrated encoder continuously monitors door movement and provides accurate position control. Combined with amperometric obstacle detection and the BENINCA STC System, the JM.4ESA provides anti-crushing protection and intelligent torque management according to the actual position and requirements of the door.

The integrated CP.J4ESA control unit features an LCD display, 433.92 MHz radio receiver, ESA energy-saving technology, automatic operating parameter setup, adjustable slowdowns, soft start and maintenance monitoring. Up to 64 transmitters can be stored in the integrated receiver.

Key Features

• Genuine BENINCA garage door opener
• Model JM.4ESA
• Designed for commercial sectional garage doors
• Suitable for doors up to 22 m²
• 230V AC power supply
• 24V DC geared motor
• Designed for intensive use
• 1200 N thrust
• Opening speed of 8.9 m/min
• Integrated CP.J4ESA control unit
• Integrated LCD display
• Integrated encoder
• Electronic limit switch with encoder
• STC intelligent torque management system
• Anti-crushing safety system
• Amperometric obstacle detection
• Automatic operating parameter setup
• Adjustable slowdowns
• Soft Start function
• Integrated 433.92 MHz radio receiver
• Memory for up to 64 transmitters
• Advanced Rolling Code support
• Rolling Code support
• Fixed Code support
• ESA energy-saving system
• Energy-saving courtesy light
• Optional integrated battery backup
• Quick hooking system for door connection
• Maintenance warning function
• Programming access password
• IP40 protection rating
• Rail supplied separately

Technical Specifications

1200N Commercial Garage Door Automation

The BENINCA JM.4ESA 1200N garage door opener is engineered for commercial sectional doors with a maximum surface area of 22 m². Its powerful 24V DC geared motor provides dependable operation for larger and frequently operated garage doors.

The intensive-use design makes the JM.4ESA suitable for commercial garages, residential compounds, workshops and other locations requiring frequent automatic sectional door operation.

24V Intensive-Use Motor

The JM.4ESA combines a 230V AC power supply with a 24V DC geared motor. The motor provides 1200 N of thrust and an opening speed of approximately 8.9 m/min for smooth and controlled sectional door movement.

Encoder & Anti-Crushing Safety

The integrated encoder provides precise monitoring of the sectional door throughout the opening and closing cycle. The electronic limit switch also uses encoder information for accurate door positioning.

The control system combines encoder management with amperometric obstacle detection to provide anti-crushing protection during automatic operation.

STC Intelligent Torque Management

The BENINCA STC System automatically calculates the required motor torque at different points throughout the door travel. This allows the control system to identify critical points and adjust motor force according to actual operating requirements.

The result is more precise torque management and improved operational safety for large sectional garage doors.

Integrated 433.92 MHz Receiver

The integrated 433.92 MHz radio receiver stores up to 64 transmitters and supports Advanced Rolling Code, Rolling Code and Fixed Code radio encoding systems.

Compatible BENINCA remote controls can therefore be programmed directly into the JM.4ESA control unit without requiring a separate external receiver.

ESA Energy Saving System

The integrated ESA System helps reduce energy consumption during standby operation. When the optional SE.MODULE is installed, standby power consumption complies with European Regulation (EU) 2023/826.

Battery Backup Option

The JM.4ESA can operate with compatible backup batteries integrated into the motor, allowing the sectional door to continue operating during a temporary mains power failure.

Important: battery operation is not available when the SE.MODULE is installed.

Applications

• Commercial sectional garage doors
• Sectional doors up to 22 m²
• Commercial garages
• Residential compound garages
• Workshop sectional doors
• Commercial parking garages
• Large automatic garage doors
• Frequently operated sectional doors
• Intensive-use garage door automation

BENINCA JM.4ESA Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies BENINCA JM.4ESA garage door openers in UAE, together with BENINCA remote controls, photocells, flashing lights, sectional door rails, backup battery accessories and garage door automation accessories.

Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
