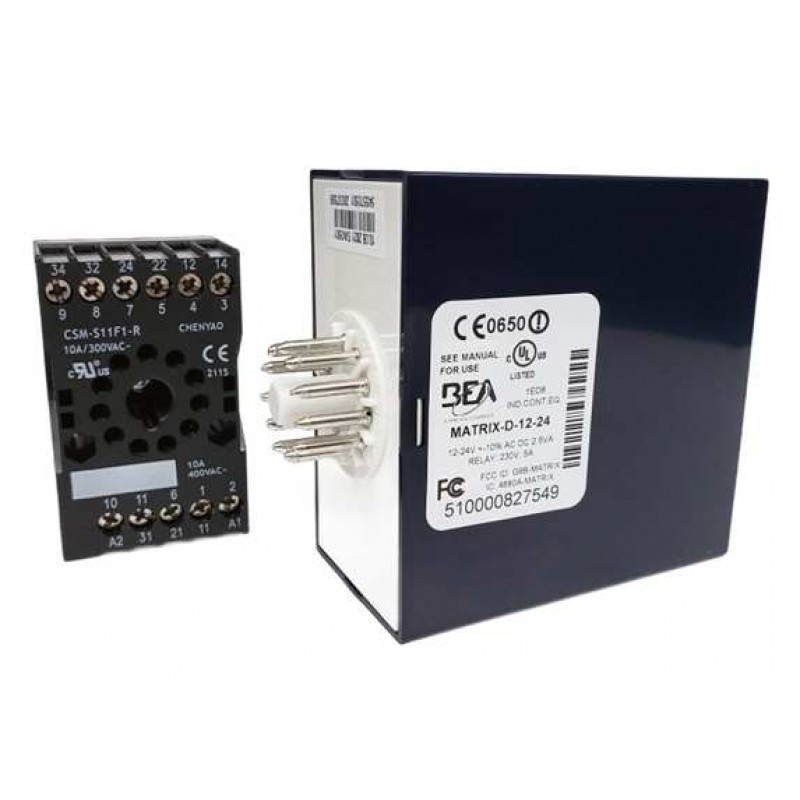

BEA MATRIX-D12-24 Double Channel Loop Detector UAE
Price 650 AEDIn Stock
The BEA MATRIX-D12-24 Double Channel Loop Detector is a professional dual-channel inductive vehicle detector designed for automatic gates, parking barriers and vehicle access control systems. Supporting two independent loops (Loop A and Loop B), it provides accurate vehicle detection for applications requiring advanced traffic control, entry and exit detection, vehicle counting and directional logic.
Operating on a flexible 12–24V AC/DC power supply, the BEA MATRIX-D12-24 features independent sensitivity adjustment for each loop, presence and pulse detection modes, automatic sensitivity boost and adjustable presence time. Its dual-loop design makes it particularly suitable for parking facilities and access points where vehicle direction or movement between two detection zones needs to be identified.
With a fast reaction time of approximately 50ms and two relay outputs, the MATRIX-D12-24 can be integrated with parking barriers, sliding gate motors, swing gate motors, industrial doors and access control equipment for reliable vehicle detection and automation.
Key Features
- Genuine BEA MATRIX dual-channel loop detector
- Two independent vehicle detection loops
- 12–24V AC/DC universal power supply
- Independent sensitivity adjustment for each loop
- Directional vehicle detection capability
- Suitable for entry and exit detection
- Presence and pulse detection modes
- Automatic Sensitivity Boost (ASB)
- Adjustable presence time from 1 minute to infinite
- Approximately 50ms reaction time
- LED indicators for power and loop status
- Two relay outputs
- Suitable for professional parking and gate automation systems
Technical Specifications
| Brand | BEA |
| Model | MATRIX-D12-24 |
| Product Type | Double Channel Vehicle Loop Detector |
| Detection Technology | Inductive Loop Detection |
| Channels | 2 Channels / 2 Loops |
| Power Supply | 12–24V AC/DC |
| Frequency Range | 20 kHz – 130 kHz |
| Inductance Range | 20 µH – 1000 µH |
| Sensitivity | 0.005% – 0.5% Adjustable |
| Reaction Time | Approximately 50ms |
| Detection Modes | Presence / Pulse |
| Outputs | 2 Relay Outputs (5A Max) |
| Operating Temperature | -30°C to +70°C |
| Protection Rating | IP40 |
| Mounting | 11-Pin Plug-In Base |
Dual Loop Vehicle Detection
The BEA MATRIX-D12-24 dual loop detector can monitor two independent inductive loops installed beneath the road surface. Using two detection zones allows the system to determine vehicle movement and direction, making it suitable for more advanced parking and traffic control applications than a standard single-channel loop detector.
Depending on the connected control system, the two loops can be used for entry and exit detection, vehicle counting, directional control, barrier activation and vehicle presence detection.
Applications
- Parking barrier and boom gate systems
- Automatic sliding gates
- Automatic swing gates
- Parking entrance and exit control
- Vehicle direction detection
- Vehicle counting systems
- Smart parking systems
- Toll gate systems
- Industrial access control
- Commercial parking facilities
Package Includes
- 1 × BEA MATRIX-D12-24 Double Channel Loop Detector
- 1 × 11-Pin Mounting Base
- 1 × User Manual
Why Choose BEA MATRIX-D12-24?
The BEA MATRIX-D12-24 loop detector is an excellent solution when two independent vehicle detection loops are required. Its dual-channel design, directional detection capability, adjustable sensitivity and 12–24V AC/DC operation make it suitable for professional parking barrier, automatic gate and vehicle access control installations.
BEA Loop Detector Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BEA loop detectors in UAE for parking barriers, automatic gates, industrial doors and vehicle access control systems. We also supply loop detector cables, gate motors, parking barriers and access control accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
