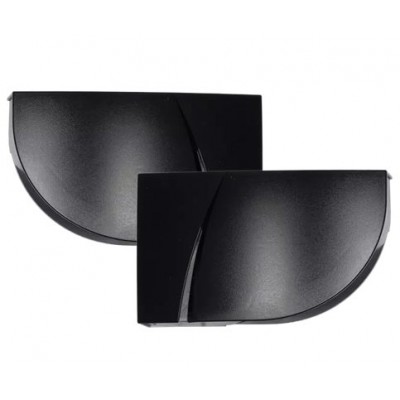

BEA LZR-FLATSCAN 3D SW Swing Door Safety Sensor UAE
Price 0 AEDIn Stock
The BEA LZR-FLATSCAN 3D SW Swing Door Safety Sensor is an advanced laser-based sensor designed for volumetric safety and intentional touchless opening of automatic swing doors. Using precise laser Time-of-Flight technology, the sensor creates a three-dimensional detection field around the door to help protect pedestrians and objects throughout the complete swing door opening area.
Unlike conventional door-mounted safety sensors, the LZR-FLATSCAN 3D SW uses four high-resolution laser curtains to provide comprehensive coverage around the moving door leaf. It monitors critical areas including the door wing, hinge zone and leading edge, helping the automatic door avoid unexpected movement when a person or object is detected.
In addition to advanced safety detection, the sensor provides a dedicated third output for intentional touchless door activation. Virtual opening zones can be configured within the detection field, allowing users to activate the automatic swing door without touching a physical push button.
Key Features
- Genuine BEA LZR-FLATSCAN 3D SW sensor
- Designed for automatic swing doors
- Laser Time-of-Flight detection technology
- 3D volumetric presence detection
- Four high-resolution laser curtains
- Complete door wing safety coverage
- Advanced hinge-area protection
- Leading edge protection
- Detects people and objects in the door pathway
- High-resolution detection for small objects
- Intentional touchless door opening function
- Supports configurable virtual opening zones
- Three independent electronic relay outputs
- Maximum detection range up to 4 metres diagonally
- 12–24V DC power supply
- Low power consumption
- Class 1 infrared laser
- IP44 protection rating
- Suitable for professional automatic swing door installations
Technical Specifications
| Brand | BEA |
| Model | LZR-FLATSCAN 3D SW |
| Product Type | Swing Door Safety & Activation Sensor |
| Technology | Laser Scanner / Time-of-Flight |
| Detection Mode | Presence Detection |
| Detection Curtains | 4 Laser Curtains |
| Maximum Detection Range | 4m Diagonal at 2% Reflectivity |
| Door Wing Safety Angle | 80° |
| Hinge Area Safety Angle | 20° |
| Angular Resolution | C1: 0.2° / C2: 1° / C3: 1.7° / C4: 2.5° |
| Typical Minimum Object Size | 2cm at 4m in Curtain C1 |
| Laser Wavelength | 905nm |
| Laser Classification | Class 1 |
| Power Supply | 12–24V DC ±15% |
| Power Consumption | ≤ 2W |
| Response Time | Typical <120ms / Maximum 220ms (Curtain 2) |
| Outputs | 3 Electronic Relays |
| Maximum Switching Voltage | 42V AC/DC |
| Maximum Switching Current | 100mA |
| Status Indicator | 1 RGB LED |
| Protection Rating | IP44 |
| Operating Temperature | -25°C to +60°C |
| Humidity | 0–95% Non-Condensing |
| Dimensions | 145 × 88 × 60mm |
3D Volumetric Swing Door Protection
The BEA LZR-FLATSCAN 3D SW laser safety sensor creates a volumetric detection field around the automatic swing door using four laser curtains. This allows the sensor to monitor people and objects throughout the door's movement area instead of detecting only a narrow safety zone.
When a pedestrian or object is detected in the door pathway, the sensor communicates with the automatic door operator so that the door can respond according to the configured safety logic. This provides enhanced protection and comfortable automatic door operation in busy pedestrian environments.
Hinge & Leading Edge Safety
High-resolution laser detection provides additional protection around critical areas of the automatic swing door. The sensor covers the hinge zone and can detect small objects in this area, helping reduce the risk of fingers, hands or other objects becoming trapped.
The leading edge area can also be protected so the automatic door can stop or respond when an obstacle is detected during closing.
Touchless Door Opening
In addition to safety detection, the LZR-FLATSCAN 3D SW features a third output dedicated to automatic door activation. Virtual opening zones can be configured within the laser detection field, allowing users to intentionally activate the automatic door without touching a physical push button.
This contactless activation function is ideal for hospitals, clinics, offices, commercial buildings and other locations where convenient and hygienic automatic door operation is required.
Applications
- Automatic swing doors
- Low-energy automatic swing doors
- Hospital and healthcare entrances
- Clinics and medical facilities
- Hotels and hospitality buildings
- Shopping malls and retail stores
- Office and commercial buildings
- Public buildings
- High-traffic pedestrian entrances
- Touchless automatic door applications
Why Choose BEA LZR-FLATSCAN 3D SW?
The BEA LZR-FLATSCAN 3D SW combines advanced swing door safety and touchless activation in one laser sensor. Its four volumetric laser curtains provide comprehensive detection around the door leaf, hinge and leading edge, while the additional activation output allows configurable touchless opening zones.
This makes the LZR-FLATSCAN 3D SW an excellent solution for professional automatic swing door installations requiring advanced pedestrian protection, precise presence detection and convenient contactless activation.
BEA Automatic Door Safety Sensor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BEA LZR-FLATSCAN 3D SW sensors in UAE, together with automatic swing door operators, BEA radar sensors, safety sensors, touchless activation devices and automatic door accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
