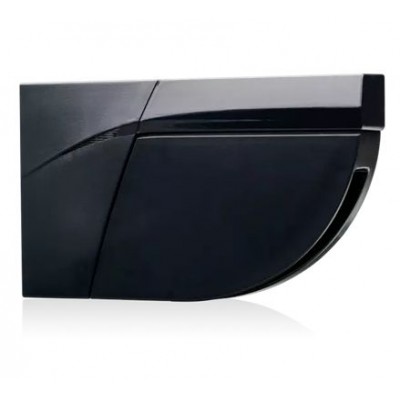

BEA LZR-FLATSCAN SW Swing Door Safety Sensor UAE
Price 0 AEDIn Stock
The BEA LZR-FLATSCAN SW Swing Door Safety Sensor is an advanced laser-based presence sensor designed specifically for automatic swing doors. Using precise Time-of-Flight laser technology, it provides reliable protection across the moving door wing and critical hinge area, helping improve pedestrian safety during automatic door operation.
A single BEA LZR-FLATSCAN SW can cover the complete swing door leaf, including the hinge and pinch zone. The sensor generates 170 measurement points to accurately monitor the area around the moving door and detect pedestrians or objects that may be in its path.
Unlike conventional safety technologies that can be affected by flooring or surrounding objects, the FLATSCAN SW laser technology provides stable detection across different environments. Its compact door-mounted design makes it suitable for hospitals, hotels, offices, shopping malls, retail stores and other professional automatic swing door installations.
Key Features
- Genuine BEA LZR-FLATSCAN SW safety sensor
- Designed specifically for automatic swing doors
- Laser Time-of-Flight presence detection technology
- 170 measurement points
- Complete door wing safety coverage
- Hinge and pinch-zone protection
- High-resolution detection around the hinge area
- Maximum detection range up to 4 metres diagonally
- 90° door wing safety field
- 16° pinch-zone safety field
- Compact door-mounted design
- Independent of different flooring types
- Less affected by surrounding walls and objects
- Fast and intuitive installation
- 12–24V DC power supply
- Low power consumption
- IP54 protection rating
- Suitable for professional automatic door installations
Technical Specifications
| Brand | BEA |
| Model | LZR-FLATSCAN SW |
| Product Type | Automatic Swing Door Safety Sensor |
| Technology | Laser Scanner / Time-of-Flight |
| Detection Mode | Presence Detection |
| Measurement Points | 170 Points |
| Maximum Detection Range | 4m Diagonal at 2% Reflectivity |
| Door Wing Safety Field | 90° |
| Pinch Zone Safety Field | 16° |
| Door Wing Angular Resolution | 1.3° |
| Pinch Zone Angular Resolution | 0.2° |
| Minimum Object Size – Door Wing | 10cm @ 4m |
| Minimum Object Size – Pinch Zone | 2cm @ 4m |
| Laser Wavelength | 905nm |
| Laser Classification | Class 1 |
| Power Supply | 12–24V DC ±15% |
| Power Consumption | ≤ 2W |
| Door Wing Response Time | Maximum 50ms |
| Pinch Zone Response Time | Maximum 90ms |
| Outputs | 2 Electronic Relays |
| Maximum Switching Voltage | 42V AC/DC |
| Maximum Switching Current | 100mA |
| LED Indicator | Bi-Colour LED |
| Protection Rating | IP54 |
| Operating Temperature | -30°C to +60°C |
| Humidity | 0–95% Non-Condensing |
| Minimum Door Wing Speed | 2°/sec |
| Dimensions | 142 × 85 × 33mm |
Door Wing Safety Protection
The BEA LZR-FLATSCAN SW automatic swing door sensor monitors the moving door wing using high-resolution laser detection. Its 90° safety field provides coverage across the door leaf to detect pedestrians and objects positioned within the swing path.
When an object or person is detected, the sensor communicates with the compatible automatic door operator so the door can respond according to the configured safety settings.
Hinge & Pinch Zone Protection
One of the most important features of the LZR-FLATSCAN SW is its dedicated hinge-area protection. The sensor uses 100 measurement points across a 16° pinch-zone field to monitor this critical area.
With a typical minimum detectable object size of approximately 2cm at 4 metres in the pinch zone under the specified configuration, the sensor provides high-resolution detection designed to help protect hands and fingers around the hinge area.
Laser Time-of-Flight Technology
The LZR-FLATSCAN SW uses 905nm Class 1 laser Time-of-Flight technology to measure the surrounding area. Laser-based detection allows the sensor to operate reliably with many different flooring materials and nearby environmental features.
This makes the sensor suitable for installations with reflective flooring, carpets, slatted flooring and other challenging surfaces where conventional detection technologies may be more affected by the surroundings.
Applications
- Automatic swing doors
- Commercial automatic entrances
- Hospital and healthcare doors
- Hotels and hospitality entrances
- Shopping malls and retail stores
- Office buildings
- Public buildings
- High-traffic pedestrian entrances
- Automatic doors requiring hinge-zone protection
Why Choose BEA LZR-FLATSCAN SW?
The BEA LZR-FLATSCAN SW swing door safety sensor combines complete door-wing monitoring and high-resolution pinch-zone protection in one compact door-mounted sensor. Its 170 measurement points, laser Time-of-Flight technology and dedicated hinge protection make it an excellent solution for professional automatic swing door safety applications.
BEA Automatic Door Safety Sensor Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies BEA LZR-FLATSCAN SW safety sensors in UAE, together with automatic swing door operators, radar sensors, safety sensors and automatic door accessories.
Supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
