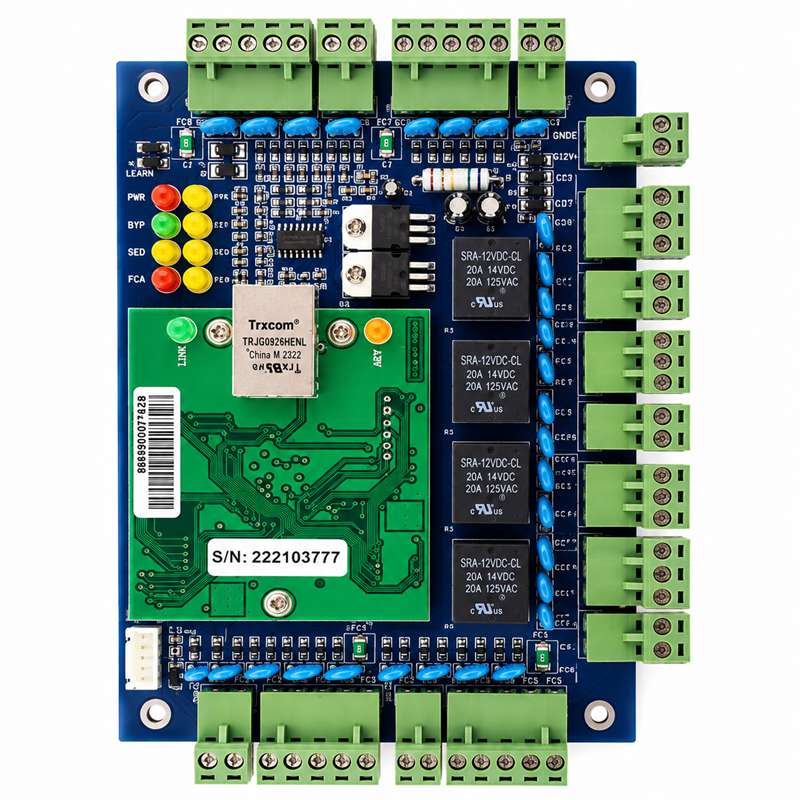

ACB-004 4-Door Network Access Control Controller UAE

The ACB-004 4 Door Network Access Control Controller is a professional multi-door access control panel designed to manage secure entry for up to 4 doors from one centralized controller. It is ideal for offices, commercial buildings, warehouses, factories, apartment buildings and other properties requiring professional network-based access management.

The ACB-004 features built-in TCP/IP 10M/100M adaptive Ethernet communication for network connectivity and supports compatible Wiegand 26 RFID readers. The controller can be integrated with access control software for centralized management of users, doors and access permissions.

Operating from a 12V DC 4–7A power supply, the ACB-004 provides adjustable door opening time from 1 to 600 seconds. Free software and SDK support make the controller suitable for professional and customized access control projects.

Key Features

• Professional 4 door access control controller
• Model ACB-004
• Controls up to 4 doors
• Centralized multi-door access management
• Built-in TCP/IP network communication
• 10M/100M adaptive Ethernet
• Supports Wiegand 26 RFID readers
• 12V DC 4–7A power supply
• Low circuit board power consumption
• Adjustable door opening time
• 1–600 seconds door unlock setting
• Free access control software
• SDK support for integration
• APP / Web-server support according to system configuration
• Suitable for RFID card access control
• Suitable for electric lock systems
• Residential, commercial and industrial applications

Technical Specifications

ACB-004 4 Door Access Control Controller

The ACB-004 provides centralized electronic access management for up to four separate doors. Instead of installing individual standalone controllers at every entrance, one network controller can form the central control point for a professional four-door access system.

The controller can be combined with compatible RFID readers, electric locks, exit buttons and access control accessories to create a complete multi-door security solution.

TCP/IP Network Access Control

The ACB-004 features built-in TCP/IP Ethernet communication, allowing the controller to communicate with compatible access management software over a computer network.

Its 10M/100M adaptive network interface provides convenient connectivity for offices, commercial buildings and other professional access control installations.

4 Door Centralized Access Management

One ACB-004 controller can manage four controlled doors, making it an efficient solution for buildings with multiple secure entrances.

Centralized management provides a more organized access control solution for offices, factories, warehouses and commercial properties requiring several controlled doors.

Wiegand 26 RFID Reader Support

The ACB-004 supports Wiegand 26 reader input for connection to compatible RFID access control readers.

Compatible card readers can be installed at controlled entrances to identify authorised users before the controller releases the corresponding electric lock.

RFID Card Access Control

When combined with compatible RFID readers, the ACB-004 can provide centralized RFID card access for multiple doors.

Authorised users present their RFID cards or compatible credentials at the reader, while the access control system determines whether access should be granted.

12V DC Access Control Controller

The ACB-004 operates from a 12V DC 4–7A power supply.

The complete power supply should be selected according to the controller, connected RFID readers, electric locks and other access control accessories.

Low Power Consumption

The controller PCB has a specified power consumption of less than 100mA.

The total system power requirement will be higher after readers, electric locks and other accessories are connected.

Adjustable Door Unlock Time

The ACB-004 supports adjustable door opening time from 1 to 600 seconds.

This allows the installer to configure an appropriate unlock duration according to the entrance type, electric lock and operating requirements.

Free Access Control Software

The controller supports compatible access control management software for centralized system configuration and management.

A network-based system provides a convenient solution for managing multiple controlled doors from one access control platform.

SDK Support

The ACB-004 provides SDK support for compatible software integration and customized access control applications.

Third-party integration requirements should be confirmed according to the required software platform and project specification.

Electric Lock Integration

The ACB-004 can form part of access control installations using different compatible electronic locking solutions.

• Electromagnetic locks
• Electric strike locks
• Electric bolt locks
• Electric rim locks
• Automatic door locking systems

Exit Push Button Integration

Compatible exit push buttons can be installed on the secure side of each controlled entrance to provide convenient door release.

This allows controlled RFID entry while providing simple push-button exit according to the system design.

Complete 4 Door Access Control System

A typical four-door access control installation can include:

• 1 × ACB-004 4 Door Network Access Controller
• Compatible Wiegand RFID readers
• Electric locks for controlled doors
• Exit push buttons
• 12V DC access control power supply
• Backup battery where required
• RFID cards or key fobs
• Emergency break glass units where required
• Ethernet network connection
• Access control management software

4 Door Office Access Control

The ACB-004 is ideal for offices requiring controlled access to several areas such as the main entrance, management office, server room and storage room.

Different doors can form part of one centralized network access control installation rather than operating as separate standalone systems.

Commercial & Industrial Access Control

The ACB-004 is suitable for commercial and industrial properties requiring controlled access to multiple entrances.

It can be used for offices, warehouses, factories, business centres and other facilities where access must be limited to authorised personnel.

Access Control Applications

• Office buildings
• Commercial properties
• Residential buildings
• Apartment buildings
• Warehouses
• Factories
• Staff entrances
• Server rooms
• Storage areas
• Schools and universities
• Clinics and medical centres
• Business centres
• Restricted-access areas

1 Door, 2 Door & 4 Door Access Controllers

The correct network access controller can be selected according to the number of entrances requiring electronic access management.

• ACB-001 – 1 Door Access Control Controller
• ACB-002 – 2 Door Access Control Controller
• ACB-004 – 4 Door Access Control Controller

For larger installations, multiple network controllers can be planned according to the building layout and access control requirements.

Professional ACB-004 Installation

Professional installation is recommended for the ACB-004 to ensure correct network configuration, reader wiring, electric lock connections, exit button wiring and software setup.

After installation, all four controlled doors should be tested for authorised and unauthorised credentials, electric lock operation, exit operation and network communication before commissioning.

4 Door Access Control Controller Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies 4 door network access control controllers in UAE for residential, commercial and industrial security applications.

Supply, professional installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
