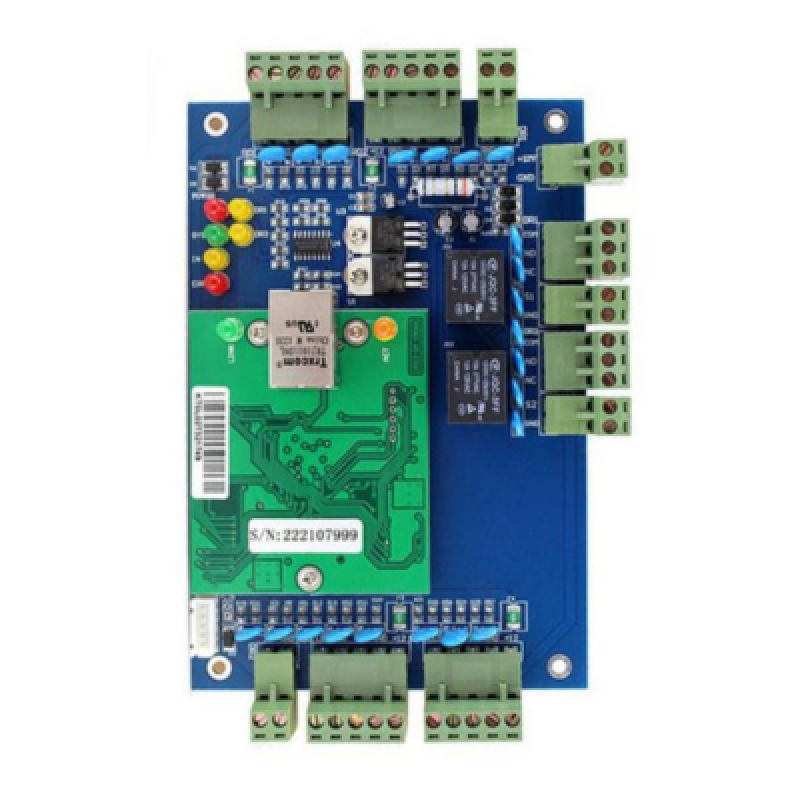

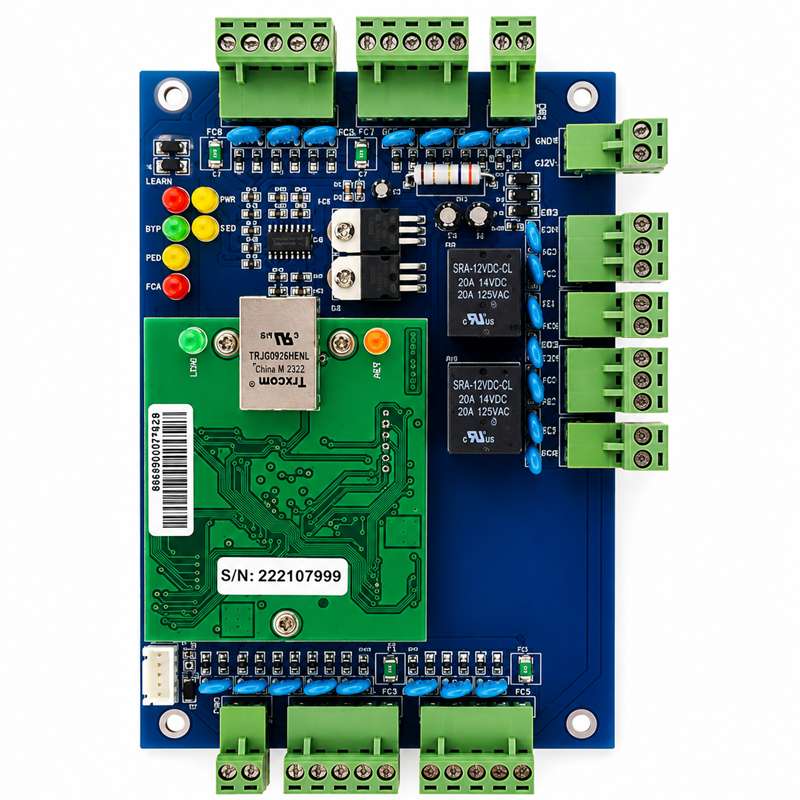

ACB-002 2-Door Network Access Control Controller UAE
Price 350 AEDIn Stock
The ACB-002 2 Door Network Access Control Controller is a professional TCP/IP access control panel designed to manage secure entry for two doors from one central controller. It is suitable for offices, commercial buildings, warehouses, factories, residential buildings and other properties requiring reliable multi-door access management.
The controller features built-in TCP/IP 10M/100M adaptive Ethernet communication for connection to a computer network and supports compatible Wiegand 26 RFID card readers. Access permissions, users and door functions can be managed using compatible access control software.
The ACB-002 operates from a 12V DC 4–7A power supply and provides adjustable door opening time from 1 to 600 seconds. Free software and SDK support provide additional flexibility for professional access control installations and system integration.
Key Features
- Professional 2 door access control controller
- Model ACB-002
- Controls 2 independent doors
- Built-in TCP/IP network communication
- 10M/100M adaptive Ethernet
- Supports Wiegand 26 card readers
- Network-based access management
- 12V DC 4–7A power supply
- Low controller power consumption
- Adjustable door opening time
- Door unlock time from 1–600 seconds
- Free access control software
- SDK support for system integration
- Suitable for RFID access control systems
- Suitable for electric lock systems
- Suitable for residential and commercial buildings
Technical Specifications
| Model | ACB-002 |
| Product Type | 2 Door Network Access Control Controller |
| Doors Controlled | 2 Doors |
| Communication | TCP/IP 10M/100M Adaptive |
| Reader Input | Wiegand 26 |
| Power Supply | 12V DC 4–7A |
| PCB Power Consumption | Less Than 100mA |
| Door Opening Time | 1–600 Seconds Adjustable |
| PCB Size | 160 × 106 mm |
| Controller Case Size | 273 × 228 × 65 mm |
| Software | Free Access Control Software |
| SDK | Supported |
| Application | 2 Door Network Access Control |
ACB-002 2 Door Access Control Controller
The ACB-002 provides centralized electronic access management for two separate doors. It is designed for installations where multiple entrances need to be managed through one network access control system.
The controller can form the central part of a complete access control installation consisting of RFID readers, electric locks, exit buttons, power supplies and compatible security accessories.
TCP/IP Network Access Control
The ACB-002 features built-in TCP/IP Ethernet communication, allowing the access control panel to communicate with compatible management software over a computer network.
The controller supports 10M/100M adaptive TCP/IP communication, providing convenient network connectivity for professional access control installations.
2 Door Access Management
One ACB-002 controller can manage two independent doors, making it suitable for offices and buildings with multiple controlled entrances.
Each door can form part of a complete access control configuration with compatible RFID readers, electric locks and exit devices.
Wiegand 26 RFID Reader Support
The controller supports Wiegand 26 reader input for connection to compatible RFID access control readers.
This allows the installer to select compatible proximity card readers, keypad readers and other Wiegand-based access devices according to the requirements of the installation.
RFID Card Access Control
When connected to compatible RFID readers, the ACB-002 can form part of a complete RFID card access system for two doors.
Authorised users present their RFID credentials at the reader, while the access control system determines whether permission should be granted for the selected entrance.
12V DC Access Control System
The ACB-002 controller is designed for a 12V DC 4–7A power supply.
The complete power supply should be correctly selected according to the controller, number of readers, electric locks and other connected access control accessories.
Adjustable Door Opening Time
The controller supports an adjustable door opening time from 1 to 600 seconds.
This allows the installer to configure the required unlock duration according to the type of entrance, electric lock and operating requirements.
Free Access Control Software
The ACB-002 supports compatible access control management software for configuring users and managing the connected doors.
Network management provides a convenient way to operate multi-door access control systems from a central computer.
SDK Support
The controller provides SDK support for compatible third-party software integration and customized access control applications.
SDK integration requirements should be confirmed according to the software platform and project requirements before installation.
RFID Reader Connection
Compatible Wiegand RFID readers can be installed at the controlled entrances to identify authorised users.
The selected reader should use the communication format supported by the ACB-002 controller.
Electric Lock Integration
The ACB-002 can form part of access control installations using compatible electric locking systems.
- Electromagnetic locks
- Electric strike locks
- Electric bolt locks
- Electric rim locks
- Automatic door locking systems
Exit Push Button Integration
Exit push buttons can be incorporated into the two-door access control installation to provide convenient door release from the secure side of the entrance.
This provides controlled RFID entry together with simple push-button exit where required.
Complete 2 Door Access Control System
A typical two-door access control installation can include:
- 1 × ACB-002 2 Door Access Controller
- Compatible Wiegand RFID readers
- Electric locks for Door 1 and Door 2
- Exit push buttons
- 12V DC access control power supply
- Backup battery where required
- RFID cards or key fobs
- Emergency break glass units where required
- Network connection
- Access control management software
Two Door Office Access Control
The ACB-002 is suitable for offices requiring controlled access to two separate areas, such as a main entrance and staff entrance, reception and server room, or office and storage area.
A network access controller provides centralized management rather than requiring separate standalone controllers at every door.
Commercial Access Control System
The ACB-002 is suitable for commercial properties requiring professional electronic access management for multiple entrances.
It can be used in offices, shops, warehouses, factories and other facilities where access should be limited to authorised users.
Access Control Applications
- Office buildings
- Commercial properties
- Residential buildings
- Apartment buildings
- Warehouses
- Factories
- Staff entrances
- Server rooms
- Storage areas
- Schools
- Clinics
- Business centres
- Restricted-access areas
1 Door, 2 Door & 4 Door Access Controllers
Different network controller sizes can be selected according to the number of entrances requiring access management.
- ACB-001 – 1 Door Access Control Controller
- ACB-002 – 2 Door Access Control Controller
- 4 Door Network Access Control Controller
Selecting the correct controller according to the number of doors helps provide a cleaner installation and allows future access control expansion to be planned correctly.
Professional 2 Door Access Control Installation
Professional installation is recommended for the ACB-002 to ensure correct network configuration, reader wiring, electric lock connection, exit button wiring and software setup.
After installation, both doors should be fully tested for valid and invalid credentials, lock operation, exit operation and network communication before the access control system is placed into service.
2 Door Access Control Controller Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies 2 door network access control controllers in UAE for residential, commercial and industrial security applications.
Supply, professional installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
