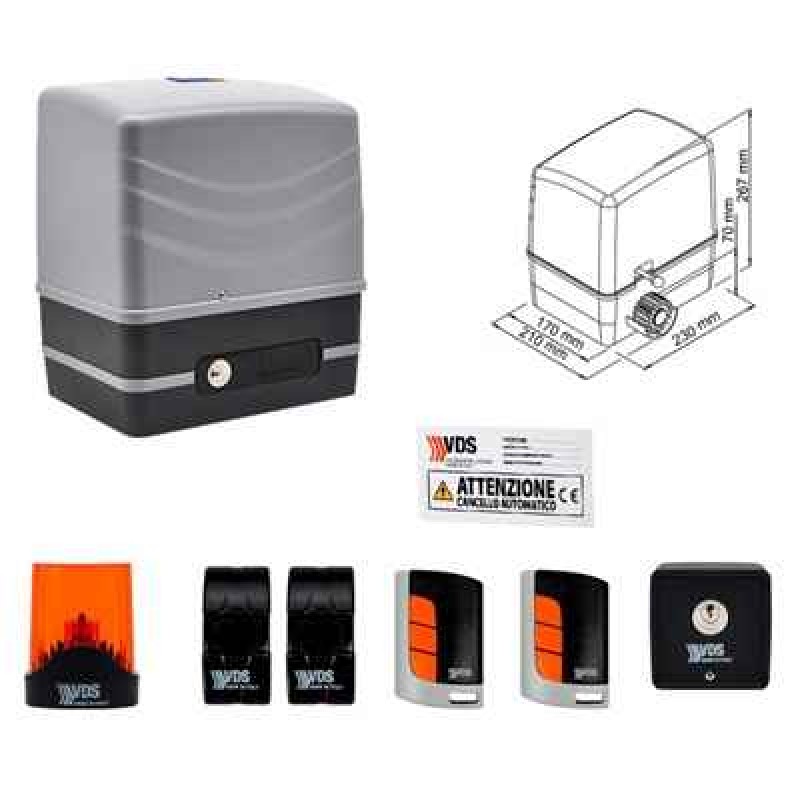

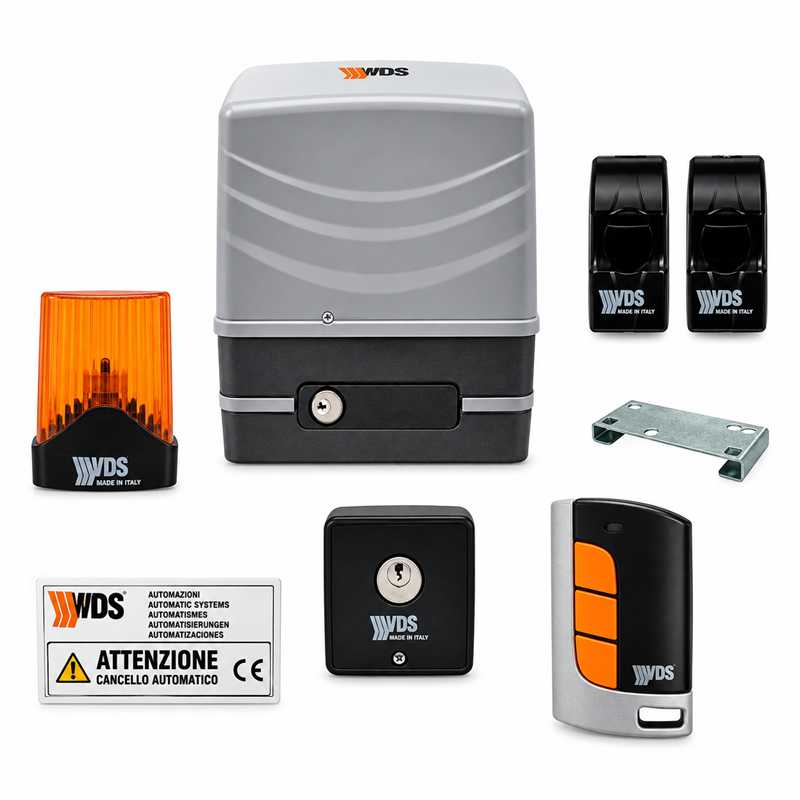

VDS SIMPLY 600 KG Sliding Gate Motor UAE
Price 1,499 AEDIn Stock
The VDS SIMPLY 600 KG Sliding Gate Motor is a reliable Italian automatic sliding gate opener designed for residential and collective gate automation. Manufactured by VDS Automation, the SIMPLY combines durable mechanical construction, quiet operation and easy electronic control for dependable everyday gate automation.
The VDS SIMPLY 230V model is suitable for sliding gates weighing up to 600 kg. It features a powerful 250W electric motor, M4-Z12 pinion, electronic torque control and a gate movement speed of approximately 10 metres per minute.
With its die-cast aluminium structure, steel and cast gears, lithium-grease lubrication and IP44 protection, the VDS SIMPLY is designed for reliable automatic gate operation in residential villas, buildings and compatible commercial entrances.
Key Features
- Original VDS Automation sliding gate motor
- VDS SIMPLY 230V model
- Suitable for sliding gates up to 600 kg
- 230V AC power supply
- 250W absorbed power
- 1400 RPM motor speed
- Gate speed approximately 10 m/min
- 50% frequency of use
- Semi-intensive operating cycle
- Very quiet operation below 30 dBA
- Die-cast aluminium structure
- Powder-painted motor housing
- Steel and cast internal gears
- Lithium-grease lubrication
- Electronic torque control
- Pre-wired for easier installation
- Easy programming software
- Manual release with customised key
- Available with or without encoder
- Available with or without control unit
- Anti-squashing function with VDS electronics
- Slowing-down function with VDS electronics
- IP44 protection rating
Technical Specifications
| Brand | VDS Automation |
| Model | SIMPLY 230V |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 600 KG |
| Power Supply | 230V AC |
| Motor Speed | 1400 RPM |
| Average Absorption | 1.3 A |
| Absorbed Power | 250 W |
| Pinion | M4-Z12 |
| Condenser | 12.5 µF |
| Gate Speed | 10 m/min |
| Frequency of Use | 50% |
| Operating Cycle | Semi-Intensive |
| Operator Weight | 8 KG |
| Noise Level | < 30 dBA |
| Operating Temperature | -20°C to +55°C |
| Protection Rating | IP44 |
VDS SIMPLY 600 KG Sliding Gate Opener
The VDS SIMPLY is designed to automate compatible sliding gates weighing up to 600 kg.
It is an excellent choice for villa gates, residential entrances, apartment buildings and other properties requiring reliable automatic sliding gate operation.
Made in Italy Gate Automation
VDS Automation manufactures gate automation systems in Italy with a focus on durable mechanical construction and reliable electronic control.
The SIMPLY uses a die-cast aluminium structure with steel and cast internal gears designed for long-term automatic gate operation.
250W High-Performance Motor
The VDS SIMPLY 230V uses a 250W electric motor operating at approximately 1400 RPM.
This provides dependable performance for correctly installed sliding gates weighing up to 600 kg.
10 Metres Per Minute Gate Speed
The VDS SIMPLY 230V provides a nominal sliding gate movement speed of approximately 10 metres per minute.
Actual opening time depends on the gate travel length, control settings and installation conditions.
Very Quiet Gate Operation
The SIMPLY is designed for quiet automatic gate operation, with a specified noise level of less than 30 dBA.
This makes it particularly suitable for villas and residential properties where low operating noise is desirable.
Die-Cast Aluminium Construction
The VDS SIMPLY motor structure is manufactured from die-cast aluminium with a powder-painted finish.
This durable construction helps protect the operator during long-term outdoor gate automation use.
Steel & Cast Internal Gears
The internal mechanical system uses durable steel and cast gears manufactured from solid materials.
These components provide reliable mechanical transmission between the electric motor and sliding gate pinion.
Lithium Grease Lubrication
The mechanical components are lubricated with lithium grease to help protect against corrosion, oxidation and rust.
Correct lubrication helps maintain smooth movement and reliable long-term performance.
Electronic Torque Control
The VDS SIMPLY supports electronic torque control when configured with compatible VDS electronics.
This allows the automation system to manage the force applied during automatic gate movement.
Anti-Squashing Safety Function
When used with compatible VDS electronics, the SIMPLY supports an anti-squashing safety function according to EN 12453.
Correct programming and installation of appropriate safety devices are essential for safe automatic gate operation.
Gate Slowdown Function
The compatible VDS electronic control system provides a slowing-down function to help provide smoother gate movement near the end of the opening and closing cycles.
This helps reduce mechanical shock and provides smoother everyday gate operation.
Manual Emergency Release
The VDS SIMPLY features a manual release mechanism with a customised key.
The manual release allows the sliding gate to be moved manually when required, such as during a power failure or maintenance.
Available with Encoder
The VDS SIMPLY is available in versions with or without an encoder, allowing the operator configuration to be selected according to the required automation system.
Control Unit Protection
VDS uses an air-stop seal on the compatible control-unit box to help protect the electronics against moisture and insects.
This provides additional protection for the electronic components installed inside the automatic gate operator.
Mechanical or Magnetic Limit Switch
The VDS SIMPLY is available with mechanical or magnetic limit-switch configurations, depending on the selected model.
The limit-switch system determines the correct stopping positions at the fully open and fully closed gate positions.
Residential Sliding Gate Motor
The VDS SIMPLY 600 KG is an excellent automatic gate solution for villas, houses, townhouses and other residential properties.
Its quiet operation, compact construction and 600 kg gate capacity make it particularly suitable for everyday residential gate automation.
Collective Gate Automation
VDS also classifies the SIMPLY series for compatible collective gate applications.
For applications requiring more frequent gate cycles, the 24V SIMPLY version provides a higher frequency of use than the standard 230V model.
VDS SIMPLY 230V vs 24V
| Specification | SIMPLY 230V | SIMPLY 24V |
|---|---|---|
| Gate Weight | 600 KG | 600 KG |
| Motor Speed | 1400 RPM | 1800 RPM |
| Power | 250 W | 50 W |
| Gate Speed | 10 m/min | 12 m/min |
| Frequency of Use | 50% | 80% |
| Operating Cycle | Semi-Intensive | Intensive |
Check Gate Size Before Ordering
Before selecting the VDS SIMPLY 600 KG motor, check the actual gate weight, gate length, rack condition, gate wheels, guide rollers and frequency of use.
The gate should move freely by hand before an automatic sliding gate motor is installed.
Professional VDS Gate Motor Installation
Professional installation is recommended to ensure correct motor positioning, gear-rack alignment, limit-switch adjustment, electrical wiring, control-board programming and safety-device operation.
After installation, the sliding gate should be tested through multiple complete opening and closing cycles to confirm smooth and reliable operation.
