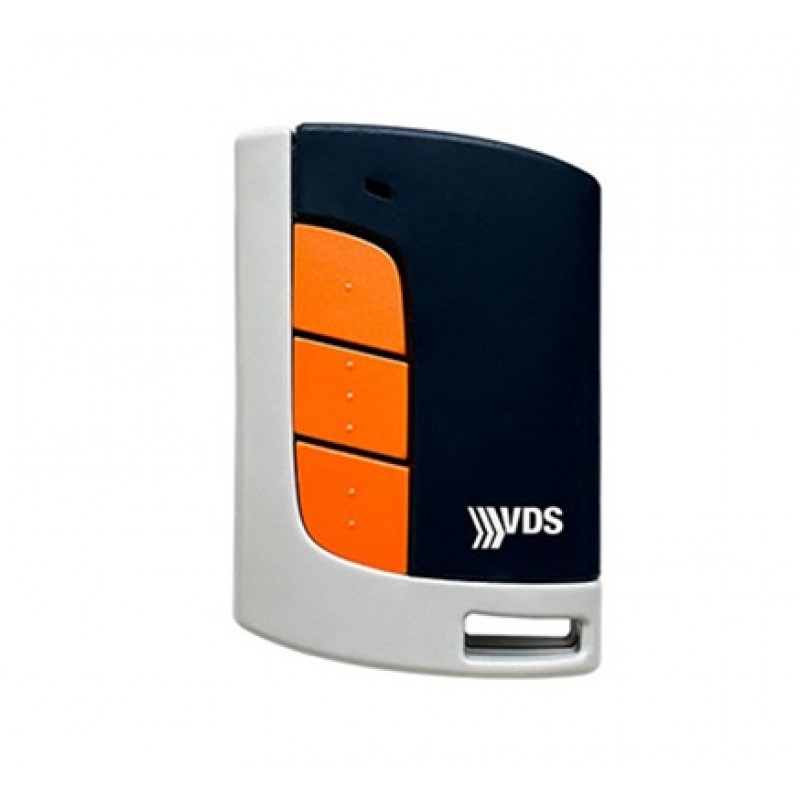

VDS ECO-R Remote Control UAE
Price 99 AEDIn Stock
The VDS ECO-R Remote Control is a secure wireless transmitter designed for compatible VDS automatic gate and access control systems. Operating at 433.92 MHz, the ECO-R uses advanced rolling-code technology for reliable and secure gate operation.
The VDS ECO-R, product code E010, features three physical buttons and can provide up to 5 independent control functions. Its compact design makes it suitable as an additional or replacement remote control for compatible VDS sliding gates, swing gates and other automation systems.
With a specified wireless operating range of up to 100 metres under suitable conditions, the VDS ECO-R provides convenient everyday access control for residential and commercial automatic gate installations.
Key Features
- Original VDS ECO-R remote control
- Model ECO-R
- Product code E010
- 433.92 MHz operating frequency
- Rolling / hopping code technology
- 3 physical control buttons
- Up to 5 independent functions
- Self-learning programming system
- Up to 100 metre operating range*
- 12V A23 alkaline battery
- -12 dBm radiated power
- Operating temperature from -20°C to +85°C
- Suitable for compatible VDS gate automation
- Suitable as replacement or additional remote
- Compact handheld design
*Actual operating range depends on the receiver, surrounding buildings, walls, metal structures, interference and installation conditions.
Technical Specifications
| Brand | VDS Automation |
| Model | ECO-R |
| Product Code | E010 |
| Product Type | Gate Remote Control / Radio Transmitter |
| Frequency | 433.92 MHz |
| Encoding | Hopping / Rolling Code |
| Physical Buttons | 3 |
| Number of Functions | Up to 5 |
| Programming | Self-Learning |
| Battery | 1 × A23 12V Alkaline |
| Operating Range | Up to 100 m* |
| Radiated Power | -12 dBm |
| Operating Temperature | -20°C to +85°C |
| Application | Compatible VDS Gate Automation Systems |
VDS ECO-R 433.92 MHz Remote Control
The VDS ECO-R operates at a radio frequency of 433.92 MHz and is designed for compatible VDS gate automation receivers.
Before ordering a replacement remote, always confirm the frequency and radio system of the existing VDS receiver.
VDS E010 Rolling Code Remote
The ECO-R uses rolling-code technology to provide secure communication between the transmitter and compatible VDS radio receiver.
The transmitted radio code changes during operation, helping protect the automatic gate system against unauthorised copying of a previously transmitted code.
3 Buttons with 5 Control Functions
The VDS ECO-R has three physical buttons but can provide up to five independent control functions.
This allows multiple compatible automation commands to be managed from one compact handheld transmitter when correctly configured with the appropriate receiver.
Up to 100 Metre Operating Range
The VDS ECO-R has a specified wireless operating range of up to approximately 100 metres under suitable conditions.
Actual operating distance can be affected by walls, buildings, metal structures, electrical interference, receiver antenna position and surrounding conditions.
Self-Learning Remote Control
The VDS ECO-R uses a self-learning programming system for compatible VDS receivers.
The exact programming procedure depends on the receiver and control board installed in the automatic gate system.
Special Programming Function
The ECO-R includes a special function used to initiate programming with compatible receiver systems.
Programming should be carried out according to the instructions for the installed VDS radio receiver or gate control board.
12V A23 Battery
The VDS ECO-R is powered by a 12V A23 alkaline battery.
If the operating range becomes shorter or the remote stops responding reliably, the battery should be checked and replaced if necessary.
VDS Sliding Gate Remote Control
The ECO-R can be used with compatible VDS sliding gate automation systems equipped with the appropriate 433.92 MHz rolling-code receiver.
It can provide convenient wireless operation for residential and commercial sliding gate entrances.
VDS Swing Gate Remote Control
The VDS ECO-R can also operate compatible VDS swing gate automation systems using the appropriate radio receiver.
For double-leaf swing gates, the programmed command can operate the complete gate or other supported functions depending on the control-board configuration.
Replacement VDS Remote Control
The VDS ECO-R is suitable as a replacement for a compatible lost, damaged or non-working VDS remote control.
Before ordering, compare the existing remote model, frequency and receiver type to ensure compatibility.
Additional VDS Gate Remote
Additional ECO-R transmitters can be programmed into compatible VDS receivers where family members, employees, tenants or other authorised users require their own remote controls.
The maximum number of remotes depends on the memory capacity of the installed radio receiver.
VDS ECO-R Remote Programming
The ECO-R must be programmed into the compatible VDS receiver before it can operate the automatic gate.
Programming procedures can vary between VDS control boards and external receivers, so the exact receiver model should be identified before programming.
Check Compatibility Before Ordering
The VDS ECO-R operates at 433.92 MHz using rolling-code technology.
Do not select a replacement remote only by appearance. Check the existing remote model, frequency and installed receiver before ordering.
VDS ECO-R vs ECO-E Remote Control
The VDS ECO-R is listed as a 5-function 433.92 MHz rolling-code remote control, while the VDS ECO-E is listed as a 4-channel 433.92 MHz rolling-code transmitter.
Always select the remote according to the radio receiver installed in the automation system.
Common VDS Remote Control Problems
- Remote does not operate the automatic gate
- A23 battery is weak or discharged
- Operating range has become shorter
- Remote has not been programmed into the receiver
- Incorrect remote frequency
- Remote and receiver are incompatible
- Receiver memory is full
- Radio interference affects operating range
Professional VDS Remote Programming
Professional programming support can help identify the correct VDS receiver and correctly register the ECO-R transmitter into the automatic gate system.
After programming, all required remote-control functions should be tested to confirm reliable gate operation.
VDS ECO-R Remote Control Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies VDS ECO-R remote controls in UAE for compatible VDS automatic gate systems.
Supply, programming, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
