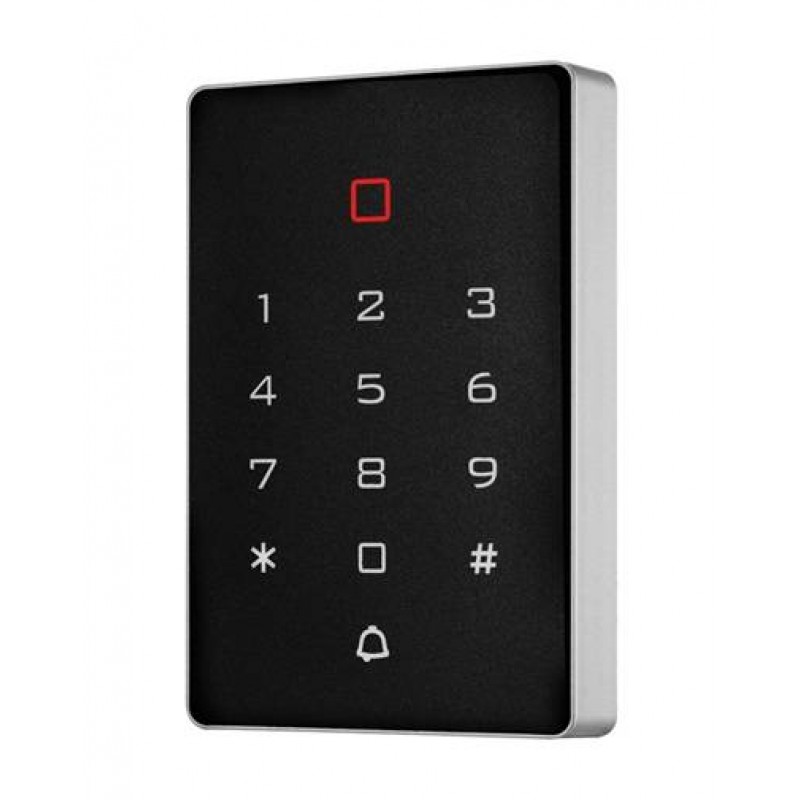

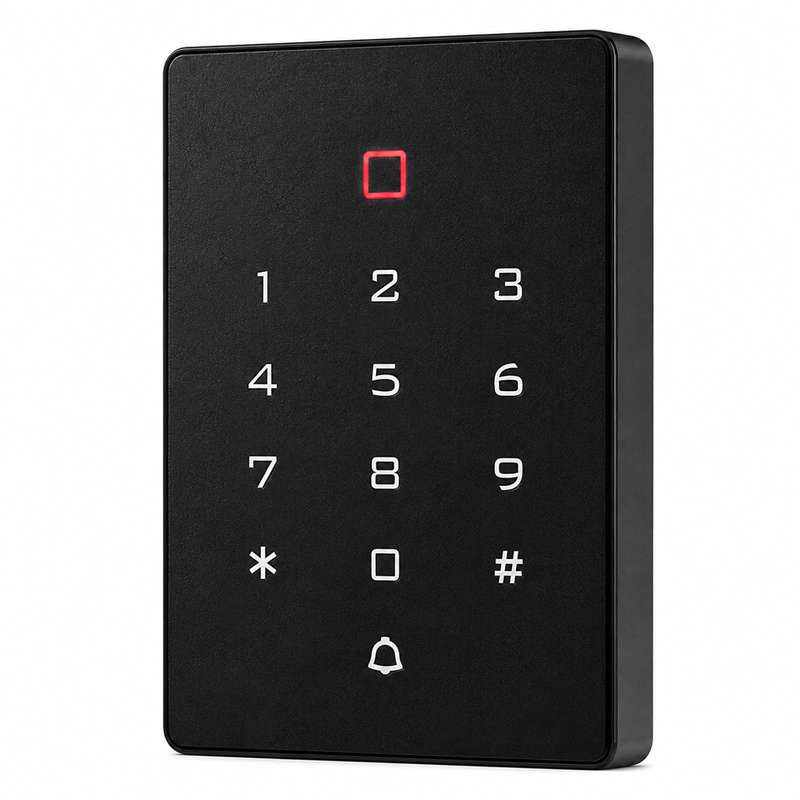

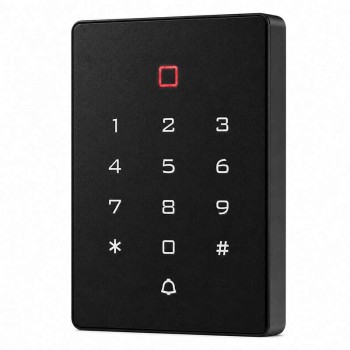

RFID Standalone Access Control Keypad UAE
Price 99 AEDIn Stock
The RFID Standalone Access Control Reader is a professional standalone door access keypad designed for residential, commercial and industrial access control applications. It combines RFID card reading, PIN password access and Wiegand connectivity in one compact unit.
The K12EM supports up to 2,000 users and provides multiple identification methods including RFID card, password, and card + password. This makes it suitable for offices, villas, warehouses, shops, staff entrances and other locations requiring controlled electronic door access.
With a wide DC 12–24V operating voltage, WG26/WG34 input and output, adjustable door relay time and support for external wired doorbells, the provides a flexible solution for standalone and integrated access control installations.
Key Features
- Standalone access control keypad
- Supports up to 2,000 users
- Compatible with EM RFID cards
- RFID card access
- PIN password access
- Card + password authentication
- 1–5 cm card reading distance
- DC 12–24V operating voltage
- Ultra-low standby current ≤30mA
- Lock output load up to 3A
- Adjustable door relay time from 0–99 seconds
- WG26 / WG34 input and output
- External wired doorbell support
- Wide operating temperature range
- Compact wall-mounted design
Technical Specifications
| Model | K12EM |
| Product Type | Standalone RFID Access Control Keypad |
| User Capacity | 2,000 Users |
| Card Type | EM Card |
| Identification | Card / Password / Card + Password |
| Card Reading Distance | 1–5 cm |
| Working Voltage | DC 12–24V |
| Standby Current | ≤30mA |
| Lock Output Load | ≤3A |
| Door Relay Time | 0–99 Seconds Adjustable |
| Wiegand Interface | WG26 / WG34 Input & Output |
| Doorbell Interface | External Wired Doorbell Supported |
| Operating Temperature | -40°C to +60°C |
| Working Humidity | 10%–90% |
| Dimensions | 115 × 75 × 18 mm |
2000 User Standalone Access Control
The supports up to 2,000 users, providing sufficient capacity for villas, offices, apartment buildings, warehouses, commercial premises and staff access applications.
Users can be enrolled according to the required access method and managed directly through the standalone access control system.
RFID EM Card Access
The K12EM supports compatible EM RFID cards for convenient contactless door access.
An authorised user simply presents a registered RFID card to the reader to activate the connected door lock.
PIN Password Access
The integrated keypad allows authorised users to unlock the door using a programmed PIN password.
PIN access is useful for offices, staff entrances and other applications where keyless electronic entry is required.
Card + Password Access
For applications requiring an additional authentication step, the K12EM supports card + password identification.
This allows the system to require both the registered RFID credential and the correct PIN according to the programmed access configuration.
1–5cm RFID Reading Distance
The provides an RFID card reading distance of approximately 1 to 5 cm when used with compatible EM cards.
Actual reading distance may vary according to the RFID credential and installation environment.
DC 12–24V Access Control Reader
The K12EM operates from a wide DC 12–24V power supply, providing flexibility for different electronic access control installations.
The unit has a standby current of ≤30mA for low-power operation.
WG26 & WG34 Wiegand Interface
The supports WG26 and WG34 Wiegand input and output.
This provides additional flexibility for integration with compatible external readers, access control controllers and other Wiegand-based security equipment.
Standalone or Wiegand Reader Operation
The K12EM can be used as a standalone access controller for basic door installations or integrated into compatible access control systems through its Wiegand interface.
This makes it a flexible choice for both simple and expandable access control projects.
Adjustable Door Unlock Time
The door relay activation time can be adjusted from 0 to 99 seconds.
This allows the installer to configure the door unlocking period according to the entrance and electronic lock requirements.
Electric Lock Connection
The access control unit provides a lock output load of up to 3A according to the listed product specification.
The complete installation should always use the correct power supply and wiring according to the connected electronic lock requirements.
Magnetic Lock Access Control
The K12EM can form part of a compatible magnetic lock door access system.
When an authorised RFID card or PIN is accepted, the access controller operates the door relay to release the connected locking system.
Electric Strike Access Control
The standalone access control keypad can also be integrated with compatible electric strike locks for office doors, building entrances and other suitable applications.
Electric Bolt Lock Access Control
For compatible glass doors and other applications, the K12EM can be integrated into an electric bolt lock access control system using the appropriate power supply and wiring configuration.
Exit Push Button Connection
A compatible exit push button can be installed on the secure side of the door to provide convenient exit operation.
Pressing the exit button activates the required door release command according to the access control wiring configuration.
External Doorbell Support
The supports an external wired doorbell interface, allowing a compatible doorbell to be incorporated into the entrance system.
Wide Operating Temperature
The K12EM is specified for an operating temperature range from -40°C to +60°C and working humidity from 10% to 90%.
Compact Access Control Keypad
With dimensions of approximately 115 × 75 × 18 mm, the K12EM provides a compact wall-mounted access control solution for door entrances.
Office Access Control
The RFID keypad is suitable for offices requiring controlled access to staff entrances, management areas, server rooms, storage areas and other restricted locations.
Residential Access Control
The K12EM can be installed at villas, apartment buildings and residential properties where RFID card or PIN-based electronic access is required.
Commercial & Warehouse Access Control
With support for up to 2,000 users, the standalone reader is also suitable for compatible shops, warehouses, factories, commercial buildings and staff entrance applications.
Complete Door Access Control System
A typical K12EM access control installation can include:
- RFID access control keypad
- Access control power supply
- Magnetic lock, electric strike or compatible electronic lock
- Exit push button
- RFID EM cards or compatible key fobs
- Doorbell where required
- Access control wiring and installation accessories
Professional Access Control Installation
Professional installation is recommended to ensure correct power supply selection, lock wiring, exit button connection, relay configuration, Wiegand connection and user programming.
After installation, RFID card access, PIN access, door unlocking, exit button operation and all required security functions should be fully tested.
