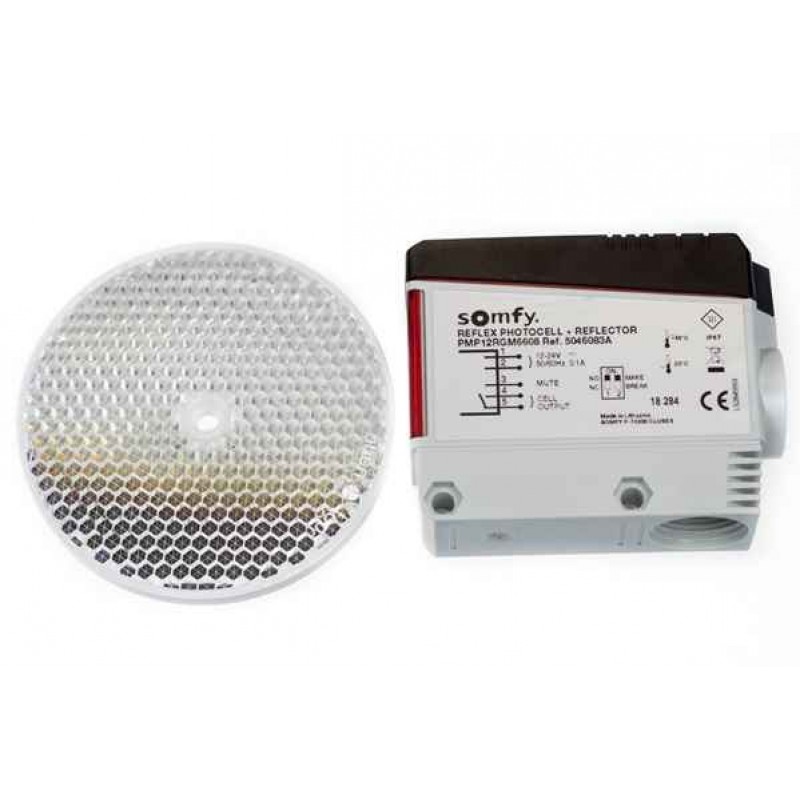

SOMFY REFLEX Photocell With Reflector PMP12RGM6608 UAE
Price 650 AEDIn Stock
The SOMFY REFLEX Photocell With Reflector PMP12RGM6608 is a professional photoelectric safety sensor designed for automatic gates, garage doors and compatible industrial door automation systems.
Unlike conventional photocells that require separate transmitter and receiver units on opposite sides of the entrance, the SOMFY REFLEX system uses one photocell sensor and one reflector. The infrared beam travels from the sensor to the reflector and returns to the sensor.
With a detection range of up to 12 metres, 24V AC/DC power supply, selectable NO/NC relay contact and IP67 protection, the SOMFY REFLEX provides reliable obstacle detection for residential, commercial and industrial automation applications.
Key Features
- SOMFY reflective photocell safety sensor
- Model REFLEX PMP12
- Code PMP12RGM6608
- Single photocell with reflector system
- Detection range up to 12 metres
- 24V AC/DC power supply
- NO / NC selectable relay contact
- Maximum relay load up to 3A
- Class II double insulation
- IP67 protection rating
- Operating temperature -25°C to +60°C
- Output signal test function
- Suitable for wide automatic gate entrances
- Suitable for garage and industrial doors
- Simplified wiring using one powered sensor
- Professional installation recommended
Technical Specifications
| Brand | SOMFY |
| Model | REFLEX PMP12 |
| Product Code | PMP12RGM6608 |
| Product Type | Reflective Photoelectric Safety Sensor |
| Detection Range | Up to 12 Metres |
| Power Supply | 24V AC/DC |
| Output Contact | NO / NC Relay |
| Maximum Load Current | 3A |
| Protection Class | Class II – Double Insulation |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +60°C |
| Dimensions | 68 × 25 × 81 mm |
| Output Signal Test | Yes |
| Application | Automatic Gates / Garage Doors / Industrial Doors |
SOMFY 12 Metre Reflective Photocell
The SOMFY REFLEX PMP12 provides obstacle detection across entrances up to approximately 12 metres under suitable operating conditions.
Its long detection distance makes it particularly useful for wide sliding gates, commercial entrances, industrial doors and other automation installations where a conventional short-range photocell may not be suitable.
Single Photocell & Reflector Technology
The SOMFY REFLEX uses a reflective detection system consisting of one powered photocell and one reflector.
The photocell sends a beam toward the reflector. The reflector returns the beam to the photocell. If a vehicle, person or other obstacle interrupts the beam, the sensor changes its relay output and the connected automation controller responds according to its programmed safety logic.
Easy Single-Side Wiring
One major advantage of a reflector photocell is simplified wiring. Only the photocell sensor requires electrical wiring, while the opposite side of the entrance uses a passive reflector.
This can simplify installations where running electrical cable to both sides of a driveway or gate opening is difficult.
24V AC/DC Power Supply
The SOMFY REFLEX PMP12RGM6608 operates from a 24V AC/DC power supply.
Before installation, the technician should confirm that the automation control board provides a compatible accessory power output.
NO / NC Relay Output
The photocell provides selectable Normally Open (NO) and Normally Closed (NC) relay operation.
This provides flexibility when connecting the sensor to compatible automatic gate, garage door and industrial door controllers.
3A Relay Contact
The SOMFY REFLEX photocell provides a relay output with a maximum switching load of up to 3A according to the applicable electrical ratings.
The relay should be connected according to the requirements of the automation control board and SOMFY installation instructions.
IP67 Protection Rating
The SOMFY REFLEX sensor has an IP67 protection rating, providing a high level of protection against dust and water ingress when correctly installed.
This makes it suitable for demanding outdoor gate and door automation environments.
Operating Temperature -25°C to +60°C
The photocell is designed to operate across a temperature range from approximately -25°C to +60°C.
Correct installation, alignment and environmental protection remain important for dependable long-term operation.
Automatic Sliding Gate Safety Sensor
The SOMFY REFLEX photocell is suitable for compatible automatic sliding gate installations where obstacle detection is required across the vehicle passage.
When the beam is interrupted during gate movement, the connected controller can stop or reverse the gate according to its configured safety settings.
Automatic Swing Gate Safety Sensor
The reflector photocell can also be incorporated into compatible automatic swing gate safety systems.
Photocell positioning should be selected according to the movement of the gate leaves and the required vehicle and pedestrian safety zones.
Garage Door Safety Sensor
The SOMFY REFLEX can be used with compatible garage door automation systems where a reflector-type photoelectric safety device is supported.
The sensor can detect vehicles, pedestrians and objects passing through the protected beam before or during automatic closing.
Industrial Door Applications
With its long detection range and reflective operating principle, the SOMFY REFLEX is also suitable for compatible commercial and industrial door automation applications.
It is especially useful for wide entrances where wiring a conventional transmitter and receiver on opposite sides may be difficult.
Photocell Alignment Indicator
Correct alignment between the photocell and reflector is essential for reliable operation.
The sensor provides an LED indication to assist during alignment. The photocell should be positioned so that the beam is directed accurately toward the centre of the reflector.
Why Use a Reflector Photocell?
- Only one powered photocell is required
- No electrical cable required at the reflector side
- Suitable for wide entrances
- Detection range up to 12 metres
- Simplifies installation across driveways
- NO / NC relay compatibility
- Suitable for gate and door automation
- IP67 outdoor protection
Reflector Photocell vs Standard Photocell
A conventional photocell system normally uses a separate transmitter and receiver installed on opposite sides of the entrance, with electrical connections required according to the sensor design.
The SOMFY REFLEX system instead uses one wired photocell and one passive reflector. The beam travels to the reflector and returns to the same sensor.
This can make reflector technology especially convenient for installations where running wiring to the opposite side of an entrance is difficult.
Common Photocell Problems
- Sensor and reflector not correctly aligned
- Gate will not close
- Gate reverses during closing
- Photocell relay does not change state
- No 24V power supply to the sensor
- Dirty photocell lens or reflector
- Damaged wiring
- Incorrect NO / NC configuration
- Reflector damaged or moved
Professional SOMFY REFLEX Installation
Professional installation is recommended to ensure correct sensor positioning, reflector alignment, power supply and relay configuration.
After installation, the automation should be tested through complete opening and closing cycles while interrupting the photocell beam to confirm the correct safety response.
SOMFY REFLEX Photocell Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies SOMFY REFLEX photocells with reflector in UAE for automatic gate, garage door and compatible industrial automation applications.
Supply, professional installation, replacement, alignment, troubleshooting and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
