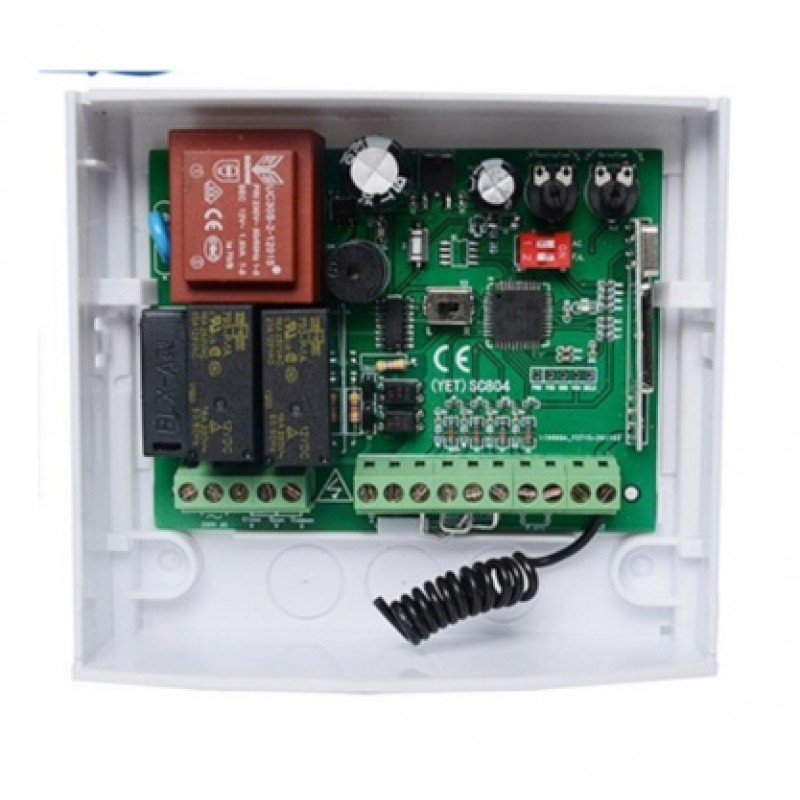

Rolling Shutter Tubular Motor Controller UAE

The Rolling Shutter Tubular Motor Controller is a professional 220V AC control unit designed for automatic tubular motors used in rolling shutters, roller doors and compatible motorized door systems.

The controller provides convenient Open, Close and Stop control using compatible wall switches and wireless remote controls. It operates at 433.92MHz and can store up to 30 remote controls, making it suitable for residential, commercial and light industrial rolling shutter applications.

Advanced functions include adjustable 5–120 second automatic closing, adjustable motor running time up to 120 seconds, photocell input, resistance protection and configurable DIP-switch settings.

Key Features

• Rolling shutter tubular motor controller
• Suitable for compatible 220V AC tubular motors
• 220V AC input voltage
• 220V AC motor output
• 433.92MHz wireless remote control
• 1527 remote coding
• Stores up to 30 remote controls
• Open / Close / Stop operation
• Wall push-button control
• Adjustable auto-close function
• 5–120 second auto-close delay
• Adjustable running time up to 120 seconds
• Photocell safety input
• Resistance / obstacle response function
• Limit switch support
• 12V DC accessory output
• 5V signal inputs
• DIP-switch configuration
• Suitable for rolling shutters and roller doors

Technical Specifications

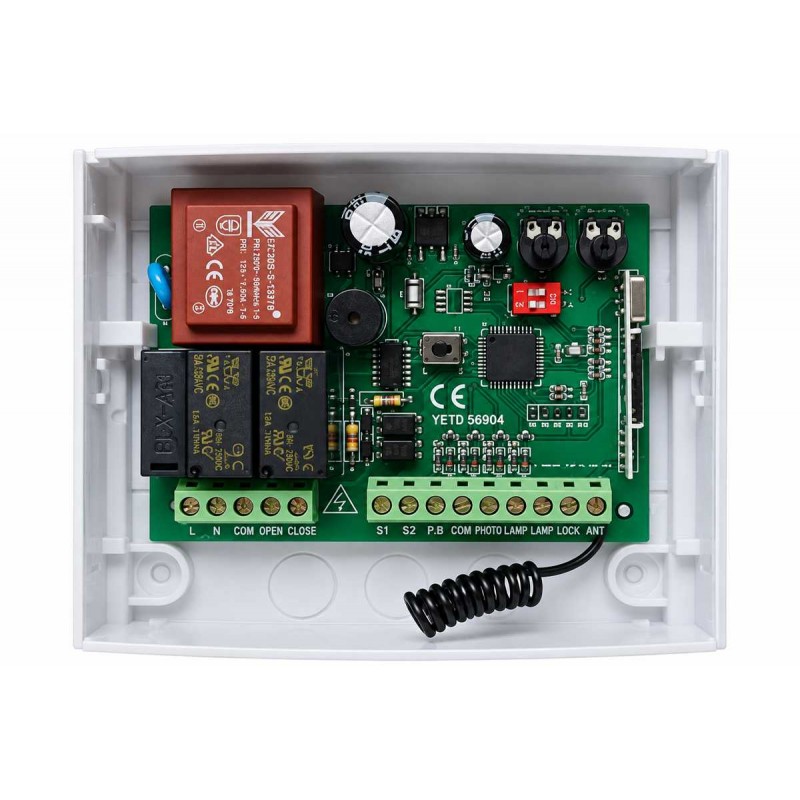

220V Rolling Shutter Tubular Motor Controller

The controller operates from a 220V AC power supply and provides a 220V AC output for compatible tubular motors.

It provides centralized control of the tubular motor together with compatible remote controls, wall switches and safety accessories.

Open, Close & Stop Control

The tubular motor controller provides the main commands required for automatic rolling shutter operation:

• OPEN – Raises the rolling shutter
• STOP – Stops the shutter movement
• CLOSE – Lowers the rolling shutter

The controller can receive these commands from compatible wireless remote controls or an appropriately connected wall switch.

433.92MHz Remote Control

The controller includes a built-in 433.92MHz wireless receiver for compatible remote-control operation.

This allows users to conveniently operate the rolling shutter without having to use the wired wall switch every time.

30 Remote Control Memory

Up to 30 compatible remote controls can be stored in the controller memory.

This makes the controller suitable for applications where multiple authorised users require wireless rolling shutter operation.

Automatic Closing Function

The controller provides an adjustable automatic closing function with a delay setting from approximately 5 to 120 seconds.

When enabled and correctly configured, the rolling shutter can automatically close after the programmed delay.

Auto-Close DIP Switch Setting

DIP Switch 1 controls the automatic closing function.

• DIP 1 ON – Auto-close function enabled
• DIP 1 OFF – Auto-close function disabled

The automatic closing delay should be selected according to the required shutter operation and safety configuration.

Adjustable Motor Running Time

The tubular motor running time can be configured up to a maximum of approximately 120 seconds.

Correct running-time adjustment helps prevent unnecessary motor operation after the rolling shutter has reached its required end position.

Photocell Safety Input

The controller supports connection of a compatible photocell safety sensor.

Photocells can be used to detect an obstacle or person in the shutter opening and allow the controller to respond according to its configured safety logic.

12V DC Accessory Output

The controller provides a +12V DC VCC output terminal for compatible low-voltage accessories.

The accessory voltage and current requirements should always be checked before connecting external devices.

Wall Push Button Control

A compatible wired wall switch can be connected to provide manual rolling shutter operation without using the wireless remote control.

This is useful for shops, warehouses, garages and commercial premises where a fixed control point is required.

Rolling Shutter Safety Functions

The controller includes functions designed to provide improved control and protection of compatible rolling shutter systems, including running-time control, photocell input, resistance response and limit-switch operation.

Correct wiring, programming and safety-device installation are important for dependable automatic shutter operation.

Tubular Motor Controller for Roller Shutters

The controller is designed for compatible tubular motors used in automatic roller shutters and roller doors.

Tubular motors are installed inside the roller tube, providing a compact automation solution for residential and commercial shutter systems.

Compatible Tubular Motor Applications

Depending on the motor's electrical requirements and controller output capacity, this controller can be used with compatible tubular motors for:

• Rolling shutter doors
• Roller shutters
• Garage roller doors
• Shop shutters
• Commercial shutters
• Motorized roller systems
• Compatible tubular motor installations

Residential Rolling Shutters

The tubular motor controller can provide convenient remote and wall-switch operation for compatible residential rolling shutters and roller doors.

Wireless remote control provides convenient opening and closing while the wall switch offers a permanent local control point.

Commercial Rolling Shutters

The controller is also suitable for compatible tubular motor installations used in shops, offices and other light commercial applications.

Functions such as wireless operation, automatic closing and photocell integration provide additional flexibility for automatic shutter control.

Complete Tubular Motor Control System

A typical rolling shutter tubular motor automation system may include:

• 220V tubular motor
• Rolling shutter tubular motor controller
• Wireless remote controls
• Open / Close / Stop wall switch
• Photocell safety sensors where required
• Electrical power and protection
• Rolling shutter limit switches

Professional Tubular Motor Controller Installation

Professional installation is recommended because the controller operates with 220V AC mains voltage.

The installer should verify the tubular motor voltage, motor direction, limit switches, controller output capacity, wall-switch wiring and safety accessories before commissioning the rolling shutter.

Rolling Shutter Tubular Motor Controller Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies rolling shutter tubular motor controllers in UAE for residential, commercial and industrial rolling shutter automation applications.

Supply, installation, programming, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
