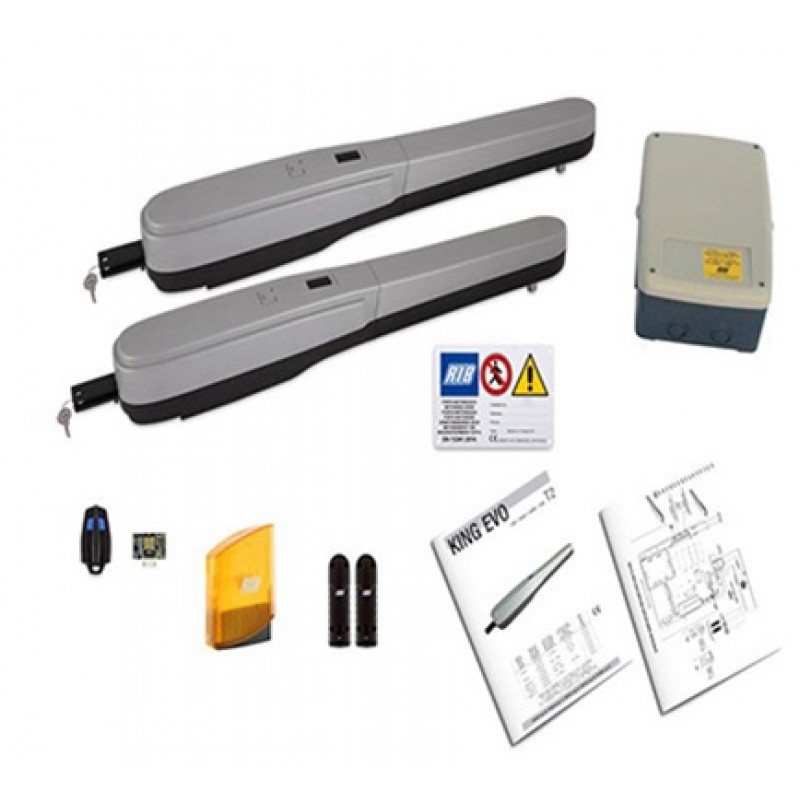

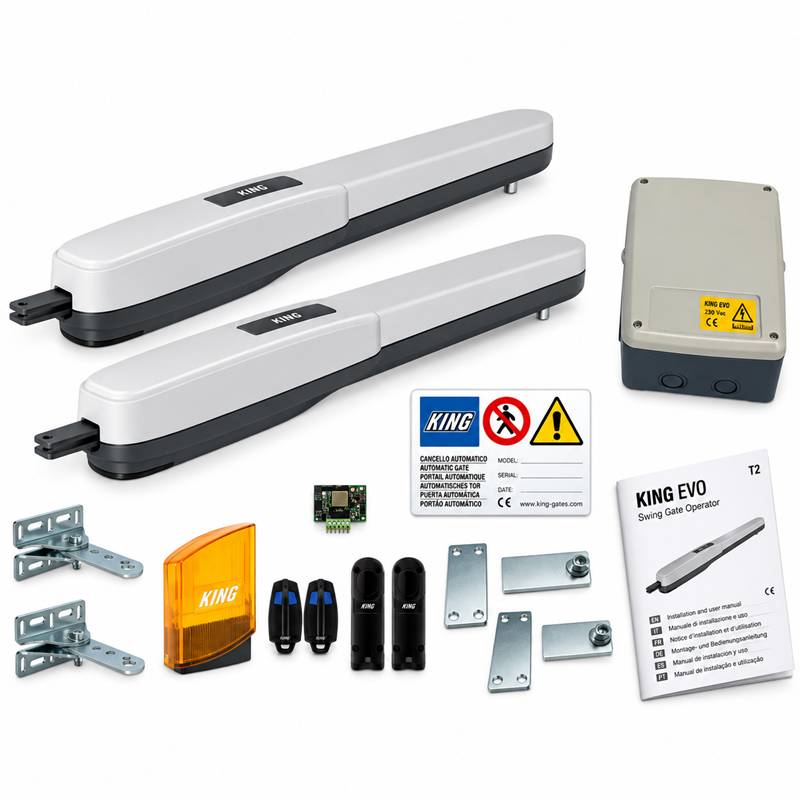

RIB KING EVO L 700 KG Swing Gate Motor UAE

The RIB KING EVO L Swing Gate Motor is a heavy-duty linear automatic gate operator designed for large swing gate leaves measuring up to 7 metres and weighing up to 700 KG per leaf. Engineered by RIB in Italy, KING EVO L is an excellent solution for large residential, commercial and company entrances requiring powerful, smooth and reliable swing gate automation.

The RIB KING EVO L uses an oversized Ø20 mm four-thread endless screw and robust mechanical components lubricated with special synthetic grease. This heavy-duty mechanical design provides excellent strength, quiet movement and long-term reliability, even when installed on large swing gates.

KING EVO L is available in different versions, including a 24V model suitable for gates requiring frequent opening and closing. Optional backup batteries can also be installed on the 24V version to maintain automatic gate operation during a power failure.

Key Features

• Original RIB KING EVO L swing gate motor
• Suitable for gate leaves up to 7 metres long
• Maximum gate leaf weight up to 700 KG
• Heavy-duty linear swing gate operator
• Irreversible electromechanical drive
• Ø20 mm large four-thread endless screw
• Oversized heavy-duty mechanical components
• Designed for smooth and quiet operation
• Special synthetic lubrication for long-term reliability
• Suitable for large swing gates
• 24V version available
• Suitable for frequent opening and closing
• Optional backup batteries on 24V version
• Up to 40 cycles during a blackout under suitable conditions
• 24V version can operate without backup batteries
• Mechanical opening limit switch supplied as standard
• Suitable for single and double-leaf swing gates
• Suitable for residential, commercial and heavy-duty applications

Technical Specifications

RIB KING EVO L 700 KG Swing Gate Opener

The RIB KING EVO L is designed for particularly large swing gates, supporting compatible gate leaves weighing up to 700 KG and measuring up to 7 metres in length.

Its combination of high gate capacity and robust linear mechanics makes KING EVO L suitable for large villas, residential compounds, commercial properties and company entrances.

Up to 7 Metres Per Gate Leaf

RIB specifies KING EVO L for swing gate leaves measuring up to 7 metres long, making it an excellent solution for exceptionally wide swing gate entrances.

Gate length should always be considered together with gate weight, construction, wind exposure, hinge condition and expected operating frequency when selecting an automatic swing gate motor.

Up to 700 KG Per Gate Leaf

Each RIB KING EVO L operator is designed for a compatible swing gate leaf weighing up to 700 KG.

For double-leaf gates, one operator is normally installed on each gate leaf, providing automation for large two-leaf entrances.

Heavy-Duty Linear Gate Operator

KING EVO L uses an oversized electromechanical linear drive system engineered specifically for large swing gates.

The robust mechanical construction provides the strength required for demanding residential and commercial gate automation applications.

Ø20 mm Four-Thread Endless Screw

A key mechanical feature of the RIB KING EVO L is its large Ø20 mm four-thread endless screw.

The oversized screw mechanism has been engineered to provide strength, reliability and smooth movement for large swing gate leaves.

Quiet Swing Gate Operation

Despite its heavy-duty construction, KING EVO L is engineered for quiet operation. Its internal mechanical components use special synthetic lubrication to help minimise operating noise and provide smooth movement.

This makes the operator suitable for both residential properties and commercial locations where dependable but quiet gate automation is required.

RIB KING EVO L 24V

The RIB KING EVO L 24V combines oversized mechanical components with a 24V motor, making it particularly suitable for automatic gates that undergo frequent opening and closing.

This configuration is well suited to apartment buildings, residential compounds, company premises and other higher-traffic entrances.

Optional Battery Backup

The KING EVO L 24V can be equipped with optional buffer batteries to maintain automatic gate operation during an electrical power failure.

Under the appropriate operating conditions, RIB states that the backup system can provide up to approximately 40 cycles during a blackout.

24V Operation Without Batteries

Backup batteries are optional. The RIB KING EVO L 24V can operate normally without batteries while mains electrical power is available.

Battery backup can therefore be added where continued automatic gate operation during power interruptions is required.

Mechanical Opening Limit Switch

All RIB KING EVO L versions are supplied with a mechanical limit switch for opening.

Correct adjustment of the limit switch during installation helps establish the required opening position of the swing gate.

Irreversible Swing Gate Motor

The KING EVO L is an irreversible electromechanical swing gate operator. Its mechanical transmission helps maintain the gate position when the operator is not running.

Additional mechanical or electric locking requirements should be determined according to gate size, wind load, installation geometry and security requirements.

Manual Release During Power Failure

A manual release system allows the KING EVO L operator to be disengaged when manual gate movement is required during maintenance, emergency situations or a power failure without battery backup.

The gate should always be correctly balanced and maintained so it can move safely when manually released.

Single Swing Gate Automation

One RIB KING EVO L operator can be installed on a compatible large single-leaf swing gate.

This configuration is suitable for properties with one wide swing gate leaf requiring heavy-duty automatic operation.

Double Swing Gate Automation

For a double-leaf swing gate, two RIB KING EVO L operators can be installed, with one operator controlling each gate leaf.

A compatible RIB control panel coordinates the opening and closing sequence of both gate motors.

RIB B2-CRX Control Board

RIB KING EVO L can be used with compatible RIB B2-CRX electronic control systems according to the exact motor version and installation configuration.

The control system manages gate movement, safety accessories, remote-control commands and other compatible automation functions.

Photocell Safety Sensors

Compatible photocell safety sensors can be integrated with the KING EVO L automation system to detect vehicles, pedestrians and obstacles around the automatic gate entrance.

Because large swing gate leaves move through a substantial operating area, the complete safety layout should be designed according to the gate movement and potential hazard zones.

RIB FIT SLIM Photocell Sensors

Compatible RIB FIT SLIM photocell sensors can be installed with the KING EVO L system to provide infrared obstacle detection across the gate entrance.

Photocell position and alignment should be selected according to the gate layout and required protected areas.

RIB SUN Remote Control Operation

The RIB KING EVO L automation system can be operated using compatible RIB SUN remote controls when the appropriate RIB radio receiver and control panel are installed.

Additional transmitters can be programmed for authorised family members, employees, security personnel and property-management users.

Pedestrian Opening

With a compatible control panel and suitable double-leaf configuration, the system can be programmed to operate one gate leaf for pedestrian access.

This allows pedestrian entry without requiring the complete double swing gate to open.

Automatic Closing

A compatible RIB control system can be configured for automatic gate closing after a programmed waiting period.

Appropriate photocells and other safety devices should be correctly installed and configured whenever automatic closing is enabled.

Access Control Integration

The RIB KING EVO L can be integrated with compatible external access control equipment through the appropriate gate control panel.

• GSM gate openers
• WiFi gate controllers
• RFID access control systems
• Keypad access systems
• UHF long-range RFID vehicle readers
• Loop detectors
• Intercom systems
• Video intercom systems
• Push buttons
• Key switches

RIB KING EVO L Applications

• Large villa swing gates
• Luxury residential entrances
• Apartment buildings
• Residential compounds
• Commercial buildings
• Company premises
• Factories and warehouses
• Business compounds
• Private parking entrances
• Large automatic security gates
• Access-controlled entrances

Professional RIB KING EVO L Installation

Professional installation is strongly recommended for the RIB KING EVO L, especially when automating large gate leaves approaching 7 metres or 700 KG.

Before installation, the gate leaf length, weight, hinge condition, opening angle, pillar dimensions, wind exposure and motor mounting geometry should be carefully checked.

Correct bracket geometry, mechanical stops, electrical wiring, control-panel programming and safety-device positioning are essential for reliable long-term operation.

RIB KING EVO L Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies RIB KING EVO L 700 KG swing gate motors in UAE for large residential, commercial and heavy-duty automatic swing gate applications.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
