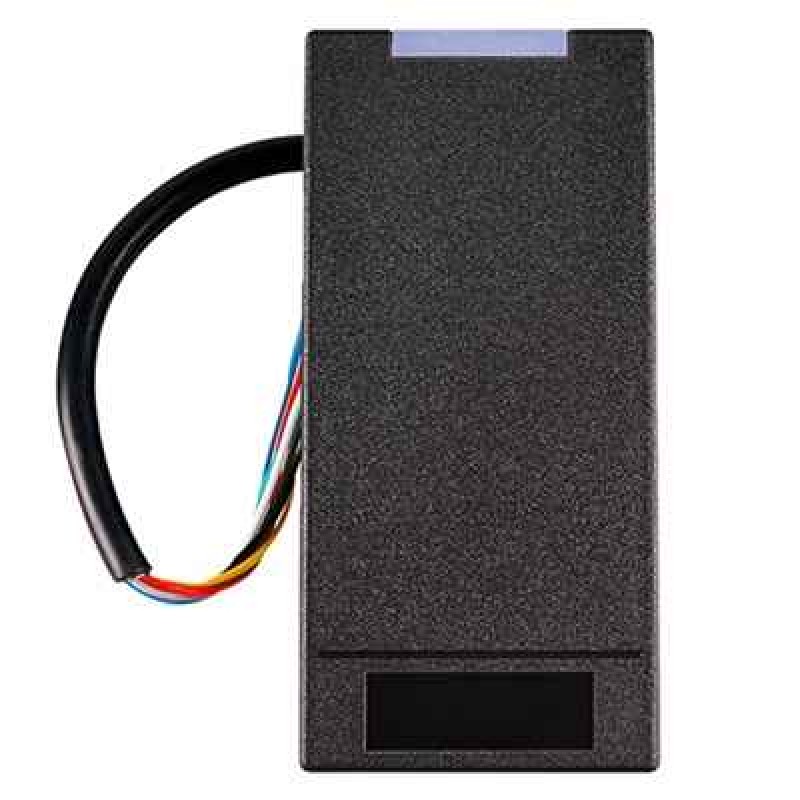

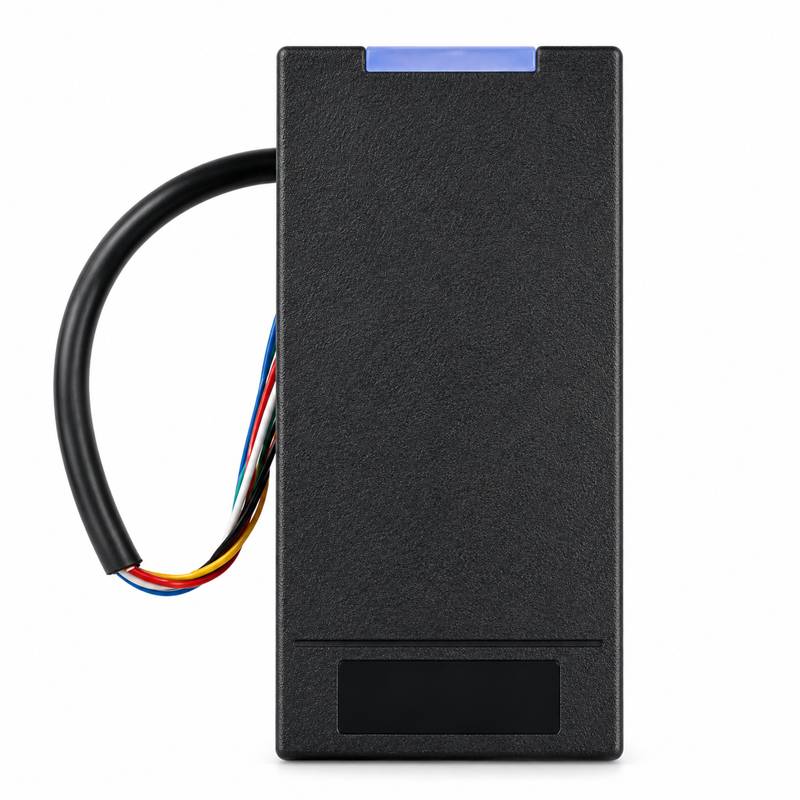

RFID Access Control Card Reader UAE

The RFID Access Control Card Reader is a compact contactless RFID reader designed for door access control, automatic gate access, parking systems and other electronic identification applications. It is available for 125KHz or 13.56MHz RFID cards, depending on the selected reader version.

With a card sensing distance of up to 15 cm and a fast reading speed of less than 0.2 seconds, the reader provides quick and convenient RFID card identification for compatible access control systems.

The reader operates from DC 5–16V and supports multiple communication options including RS232, TTL and RS485, allowing integration with compatible access controllers, security systems and RFID identification equipment.

Key Features

• RFID access control card reader
• 125KHz or 13.56MHz versions available
• Supports ID or IC cards depending on version
• Up to 15 cm card reading distance
• Fast reading speed under 0.2 seconds
• DC 5–16V operating voltage
• Low working current under 25mA
• RS232 communication interface
• TTL communication interface
• RS485 active mode
• RS485 passive mode
• Compact PVC housing
• Suitable for door access control
• Suitable for automatic gate access
• Residential and commercial applications

Technical Specifications

125KHz RFID Access Reader

The 125KHz version is designed for compatible low-frequency RFID ID cards commonly used in electronic door access control systems.

Users simply present an authorised RFID card near the reader. The reader identifies the card and transmits its information to the connected access control system.

13.56MHz RFID Card Reader

A 13.56MHz version is available for compatible IC card applications. The correct reader frequency should be selected according to the RFID cards and access control controller being used.

Always confirm the required card technology before ordering because 125KHz and 13.56MHz cards use different RFID frequencies.

Up to 15cm RFID Reading Distance

The RFID reader provides a sensing distance of approximately 0 to 15 cm under suitable operating conditions.

Actual reading distance can vary depending on the RFID card type, reader version, installation location and surrounding environment.

Fast RFID Card Identification

With a specified card reading speed of less than 0.2 seconds, the reader provides fast contactless identification for authorised users.

This allows convenient access without inserting a card or physically touching the reader.

DC 5–16V Operation

The RFID reader operates from a DC 5–16V power supply, providing flexibility for integration with compatible access control controllers and power supplies.

The correct voltage and wiring configuration should always be confirmed before installation.

RS232 Communication

The reader supports RS232 communication for integration with compatible access control and RFID identification equipment.

The communication interface selected should match the input requirements of the connected controller.

RS485 RFID Reader

The PCD-96A specification includes RS485 active and passive modes, providing additional communication options for compatible access control systems.

RS485 can be useful for professional installations requiring serial communication between the RFID reader and compatible control equipment.

TTL Communication Interface

The reader also supports a TTL communication interface for compatible electronic and access control applications.

This provides additional integration flexibility for specialist RFID identification projects.

RFID Door Access Control

The RFID reader can be connected to a compatible access control controller to provide contactless card identification at residential, commercial and industrial doors.

When an authorised card is presented, the connected access controller can activate an electric lock according to the programmed access permissions.

Automatic Gate Access Control

The RFID reader can also form part of a compatible automatic gate access control system.

After a valid RFID credential is recognised by the access controller, a relay output can provide an opening command to a sliding gate motor, swing gate motor or parking barrier control system.

Electric Lock Access Control

When used with a suitable access control controller and power supply, the RFID reader can form part of systems using:

• Electromagnetic locks
• Electric strike locks
• Electric bolt locks
• Electric rim locks
• Automatic door systems
• Pedestrian gate systems

Network Access Control Integration

The RFID reader can be integrated with compatible single-door or multi-door access control controllers where the selected communication interface is supported.

The controller manages authorised users, access permissions and electric lock operation while the RFID reader provides card identification at the entrance.

RFID Reader Applications

• Office door access control
• Villa pedestrian gates
• Residential buildings
• Apartment entrances
• Commercial buildings
• Staff entrances
• Warehouse access
• Factory entrances
• Parking access systems
• Automatic sliding gates
• Automatic swing gates
• Restricted areas
• RFID identification systems

Professional RFID Reader Installation

Professional installation is recommended to ensure the correct power supply, RFID frequency, communication interface and wiring configuration are selected.

The reader should be tested with the actual RFID cards and access controller before the complete system is placed into operation.

RFID Access Control Card Reader Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies RFID access control card readers in UAE for residential, commercial and industrial security applications.

Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
