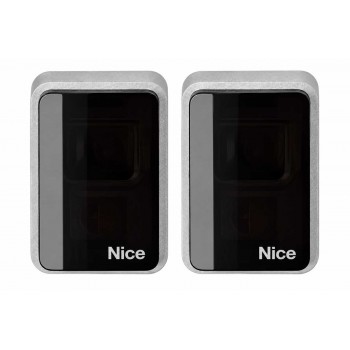

NICE EPM Photocell Sensors UAE
Price 200 AEDIn Stock

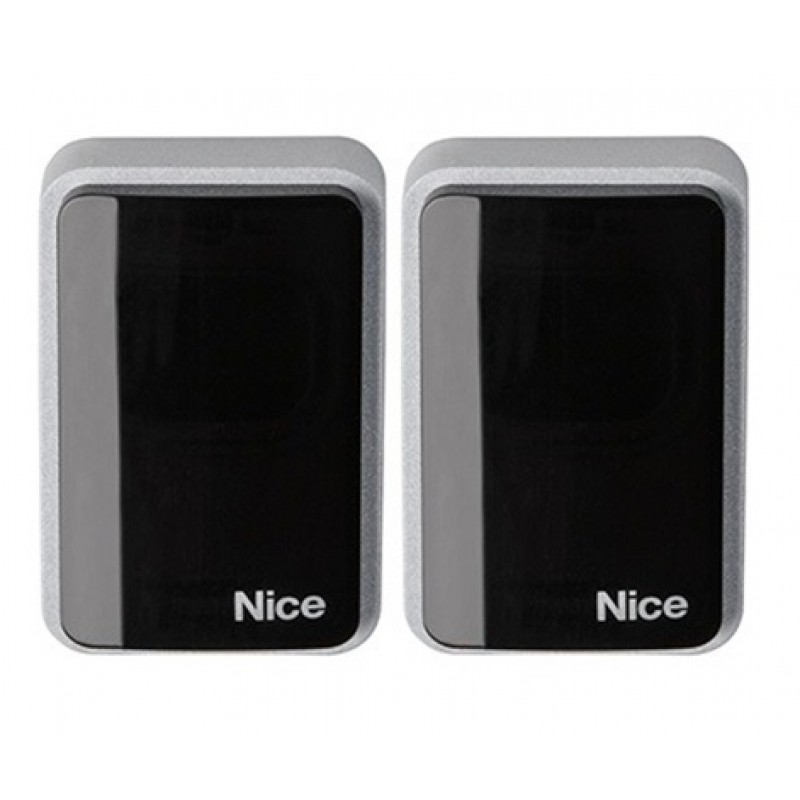

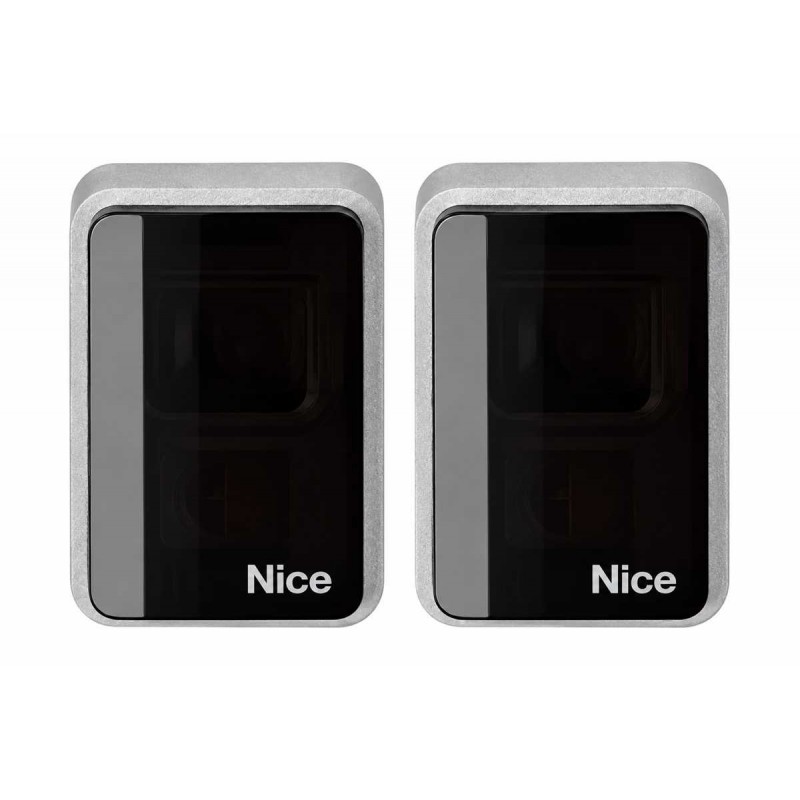

The NICE EPM Photocell Sensors are original NICE infrared safety devices designed for automatic gates, garage doors and compatible access automation systems. Supplied as a transmitter and receiver pair, the EPM photocells create an infrared safety beam across the entrance to detect vehicles, people and other obstacles during automatic gate operation.
The NICE EPM provides an operating range of up to 15 metres and operates from a 24V AC/DC power supply. Unlike the NICE EPMB BlueBUS version, the standard EPM uses a conventional relay output, making it suitable for compatible gate control boards with standard photocell safety inputs.
With automatic synchronization, IP44 protection and a compact surface-mounted housing, the NICE EPM provides reliable safety protection for residential, commercial and industrial automatic gate installations.
Key Features
- Original NICE EPM photocell sensors
- Infrared automatic gate safety photocells
- Supplied as transmitter and receiver pair
- Maximum operating range up to 15 metres
- 24V AC/DC power supply
- Conventional relay output
- Maximum relay capacity 500 mA / 48V
- Automatic photocell synchronization
- Helps prevent interference between multiple photocell pairs
- Surface-mounted installation
- Durable ABS housing
- Suitable for outdoor installation
- IP44 protection rating
- Compact 50 × 29 × 80 mm design
- Suitable for compatible automatic gate control boards
Technical Specifications
| Brand | NICE |
| Model | EPM |
| Product Type | Infrared Safety Photocell Pair |
| Installation Type | Surface Mounted |
| Maximum Range | Up to 15 m |
| Power Supply | 24V AC/DC |
| Receiver Current | 25 mA |
| Transmitter Current | 30 mA |
| Output | Relay Contact |
| Relay Capacity | Max. 500 mA / 48V |
| Synchronization | Automatic |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +50°C |
| Dimensions | 50 × 29 × 80 mm |
| Weight | 140 g |
NICE EPM Automatic Gate Photocell Sensors
The NICE EPM is a synchronized infrared photocell system developed to improve the safety of automatic gate and door installations.
One photocell acts as the infrared transmitter while the opposite photocell receives the beam. When a vehicle, person or object interrupts the infrared beam, the receiver sends a safety signal to the connected gate control unit.
Automatic Gate Obstacle Detection
The NICE EPM helps protect vehicles, pedestrians and property by detecting obstacles across the automatic gate entrance.
Depending on the control-board programming, interruption of the photocell beam can prevent the gate from closing, stop gate movement or cause the gate to reverse.
Up to 15 Metres Operating Range
The NICE EPM photocell system provides an operating range of up to 15 metres between the transmitter and receiver when correctly installed and aligned.
Actual operating range can vary according to photocell alignment, installation position and environmental conditions.
24V AC/DC Power Supply
The standard NICE EPM operates from a 24V AC/DC power supply, allowing it to be connected to compatible automatic gate control boards that provide an accessory power output.
The correct control-board voltage and photocell wiring terminals should always be confirmed before installation.
Relay Output
The NICE EPM uses a conventional relay contact output for connection to the photocell or safety input of a compatible gate control board.
The relay contact is rated up to approximately 500 mA at 48V.
Compatible with Standard Gate Control Boards
Because the NICE EPM uses conventional power and relay connections, it can be used with many compatible automatic gate control systems that support standard photocell safety inputs.
Compatibility should always be confirmed according to the control-board voltage, safety-input configuration and wiring requirements.
Automatic Synchronization
The NICE EPM supports automatic synchronization to help prevent interference between multiple photocell pairs installed around the same automatic gate.
This is useful for installations where more than one safety beam is required to protect different areas of gate movement.
IP44 Outdoor Protection
The NICE EPM has an IP44 protection rating and is designed for outdoor gate automation applications when correctly installed.
Its durable ABS housing provides protection against normal environmental conditions encountered around automatic gate entrances.
Compact Surface-Mounted Design
With dimensions of approximately 50 × 29 × 80 mm, the NICE EPM provides a compact surface-mounted installation on gate posts, walls and other suitable mounting surfaces.
NICE EPM for Sliding Gate Motors
The NICE EPM can be used with compatible sliding gate control boards providing the required 24V accessory supply and conventional photocell safety input.
The photocell beam is normally positioned across the vehicle entrance to detect obstacles before or during automatic gate closing.
NICE EPM for Swing Gate Motors
NICE EPM photocells are suitable for compatible swing gate automation systems using a conventional photocell safety input.
Depending on the gate layout, one or more photocell pairs can be positioned to protect the gate entrance and movement area.
NICE EPM for Garage Door Openers
The NICE EPM can also be used with compatible automatic garage door systems where the controller provides the required power supply and relay-type safety input.
NICE EPM for Parking Gate Barriers
The EPM photocell can be used as an obstacle-detection safety device for compatible automatic parking barrier systems.
When installed across a vehicle lane, the photocell can help prevent the barrier arm from closing while a vehicle or obstacle is detected within the protected area.
Photocell Alignment
Correct alignment between the EPM transmitter and receiver is essential for reliable operation.
Both photocells should be installed facing each other at a suitable height and position according to the automatic gate layout and required safety area.
Professional Installation & Testing
Professional installation is recommended for NICE EPM photocells. Correct power supply, relay wiring, synchronization, positioning and alignment are important for reliable safety operation.
After installation, the photocell safety function should be tested during multiple gate opening and closing cycles to confirm that the control system responds correctly when the infrared beam is interrupted.
NICE EPM Photocell Sensors Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies NICE EPM photocell sensors in UAE for residential, commercial and industrial automatic gate systems.
Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
