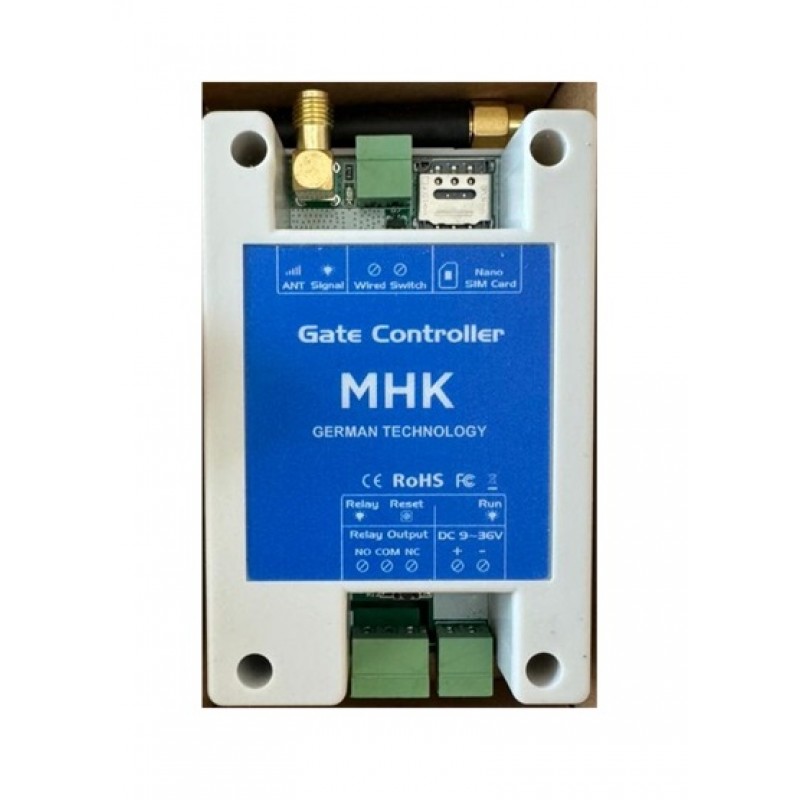

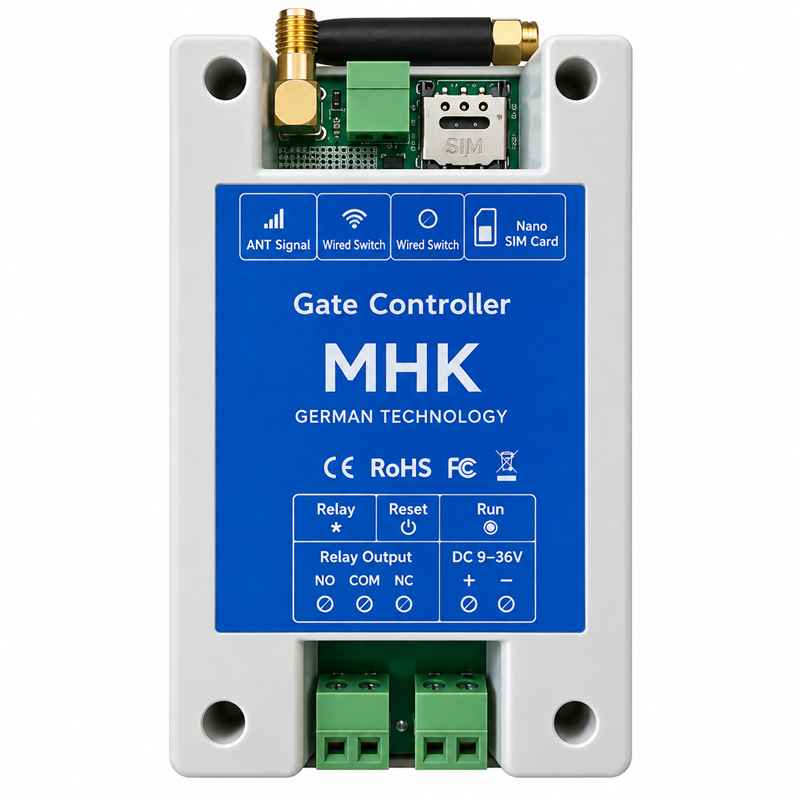

MHK GSM Gate Opener UAE

The MHK GSM Gate Opener is a mobile phone access controller designed for automatic gates, garage doors, parking barriers and compatible access control systems. It allows authorised users to open a gate by calling the SIM card installed inside the GSM controller.

The supports up to 200 authorised users and provides convenient gate access without requiring a traditional remote control or key fob. Because operation is through the mobile network, users can activate the connected gate from anywhere with suitable network coverage.

With a wide DC 9V–36V power input, NO/NC relay output, Nano SIM support and adjustable relay activation time, the MHK GSM gate controller provides a flexible solution for residential, commercial and industrial gate access applications.

Key Features

• MHK GSM gate opener
• Mobile phone call gate access
• Supports up to 200 authorised users
• No traditional gate remote control required
• No distance limitation within supported mobile network coverage
• Nano SIM card support
• 3G / 4G versions available depending on model
• DC 9V–36V wide-range power input
• NO / NC relay output
• Adjustable relay activation time
• Relay timer adjustable from 0–900 seconds
• Supports wired push-button input
• External SMA antenna connection
• Compact controller design
• Suitable for sliding gate motors
• Suitable for swing gate motors
• Suitable for garage door openers
• Suitable for parking barriers
• Suitable for compatible access control systems

Technical Specifications

Open Your Gate Using a Mobile Phone

The MHK GSM Gate Opener allows authorised users to activate an automatic gate using their mobile phone.

A Nano SIM card is installed inside the controller. When an authorised phone number calls the SIM card, the controller activates its relay output and sends an opening command to the connected gate automation system.

Up to 200 Authorised Users

The can store up to 200 authorised phone numbers, making it suitable for both private and multi-user access applications.

Authorised numbers can be configured according to the controller programming procedure, allowing property managers to control who can activate the gate.

No Gate Remote Control Required

With GSM gate access, authorised users can use their existing mobile phones instead of carrying an additional gate remote control.

This can be especially convenient for staff entrances, apartment buildings, warehouses, factories, offices and other locations where many users require gate access.

No Distance Limitation

Unlike conventional radio-frequency gate remotes that normally work only within a limited range, the GSM controller operates through the mobile network.

This means the gate can be activated from a remote location when the controller and user's phone have suitable network service.

Nano SIM Card GSM Controller

The MHK uses a Nano SIM card for mobile network communication.

The SIM card should have active service and should be compatible with the network technology supported by the particular version.

3G / 4G GSM Gate Opener

The is available in different mobile-network versions. The correct version should be selected according to the network technology and frequency bands required at the installation location.

For new installations, confirm the exact network version of the controller before ordering rather than relying only on the external appearance of the unit.

DC 9V–36V Wide Voltage Input

The GSM gate controller operates from a wide DC 9V to 36V power input.

This provides flexibility when integrating the controller with compatible automatic gate and access-control power systems.

NO / NC Relay Output

The controller provides Normally Open (NO) and Normally Closed (NC) relay contacts for integration with compatible automation equipment.

For most automatic gate applications, the GSM controller is connected as a dry-contact trigger to the gate control board's appropriate command input.

Adjustable Relay Time 0–900 Seconds

The relay activation period can be configured from approximately 0 to 900 seconds according to the required application.

For a standard automatic gate opening command, a short momentary relay pulse is normally used. Longer relay activation times may be used only where required by the connected system.

Wired Push Button Support

The also supports a compatible wired switch input.

This allows the GSM controller to form part of an access system that includes both mobile-phone control and a local wired activation device.

GSM Controller for Sliding Gates

The MHK GSM gate opener can be connected to compatible automatic sliding gate control boards using an appropriate command input.

The existing gate remote controls can normally remain in use while GSM mobile-phone access is added as an additional opening method.

GSM Controller for Swing Gates

Compatible automatic swing gate motors can also be operated using the relay output.

The GSM controller sends a dry-contact command to the appropriate gate control-board input, allowing authorised mobile phones to activate the gate.

GSM Garage Door Opener

The can be integrated with compatible garage door opener systems that provide an external push-button or dry-contact activation input.

This allows authorised users to operate the garage door using their mobile phones in addition to the existing garage remote controls.

GSM Parking Barrier Controller

The GSM controller can also be used with compatible automatic parking barriers.

When an authorised number calls the controller, its relay can provide an opening command to the parking barrier control board.

GSM Rolling Shutter Access

Compatible rolling shutter controllers can use the as a remote GSM activation device where an appropriate external control input is available.

The required relay configuration depends on the rolling shutter controller and the command required by the installation.

Compatible with Major Gate Motor Brands

Because the provides relay contacts, it can be integrated with many automatic gate systems that accept a compatible external dry-contact command.

This can include suitable gate automation systems from brands such as NICE, BFT, LIFE, BENINCA, CAME, FAAC, DEA, RIB and other manufacturers.

Keep Your Existing Gate Remotes

Installing a GSM gate controller does not normally require removal of the existing gate remote-control system.

The GSM controller can provide an additional access method while existing compatible remote controls, push buttons and access-control devices continue to operate.

GSM Gate Opener Applications

• Villa automatic gates
• Residential buildings
• Apartment parking entrances
• Office gates
• Warehouse entrances
• Factory gates
• Staff parking entrances
• Commercial properties
• Gated communities
• Parking barriers
• Garage doors
• Compatible rolling shutters
• Access control systems

Professional GSM Gate Opener Installation

Professional installation is recommended to ensure the GSM controller is connected to the correct power supply and gate control-board command terminals.

After installation, authorised phone numbers, relay timing and SIM card settings should be configured and tested before the system is placed into normal operation.

MHK GSM Gate Opener Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies MHK GSM gate openers in UAE for automatic sliding gates, swing gates, garage doors, parking barriers and compatible access-control systems.

Supply, installation, programming and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
