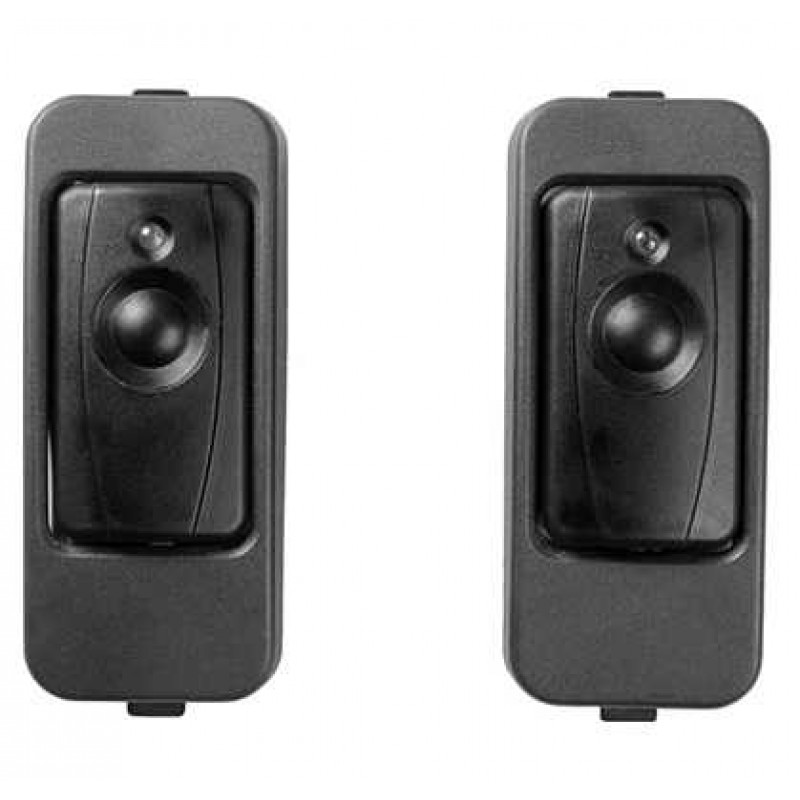

MARANTEC SPECIAL 630 Garage Door Photocell Sensors UAE

The MARANTEC SPECIAL 630 Garage Door Photocell Sensors are professional optical safety devices designed to protect people, vehicles and objects during automatic garage door operation. The SPECIAL 630 uses a transmitter and receiver to create a safety light beam across the garage door entrance.

With a detection range of up to 8 metres, 24V DC operating voltage and simple 2-wire technology, the MARANTEC SPECIAL 630 provides reliable obstacle detection for compatible automatic garage door systems.

When the safety light beam is interrupted during closing, the connected compatible garage door control system can stop and reverse the door according to its programmed safety logic. The SPECIAL 630 also features IP54 protection and LED function and contamination indication.

Key Features

• Original MARANTEC safety photocell
• Model SPECIAL 630
• Through-beam optical safety sensor
• Maximum detection range up to 8 metres
• Minimum detection range 1 metre
• 24V DC operating voltage
• Simple 2-wire connection technology
• Polarity reversal protected connection
• IP54 protection rating
• LED function indication
• LED contamination indication
• Transmitter and receiver system
• Includes 2 × 10 metre connection cables
• Designed for automatic door safety
• Helps protect people, vehicles and property
• Compact professional design

Technical Specifications

MARANTEC SPECIAL 630 8 Metre Safety Photocell

The MARANTEC SPECIAL 630 provides a detection range from approximately 1 metre up to 8 metres, making it suitable for a wide range of automatic garage door entrances.

The transmitter and receiver are installed opposite each other to create an optical safety beam across the protected area.

How MARANTEC SPECIAL 630 Works

The SPECIAL 630 consists of a transmitter and receiver positioned on opposite sides of the garage door entrance.

During normal operation, an optical beam passes continuously between the two sensors. When a person, vehicle or object interrupts the beam, the photocell sends the appropriate safety signal to the compatible garage door control system.

During closing, the control system can stop and reverse the garage door according to its programmed safety configuration.

24V DC Photocell Sensor

The MARANTEC SPECIAL 630 operates from a 24V DC power supply provided by a compatible automatic door control system.

The correct control-board connection should always be confirmed before installation.

Simple 2-Wire Technology

One of the main advantages of the SPECIAL 630 is its 2-wire connection technology.

Supply, signal and testing functions are handled through only two connectable wires, helping simplify professional wiring and installation.

IP54 Protection

The MARANTEC SPECIAL 630 features an IP54 protection rating, providing protection against dust ingress and splashing water appropriate to its specified installation environment.

Correct installation and cable protection remain important for reliable long-term operation.

LED Function Indicator

Integrated LED indication provides visual information about photocell operation and helps technicians during installation, alignment, testing and troubleshooting.

Contamination Indication

The SPECIAL 630 also provides contamination indication by LED. This can help identify when the optical sensor area requires inspection or cleaning.

Garage Door Obstacle Detection

The SPECIAL 630 is designed as an optical safety device to help protect against personal injury and damage to property.

If a vehicle, person or object crosses the light beam, the interruption is detected and communicated to the compatible automatic door controller.

Automatic Garage Door Safety

Photocell sensors provide an additional safety layer for automatic garage doors by monitoring the entrance while the door is operating.

Correct installation is especially important for automatic closing applications where the garage door may close without a direct manual command.

MARANTEC Comfort Garage Door Opener Compatibility

The SPECIAL 630 is designed for compatible MARANTEC garage door automation and control systems equipped with a connection for 2-wire light barriers.

Compatibility should always be confirmed from the exact garage door opener or control-board model before installation.

Suitable MARANTEC Garage Door Systems

The SPECIAL 630 can be used with compatible MARANTEC garage door automation systems where the controller supports the required 2-wire photocell interface.

This includes compatible operators from MARANTEC garage automation ranges such as the COMFORT series, depending on the specific control configuration.

Transmitter & Receiver Photocell Set

The MARANTEC SPECIAL 630 uses two separate optical units:

• TX – Transmitter: Creates and sends the optical safety beam.
• RX – Receiver: Receives and monitors the safety beam.

Both units must be correctly positioned and aligned across the protected entrance.

MARANTEC SPECIAL 630 Package Includes

• 1 × Light Barrier Transmitter
• 1 × Light Barrier Receiver
• 2 × 10 Metre Connection Cables
• 4 × Cable Connectors
• Installation Material

Photocell Installation & Alignment

Correct positioning and alignment of the transmitter and receiver are essential for reliable photocell operation.

The optical path between both sensors should remain clear and the wiring should be correctly connected to the designated 2-wire safety interface of the compatible controller.

Replacement MARANTEC Garage Door Photocells

The SPECIAL 630 is suitable for replacing compatible damaged or faulty MARANTEC safety photocells.

Before ordering a replacement, confirm the existing photocell model and ensure the installed garage door controller supports the MARANTEC 2-wire light barrier system.

Garage Door Safety Sensor Applications

• Automatic sectional garage doors
• Villa garage doors
• Residential garage doors
• Townhouse garages
• Automatic overhead doors
• Private parking garages
• Commercial garage entrances
• Compatible MARANTEC automation systems

Professional MARANTEC SPECIAL 630 Installation

Professional installation is recommended for the MARANTEC SPECIAL 630. The photocell transmitter and receiver should be correctly positioned, wired, aligned and connected to the correct safety input of the compatible automatic door controller.

After installation, the safety beam should be tested during the garage door closing cycle to confirm that beam interruption produces the required safety response.

MARANTEC SPECIAL 630 Photocell Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies MARANTEC SPECIAL 630 garage door photocell sensors in UAE for compatible MARANTEC automatic garage door systems.

Supply, professional installation, replacement and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
