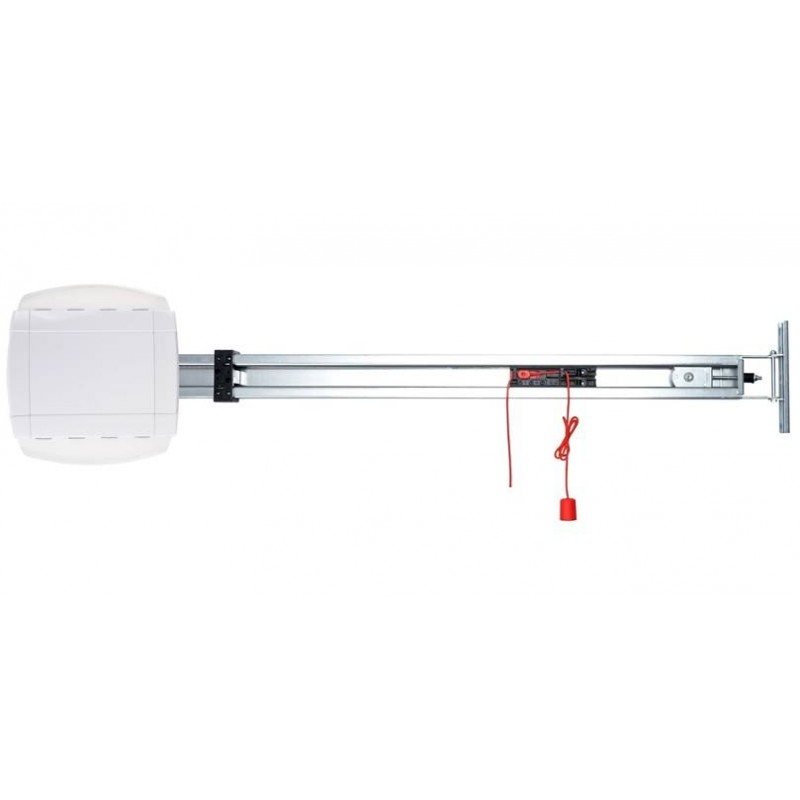

MARANTEC COMFORT 370 Garage Door Opener UAE

The MARANTEC COMFORT 370 Garage Door Opener is a powerful high-speed automatic garage door motor designed for residential sectional, overhead, tipping and canopy garage doors. Delivering a maximum push and pull force of 850N, the COMFORT 370 is suitable for compatible garage doors weighing up to 185 KG.

The MARANTEC COMFORT 370 uses a 24V DC motor powered from a 230V AC mains supply and reaches a maximum running speed of 23.5 cm/s. It can automate sectional garage doors up to 5.5 metres wide and compatible overhead, tipping and canopy doors up to 5 metres wide.

With soft start and soft stop, separately adjustable opening and closing speeds, integrated electronic control, bright LED lighting and remote control operation, the MARANTEC COMFORT 370 is an excellent solution for villas and residential garages requiring fast and reliable automatic door operation.

Key Features

• Original MARANTEC COMFORT garage door opener
• Model COMFORT 370
• Maximum push and pull force 850N
• Suitable for compatible garage doors up to 185 KG
• Sectional doors up to 5.5 metres wide
• Overhead doors up to 5 metres wide
• Tipping and canopy doors up to 5 metres wide
• 24V DC motor technology
• 230V AC mains supply
• High-speed operation up to 23.5 cm/s
• Maximum 4 cycles per hour
• Maximum 32 cycles per day
• Soft start and soft stop
• Separately adjustable opening and closing speeds
• Integrated electronic control
• Illuminated LC programming display
• 2 × 10 LED lighting modules
• Remote control operation
• Photocell connection available
• Push button connection available
• Wicket door contact connection
• Battery backup connection

Technical Specifications

MARANTEC COMFORT 370 High-Speed Garage Door Opener

The MARANTEC COMFORT 370 is part of Marantec's powerful COMFORT 300 series and is designed for garage doors requiring both strong lifting force and faster opening speed.

With a maximum door weight of 185 KG and a running speed of up to 23.5 cm/s, it provides fast and convenient automatic access for residential garages.

Powerful 850N Garage Door Motor

The MARANTEC COMFORT 370 delivers a maximum 850N push and pull force.

This makes it suitable for larger compatible garage doors where a higher operating force is required while maintaining fast and smooth operation.

Maximum 185 KG Garage Door Weight

The COMFORT 370 is suitable for compatible garage doors weighing up to 185 KG.

Garage door weight, dimensions, spring balance, track condition and mechanical resistance should all be checked before selecting and installing the automatic opener.

Sectional Doors Up to 5.5 Metres Wide

The MARANTEC COMFORT 370 supports compatible single-wall and double-wall sectional garage doors up to 5.5 metres wide.

It is also suitable for compatible overhead, tipping and canopy doors up to 5 metres wide.

Fast 23.5 cm/s Garage Door Operation

One of the main advantages of the COMFORT 370 is its high maximum operating speed of 23.5 cm per second.

This allows faster garage door opening compared with slower standard residential operators, reducing waiting time when entering or leaving the property.

24V DC Motor Technology

The COMFORT 370 uses a 24V DC motor controlled by advanced electronic automation technology.

The DC motor enables smooth acceleration and deceleration together with precise control of opening and closing speeds.

Soft Start & Soft Stop

Soft start and soft stop technology provides gentle acceleration and deceleration during garage door movement.

This helps reduce mechanical stress on the garage door, drive rail and connected components while improving overall operating smoothness.

Adjustable Opening & Closing Speeds

The MARANTEC COMFORT 370 allows the opening and closing speeds to be adjusted separately.

This makes it possible to configure fast opening together with controlled closing according to the installation requirements.

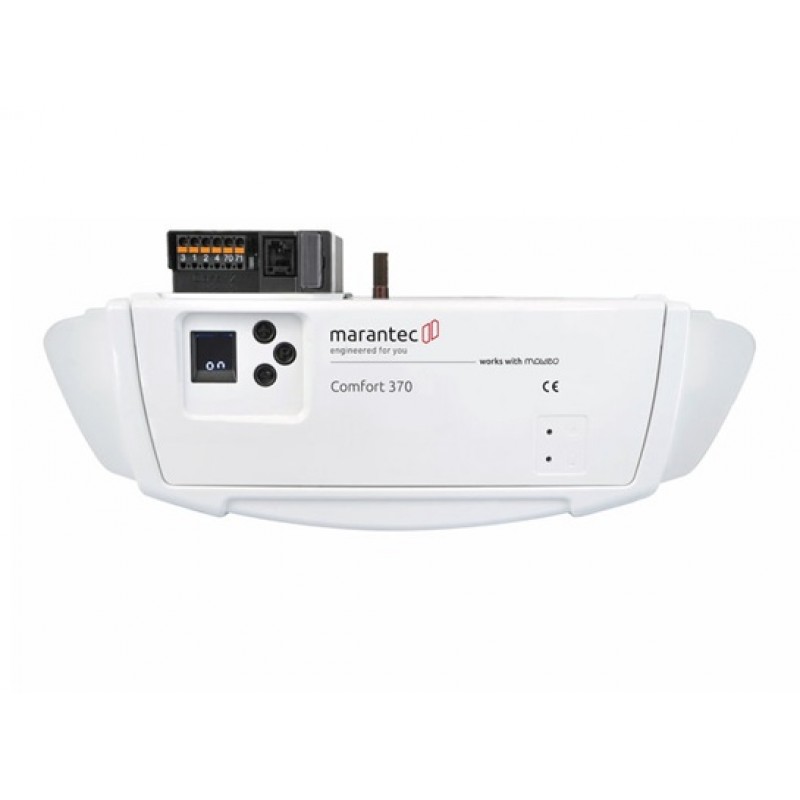

Integrated LC Programming Display

The COMFORT 370 includes an illuminated LC display integrated into the electronic control system.

The display assists installers with programming, setup and diagnostics of the automatic garage door opener.

Bright LED Garage Lighting

The COMFORT 370 incorporates two 10-LED lighting modules, providing bright illumination inside the garage while the automatic door is being operated.

Remote Control Operation

The MARANTEC COMFORT 370 supports wireless remote control operation using compatible MARANTEC radio receivers and transmitters.

The exact remote model depends on the radio version installed in the operator.

868 MHz Multi-Bit Version

The current MARANTEC COMFORT 370 Multi-Bit version can be supplied with a Digital 168 868 MHz module antenna, a Digital 382 two-channel transmitter and a Digital 392 two-channel transmitter.

868 MHz bi·linked Version

The COMFORT 370 is also available with MARANTEC 868 MHz bi·linked technology.

This version can be supplied with a Digital 921 receiver module together with compatible Digital 564 and Digital 572 transmitters.

MARANTEC COMFORT 370 Set Includes

• 1 × MARANTEC COMFORT 370 Motor Unit with Integrated Control
• 1 × MARANTEC Radio Receiver / Module Antenna
• Compatible MARANTEC Remote Controls
• 1 × Universal Installation Set
• 1 × Mains Power Cable

Push Button Connection

The integrated controller provides a connection for a compatible external push button for wired garage door operation.

Photocell Safety Connection

Compatible photocell safety sensors can be connected to provide additional obstacle detection across the garage entrance.

Wicket Door Contact Connection

The COMFORT 370 provides a connection for a compatible wicket door contact where a pedestrian door is incorporated into the main garage door.

Battery Backup Connection

The MARANTEC COMFORT 370 supports connection of a compatible battery backup system for installations where emergency operating capability during a power failure is required.

Compatible Garage Door Types

• Sectional garage doors
• Single-wall sectional doors
• Double-wall sectional doors
• Overhead garage doors
• Tipping garage doors
• Canopy garage doors

Residential Garage Door Applications

• Villa garage doors
• Large residential sectional doors
• Townhouse garages
• Private home garages
• Double garage entrances
• Residential parking areas

Professional MARANTEC COMFORT 370 Installation

Professional installation is recommended for the MARANTEC COMFORT 370. The garage door springs, tracks, rollers, drive rail, opener mounting and electrical supply should all be checked before installation.

After installation, the travel limits, operating force, opening and closing speeds, remote controls and safety functions should be correctly programmed and tested.

MARANTEC COMFORT 370 Garage Door Opener Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies MARANTEC COMFORT 370 garage door openers in UAE for residential sectional, overhead and compatible garage door automation.

Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
