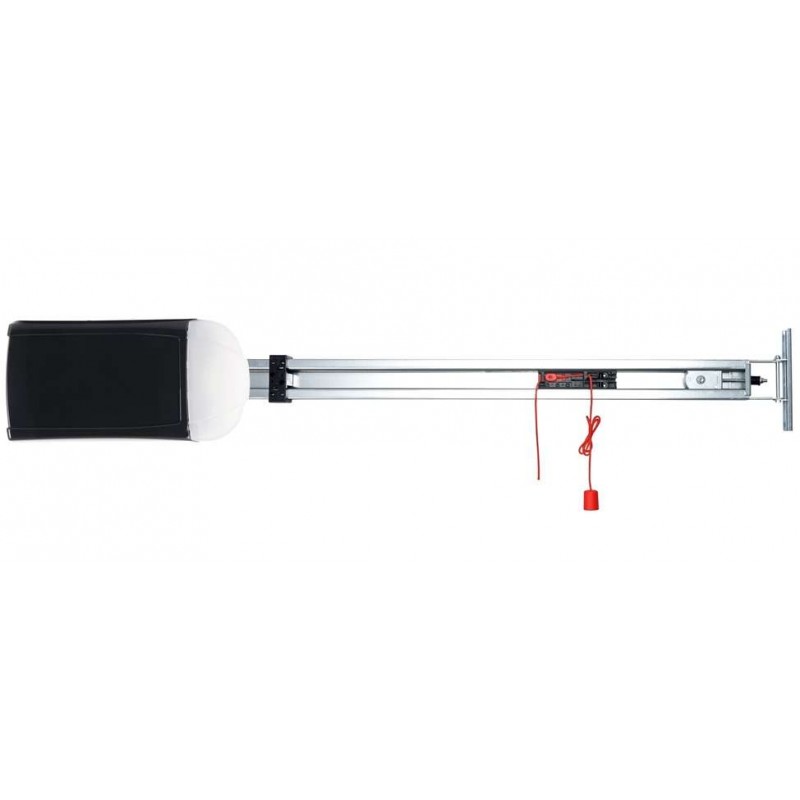

MARANTEC COMFORT 280 Garage Door Opener UAE
Price 1,499 AEDIn Stock
The MARANTEC COMFORT 280 Garage Door Opener is a powerful automatic garage door motor designed for larger residential sectional, overhead, tipping and canopy garage doors. Delivering a maximum push and pull force of 1000N, the COMFORT 280 is suitable for compatible garage doors weighing up to 200 KG.
Powered by a 24V DC motor from a 230V AC mains supply, the MARANTEC COMFORT 280 provides smooth and controlled automatic garage door operation with a maximum running speed of 16 cm/s. It supports compatible sectional and overhead garage doors up to 6 metres wide.
With soft start and soft stop, integrated electronic control, LED lighting and remote control operation, the MARANTEC COMFORT 280 is an excellent solution for villas, residential garages and larger automatic garage doors throughout the UAE.
Key Features
- Original MARANTEC COMFORT garage door opener
- Model COMFORT 280
- Powerful 1000N push and pull force
- Suitable for compatible doors up to 200 KG
- Suitable for sectional doors up to 6 metres wide
- Suitable for overhead doors up to 6 metres wide
- 24V DC motor technology
- 230V AC mains supply
- Maximum running speed 16 cm/s
- Up to 6 cycles per hour
- Up to 48 cycles per day
- Soft start and soft stop
- Adjustable opening and closing speeds
- Integrated electronic control
- Illuminated LC programming display
- Integrated 8 LED lighting module
- Remote control operation
- Photocell connection
- Push button connection
- Battery backup connection
- Compact ceiling-mounted design
Technical Specifications
| Brand | MARANTEC |
| Model | COMFORT 280 |
| Product Type | Automatic Garage Door Opener |
| Maximum Push & Pull Force | 1000N |
| Maximum Door Weight | 200 KG |
| Maximum Sectional Door Width | 6 m |
| Maximum Overhead Door Width | 6 m |
| Maximum Tipping / Canopy Door Width | 6 m |
| Maximum Tilt / Canopy Door Height | 2.25 m |
| Motor Voltage | 24V DC |
| Operating Voltage | 230V AC / 1~ |
| Frequency | 50 / 60 Hz |
| Rated Current | 1.1 A |
| Power Consumption | 0.25 kW |
| Maximum Running Speed | 16 cm/s |
| Maximum Cycles / Hour | 6 |
| Maximum Cycles / Day | 48 |
| Protection Rating | IP20 |
| Lighting | 8 LED Module |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 190 × 125 × 360 mm |
| Motor Unit Weight | 3.8 KG |
MARANTEC COMFORT 280 Sectional Garage Door Opener
The MARANTEC COMFORT 280 is designed for larger automatic sectional garage doors requiring more power than the COMFORT 260 and COMFORT 270 models.
With a maximum 1000N operating force and support for compatible garage doors weighing up to 200 KG, the COMFORT 280 provides dependable automation for larger residential garage doors.
Powerful 1000N Garage Door Motor
The MARANTEC COMFORT 280 delivers a maximum 1000N push and pull force, making it the most powerful model in the COMFORT 260, 270 and 280 series.
The higher operating force makes the COMFORT 280 suitable for larger and heavier compatible garage doors where the lower-force COMFORT models may not be appropriate.
Maximum 200 KG Garage Door Weight
The COMFORT 280 is designed for compatible garage doors weighing up to 200 KG.
The garage door must be correctly balanced and should move smoothly by hand before the automatic opener is installed. Door weight, size, spring condition and mechanical resistance should all be considered when selecting the correct operator.
Garage Doors Up to 6 Metres Wide
The MARANTEC COMFORT 280 supports compatible sectional garage doors up to 6 metres wide.
It can also be used with compatible overhead, tipping and canopy doors up to 6 metres wide within the manufacturer's specified operating limits.
24V DC Motor Technology
The COMFORT 280 uses a 24V DC motor combined with advanced electronic control for smooth and controlled garage door movement.
The low-voltage DC motor supports soft starting and stopping to reduce mechanical stress on the garage door, drive system and connected components.
Maximum Running Speed 16 cm/s
The MARANTEC COMFORT 280 provides a maximum operating speed of 16 cm per second, providing convenient automatic opening and closing for compatible garage doors.
Soft Start & Soft Stop
Soft start and soft stop technology provides smooth acceleration and deceleration during garage door movement.
This reduces sudden mechanical movement and helps provide quieter, smoother everyday garage door operation.
Adjustable Opening & Closing Speeds
The COMFORT 280 allows separate adjustment of opening and closing speeds, enabling fast opening while maintaining controlled closing operation.
Integrated LC Display
The MARANTEC COMFORT 280 incorporates an illuminated LC display for programming and diagnostics.
The integrated display simplifies setup of supported garage door operating parameters and helps technicians during programming and troubleshooting.
Integrated LED Garage Lighting
The COMFORT 280 includes an integrated 8 LED lighting module to provide illumination inside the garage during automatic door operation.
Remote Control Garage Door Operation
The MARANTEC COMFORT 280 supports wireless remote control operation, allowing the garage door to be conveniently opened and closed from a compatible MARANTEC transmitter.
868 MHz MARANTEC Radio System
The MARANTEC COMFORT 280 is available with compatible 868 MHz MARANTEC radio systems. Depending on the product version, the operator can be supplied with Multi-Bit or bi·linked radio technology.
The radio receiver version should always be checked before ordering an additional or replacement remote control.
COMFORT 280 868 MHz Multi-Bit Set
The current MARANTEC COMFORT 280 Multi-Bit version can be supplied with a Digital 168 module antenna and Digital 382 two-channel remote control.

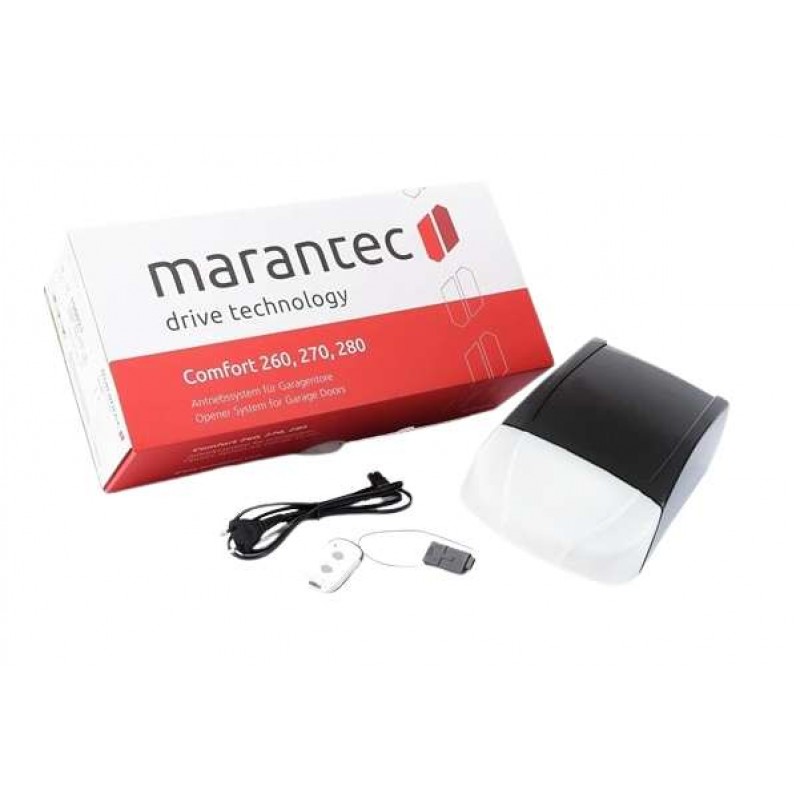

MARANTEC COMFORT 280 Set Includes
- 1 × MARANTEC COMFORT 280 Motor Unit with Integrated Control
- 1 × MARANTEC Radio Receiver / Module Antenna
- 1 × MARANTEC 2-Channel Remote Control
- 1 × Universal Installation Set
- 1 × Mains Power Cable
Push Button Connection
The integrated COMFORT 280 controller provides a connection for a compatible external push button, allowing wired garage door operation from inside the property.
Photocell Safety Sensor Connection
Compatible photocell safety sensors can be connected to the COMFORT 280 control system to provide additional obstacle detection across the garage door entrance.
Battery Backup Connection
The MARANTEC COMFORT 280 provides a connection for a compatible battery backup system, allowing additional emergency operating capability where the correct backup accessories are installed.
Garage Door Safety
The garage door should be correctly balanced and mechanically sound before installation. Travel limits, operating force and connected safety devices should be correctly programmed and tested before the automatic door is placed into normal operation.
Compatible Garage Door Types
- Sectional garage doors
- Single-wall sectional doors
- Double-wall sectional doors
- Overhead garage doors
- Tipping garage doors
- Canopy garage doors
COMFORT 260 vs COMFORT 270 vs COMFORT 280
| Model | Force | Max. Weight | Max. Width |
|---|---|---|---|
| COMFORT 260 | 550N | 90 KG | Up to 5 m* |
| COMFORT 270 | 750N | 165 KG | Up to 5.5 m* |
| COMFORT 280 | 1000N | 200 KG | Up to 6 m |
*Maximum supported width varies according to garage door construction and type.
Residential Garage Door Applications
- Large villa garage doors
- Residential sectional garage doors
- Double garage doors
- Townhouse garages
- Private parking garages
- Apartment parking entrances
- Large residential garage entrances
Professional MARANTEC COMFORT 280 Installation
Professional installation is recommended for the MARANTEC COMFORT 280. The garage door springs, rollers, tracks, drive rail, motor mounting, electrical supply and safety devices should be inspected before installation.
After installation, the opening and closing travel, operating force, remote controls and safety functions should be correctly programmed and tested.
MARANTEC COMFORT 280 Garage Door Opener Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies MARANTEC COMFORT 280 garage door openers in UAE for larger residential sectional and overhead garage door automation.
Supply, professional installation, programming, maintenance, repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
