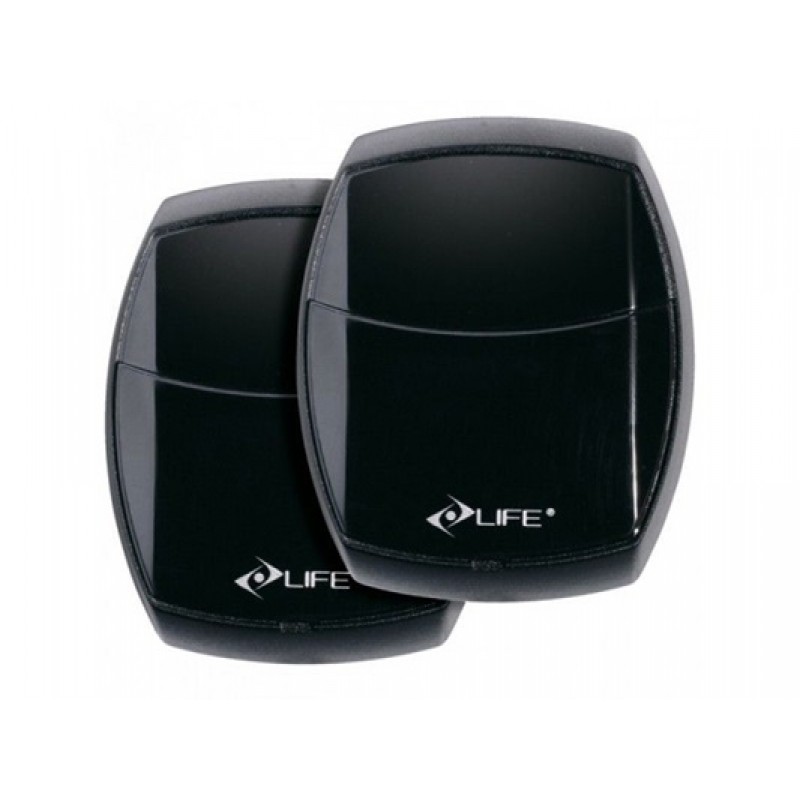

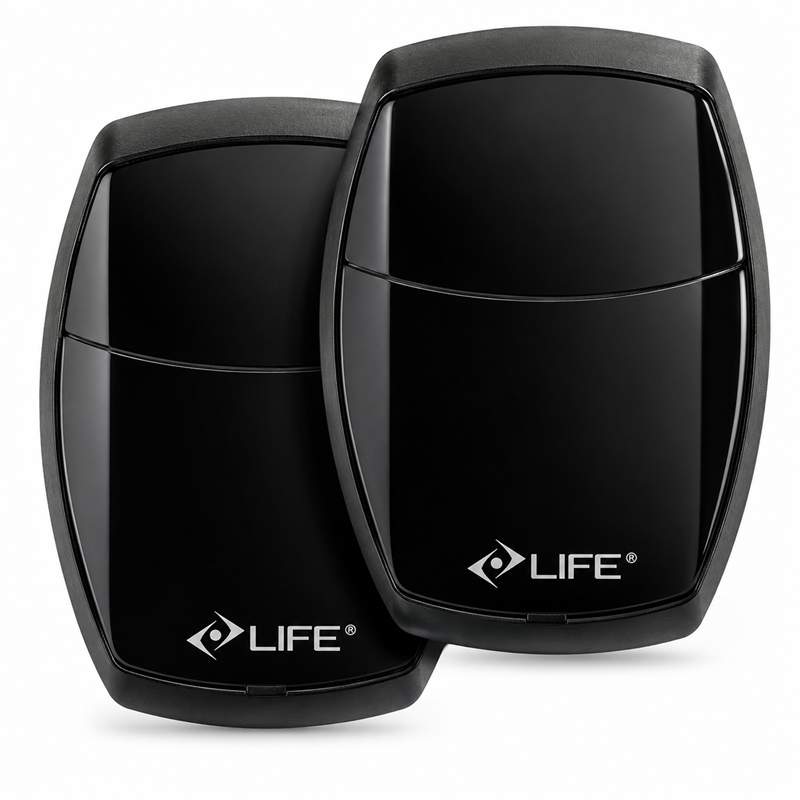

LIFE VISIO Gate Photocell Sensors UAE
Price 200 AEDIn Stock
The LIFE VISIO Photocell Sensors are genuine Italian infrared safety devices designed for automatic gates, garage doors and access automation systems. With a maximum detection range of up to 20 metres, the LIFE VISIO helps detect vehicles, pedestrians and obstacles across the entrance during automatic gate operation.
Operating from a 12V / 24V DC power supply, the LIFE VISIO transmitter and receiver provide reliable infrared communication between opposite sides of the gate entrance. When the infrared beam is interrupted, the receiver sends a safety signal to the compatible gate control board.
With IP54 protection, NC + NO relay contacts and an operating temperature from -20°C to +55°C, LIFE VISIO photocells are suitable for professional residential, commercial and industrial automatic gate installations.
Key Features
- Genuine LIFE Home Integration photocell sensors
- Model VISIO
- Infrared obstacle detection
- Maximum detection range up to 20 metres
- 12V / 24V DC power supply
- 25 / 35 mA Tx/Rx current consumption
- IP54 protection rating
- Normally Closed (NC) receiver contact
- Normally Open (NO) receiver contact
- Maximum relay contact load 1A / 24V DC
- Operating temperature -20°C to +55°C
- Suitable for outdoor gate automation
- Compact wall-mounted design
- Suitable for sliding and swing gates
- Compatible with LIFE automation systems
- Made in Italy
Technical Specifications
| Brand | LIFE Home Integration |
| Model | VISIO |
| Product Type | Infrared Gate Safety Photocell Sensors |
| Maximum Detection Range | 20 m |
| Power Supply | 12V / 24V DC |
| Current Consumption Tx/Rx | 25 / 35 mA |
| Protection Rating | IP54 |
| Receiver Contacts | NC + NO |
| Maximum Contact Load | 1A / 24V DC |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 64 × 78 × 26 mm / 76 × 40 × 22 mm |
| Installation | Wall Mounted |
| Application | Automatic Gate & Garage Door Safety |
| Country of Origin | Italy |
20 Metre Infrared Gate Safety Sensor
The LIFE VISIO provides an infrared detection range of up to 20 metres, making it suitable for a wide variety of residential and commercial automatic gate entrances.
The system consists of a transmitter and receiver installed opposite each other. An infrared beam is transmitted continuously between the two photocells during normal operation.
How LIFE VISIO Photocells Work
The LIFE VISIO transmitter sends an infrared beam to the receiver across the automatic gate entrance.
When a vehicle, person or object interrupts the infrared beam, the photocell receiver changes its relay contact state and sends a signal to the connected automatic gate control board.
The response of the gate depends on the control board programming and the safety input to which the photocells are connected.
12V / 24V DC Power Supply
The LIFE VISIO photocells operate from a 12V or 24V DC power supply, allowing integration with compatible automatic gate control systems.
The transmitter and receiver consume approximately 25 mA and 35 mA respectively.
NC + NO Relay Contacts
The LIFE VISIO receiver provides both Normally Closed (NC) and Normally Open (NO) relay contacts.
This allows the photocells to be connected to compatible gate control boards according to the required safety-input configuration.
IP54 Weather Protection
With an IP54 protection rating, LIFE VISIO photocells are designed for automatic gate installations where the sensors are exposed to normal outdoor conditions.
Correct mounting, cable entry sealing and alignment are important for reliable long-term outdoor operation.
Compatible with LIFE Sliding Gate Motors
LIFE VISIO photocells can be used with compatible LIFE sliding gate automation systems including:
- LIFE ACER 400 KG Sliding Gate Motor
- LIFE ACER 600 KG Sliding Gate Motor
- LIFE ACER 800 KG Sliding Gate Motor
- LIFE ACER 1200 KG Sliding Gate Motor
- LIFE ACER 1500 KG Sliding Gate Motor
- LIFE ACER 2000 KG Sliding Gate Motor
- LIFE DEUS Sliding Gate Motors
Compatible with LIFE Swing Gate Motors
The LIFE VISIO is also suitable for compatible LIFE automatic swing gate systems, including:
- LIFE OP3 UNI Swing Gate Motor
- LIFE OPTIMO OP3 Swing Gate Automation
- LIFE OP5 UNI Swing Gate Motor
- LIFE OPTIMO OP5 Swing Gate Automation
LIFE Garage Door Photocell Sensors
LIFE VISIO photocells can also be integrated with compatible LIFE garage door automation systems where the installed control unit supports external photocell safety devices.
Photocells installed across the garage entrance can provide additional obstacle detection for vehicles, people and objects.
LIFE Parking Barrier Safety Photocells
Compatible LIFE parking barrier systems can use photocell sensors to detect vehicles or obstacles across the barrier entrance.
Correctly installed safety photocells can help prevent the boom arm from closing while an obstacle is detected in the protected area.
Compatible LIFE Control Boards
LIFE VISIO photocells can be integrated with compatible LIFE automation control boards, including suitable controllers used with LIFE sliding and swing gate systems.
The photocell relay output should be connected to the correct safety input according to the control board wiring diagram.
Photocell Safety for Automatic Sliding Gates
For an automatic sliding gate, photocells are normally installed across the vehicle entrance so that the infrared beam monitors the gate passage.
If the beam is interrupted during the closing cycle, the gate controller can react according to its programmed safety logic.
Photocell Safety for Automatic Swing Gates
On automatic swing gates, photocells can be positioned to protect the vehicle passage and other required movement areas.
The number and position of photocell pairs should be determined according to the gate design, opening direction and installation requirements.
LIFE VISIO Transmitter & Receiver
A complete photocell system uses two units:
- TX – Transmitter: Sends the infrared beam.
- RX – Receiver: Receives the infrared beam and provides the relay safety output.
Both units must be correctly positioned and aligned for reliable operation.
Photocell Alignment
Correct alignment between the transmitter and receiver is essential. The two photocells should face each other directly with a clear line of sight.
Poor alignment, damaged wiring, dirty sensor covers or physical obstructions can affect photocell operation.
Replacement LIFE Gate Photocells
The LIFE VISIO is suitable for replacing compatible damaged or faulty photocell sensors in LIFE automatic gate installations.
Before replacing existing photocells, confirm the control board voltage, wiring arrangement and safety-input configuration.
Automatic Gate Photocell Applications
- Automatic sliding gates
- Automatic swing gates
- Garage door automation
- Parking barrier systems
- Villa entrances
- Residential compounds
- Apartment buildings
- Commercial properties
- Office entrances
- Warehouse gates
- Factory entrances
- Industrial access points
Professional LIFE VISIO Installation
Professional installation is recommended for LIFE VISIO photocell sensors. The transmitter and receiver must be correctly positioned, aligned, powered and connected to the appropriate safety input of the automatic gate control board.
After installation, the photocell safety function should be tested throughout the complete gate opening and closing cycle before the automation system is placed into normal operation.
