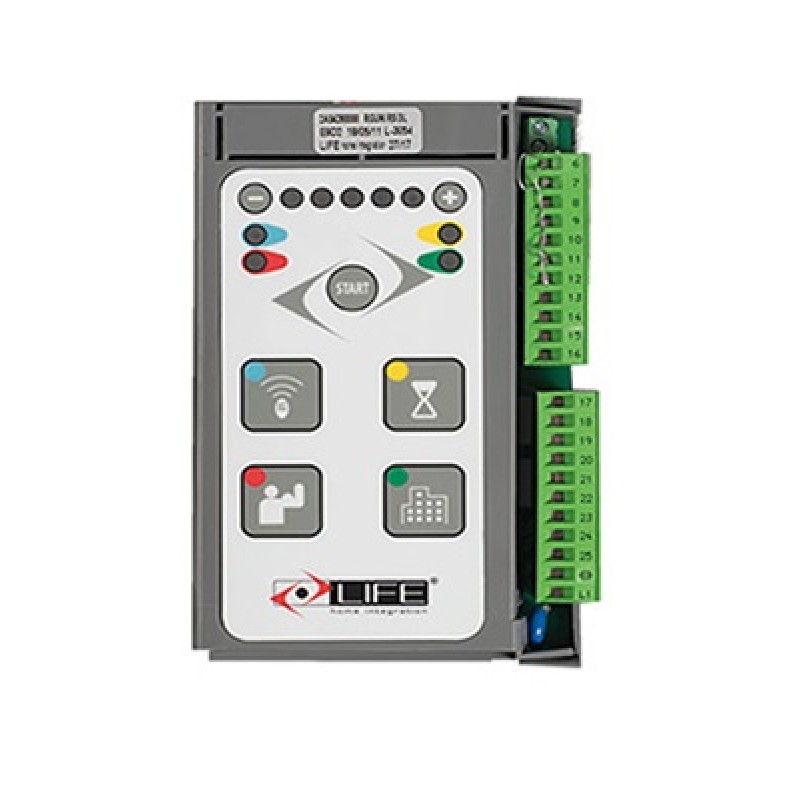

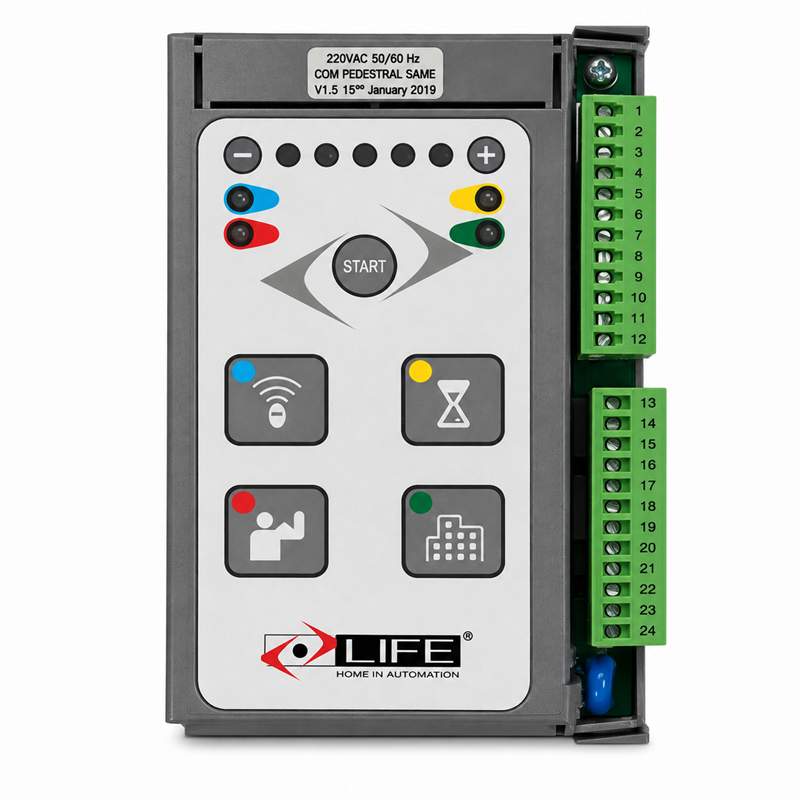

LIFE RG UNI RS DL Swing Gate Control Board UAE
Price 800 AEDIn Stock
The LIFE RG UNI RS DL Control Board is an original electronic control unit designed for compatible LIFE automatic swing gate motors. Manufactured by LIFE Home Integration in Italy, the controller provides intelligent management of one or two swing gate motors together with remote controls, photocell sensors, flashing lights and other compatible gate automation accessories.
The LIFE RG UNI RS DL is suitable for compatible LIFE OP3 UNI and LIFE OP5 UNI swing gate automation systems. It incorporates a built-in 433.92 MHz radio receiver supporting LIFE Rolling Code and Auto Code remote controls.
Designed for professional automatic gate installations, the RG UNI RS DL provides motor control, pedestrian opening, step-by-step operation, photocell safety management, electric lock connection and programmable automatic gate functions.
Key Features
- Original LIFE Home Integration control board
- Model RG UNI RS DL
- Designed for automatic swing gates
- Compatible with LIFE OP3 UNI swing gate motors
- Compatible with LIFE OP5 UNI swing gate motors
- Suitable for one or two swing gate motors
- Designed for compatible 230V motor systems
- Built-in radio receiver
- 433.92 MHz radio frequency
- Up to 1000 remote control codes
- LIFE Rolling Code support
- LIFE Auto Code support
- Pedestrian opening command
- Step-by-step command input
- Photocell safety inputs
- Electric lock connection
- Flashing warning light output
- Indicator light output
- Programmable gate operation
- Made in Italy
Technical Specifications
| Brand | LIFE Home Integration |
| Model | RG UNI RS DL |
| Product Type | Swing Gate Motor Control Board / PCB |
| Gate Type | Single or Double-Leaf Swing Gate |
| Motor System | 230V |
| Compatible Motors | LIFE OP3 UNI & LIFE OP5 UNI |
| Radio Receiver | Built-In |
| Radio Frequency | 433.92 MHz |
| Receiver Memory | Up to 1000 Codes |
| Radio Coding | LIFE Rolling Code / Auto Code |
| Command Inputs | Pedestrian & Step-by-Step |
| Safety Inputs | PHOTO & PHOTO1 |
| Electric Lock | Supported |
| Flashing Light | Supported |
| Application | Automatic Swing Gate Automation |
| Country of Origin | Italy |
Original LIFE OP3 & OP5 Swing Gate Motor Control Board
The LIFE RG UNI RS DL is designed for compatible LIFE swing gate automation systems and provides electronic management of one or two automatic gate operators.
It is particularly suitable as an original replacement control board for compatible LIFE OP3 UNI and LIFE OP5 UNI swing gate installations.
Compatible LIFE Swing Gate Motors
- LIFE OP3 UNI Swing Gate Motor
- LIFE OPTIMO OP3 Swing Gate Motor
- LIFE OP5 UNI Swing Gate Motor
- LIFE OPTIMO OP5 Swing Gate Motor
Always confirm the existing control board model and motor version before ordering a replacement PCB.
Control for Two-Leaf Swing Gates
The LIFE RG UNI RS DL is designed for two-leaf automatic swing gate systems. It independently manages Motor 1 and Motor 2 to provide coordinated opening and closing of both gate leaves.
Correct motor connections and gate setup allow the controller to manage the operating sequence required for double-leaf swing gates.
Single Swing Gate Motor Operation
The controller can also be configured for compatible single-leaf swing gate installations where only one automatic gate motor is required.
Built-In 433.92 MHz Radio Receiver
The LIFE RG UNI RS DL incorporates a 433.92 MHz radio receiver for compatible LIFE remote controls.
The integrated receiver provides memory for up to 1000 compatible transmitter codes and supports LIFE Rolling Code and Auto Code technology.
LIFE MAXI2 Remote Control Compatibility
Compatible LIFE MAXI2 rolling code remote controls can be programmed to the control board for convenient wireless operation of the automatic swing gate.
Remote controls should be programmed according to the correct LIFE receiver programming procedure.
Pedestrian Opening Command
The LIFE RG UNI RS DL provides a dedicated pedestrian opening function. This allows partial gate operation for pedestrian access without requiring both gate leaves to complete a normal full opening cycle.
This function can be useful for villas, residential properties, offices and commercial entrances where pedestrian access is frequently required.
Step-by-Step Gate Command
The controller provides a STEP command input for compatible external control devices.
Depending on the programmed operating logic, the step command manages the gate through its automatic opening, stopping and closing sequence.
Photocell Safety Sensor Inputs
The LIFE RG UNI RS DL supports compatible photocell safety devices through dedicated PHOTO and PHOTO1 inputs.
Correctly installed photocell sensors help detect vehicles, pedestrians and obstacles across the automatic gate entrance and provide additional protection during gate operation.
LIFE VISIO Photocell Compatibility
The control board can be used with compatible LIFE VISIO photocell safety sensors as part of a complete LIFE automatic swing gate system.
Electric Lock Connection
The LIFE RG UNI RS DL provides support for a compatible electric gate lock.
An electric lock can be particularly useful on large swing gates where additional mechanical locking is required when the gate is fully closed.
Flashing Warning Light Output
A compatible flashing warning light can be connected to provide a visible indication while the automatic swing gate is opening or closing.
The controller can be integrated with compatible LIFE SUNLED flashing lights according to the installation requirements.
Automatic Closing
The LIFE control system supports programmable automatic closing. When correctly configured, the swing gate can automatically close after the programmed pause period.
Photocell safety sensors and other required safety devices should be correctly installed and tested when automatic closing is enabled.
Gate Opening & Closing Programming
The control board provides programming functions for setting up automatic swing gate movement and operating parameters.
Correct setup is important for coordinating both motors, gate leaf movement, opening and closing sequence and connected safety accessories.
Replacement LIFE Swing Gate Motor PCB
The LIFE RG UNI RS DL is an ideal replacement for a damaged or faulty original controller in a compatible LIFE swing gate automation system.
Before replacing the control board, the complete gate system should be diagnosed because problems can also be caused by motors, capacitors, photocells, wiring, limit systems, power supply or connected accessories.
Compatible LIFE Gate Accessories
- LIFE MAXI2 remote controls
- LIFE VISIO photocell sensors
- LIFE SUNLED flashing warning lights
- Electric gate locks
- Push buttons
- Key switches
- GSM gate openers
- WiFi gate controllers
- RFID access control systems
- Keypad access control
- Intercom systems
Residential & Commercial Applications
- Villa swing gates
- Residential entrance gates
- Double-leaf automatic gates
- Single-leaf automatic gates
- Residential compounds
- Apartment entrances
- Commercial buildings
- Office entrances
- Business parks
- Automatic vehicle entrances
Professional LIFE RG UNI RS DL Installation
Installation and replacement of the LIFE RG UNI RS DL control board should be carried out by a qualified automatic gate technician.
Motor wiring, capacitors, photocells, electric lock, flashing light, remote controls, safety devices and mains electrical connections should be correctly connected before programming and testing the automatic gate.
LIFE RG UNI RS DL Control Board Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies LIFE RG UNI RS DL control boards in UAE for compatible LIFE OP3 UNI and LIFE OP5 UNI automatic swing gate motors.
Control board supply, replacement, programming, swing gate motor repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
