ROGER E80/TX52R/2 Remote Control UAE
Price 80 AEDIn Stock

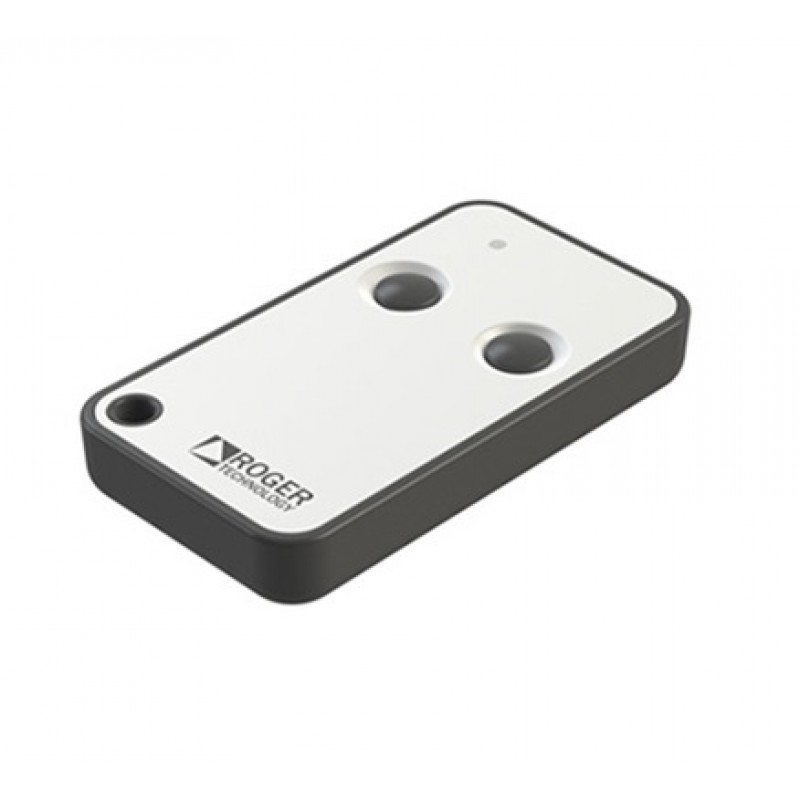

The ROGER E80/TX52R/2 Remote Control is an original 2-channel wireless transmitter designed for compatible ROGER automatic gate, garage door and access automation systems. Operating at 433.92 MHz, the E80/TX52R/2 uses fixed-code radio technology and includes a convenient transmitter copy function.
The ROGER E80/TX52R/2 provides 2 programmable channels, AM/ASK modulation and up to 65,536 fixed-code combinations. Its compact 38 × 68 × 11 mm design and CR2032 3V battery make it convenient for everyday gate and garage door operation.
With an open-field radio range of up to approximately 150 metres, the E80/TX52R/2 is suitable as an additional or replacement remote for compatible ROGER automation systems using the correct fixed-code receiver.
Key Features
- Original ROGER Technology remote control
- Series E80
- Model E80/TX52R/2
- 2-channel transmitter
- 433.92 MHz operating frequency
- Fixed-code radio encoding
- AM/ASK modulation
- 65,536 code combinations
- Built-in copy function
- Maximum open-field range up to 150 metres
- 3V DC power supply
- CR2032 lithium battery
- 12 mA absorption
- Compact lightweight design
- Suitable as replacement or additional transmitter
- Made in Italy
Technical Specifications
| Brand | ROGER Technology |
| Series | E80 |
| Model | E80/TX52R/2 |
| Product Type | Wireless Gate Remote Control |
| Channels | 2 |
| Frequency | 433.92 MHz |
| Encoding | Fixed Code |
| Modulation | AM / ASK |
| Number of Combinations | 65,536 |
| Copy Function | Yes |
| Maximum Range | Up to 150 m in Open Field |
| Power Supply | 3V DC |
| Battery | CR2032 3V |
| Absorption | 12 mA |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 38 × 68 × 11 mm |
| Packed Weight | 0.03 KG |
ROGER E80/TX52R/2 433.92MHz Gate Remote
The ROGER E80/TX52R/2 belongs to the E80 transmitter family and is designed for compatible ROGER radio-control systems operating at 433.92 MHz.
Its two-button configuration allows two compatible commands or automation functions to be controlled depending on the connected receiver and control-board programming.
2-Channel Remote Control
The E80/TX52R/2 provides 2 independent radio channels.
Depending on the automation system, the two buttons can be programmed for functions such as full gate opening, pedestrian opening, garage door operation or another compatible command.
433.92 MHz Operating Frequency
The ROGER E80/TX52R/2 operates at 433.92 MHz.
The radio frequency alone does not guarantee compatibility. The receiver must also support the correct ROGER fixed-code radio system.
Fixed Code Radio Technology
The E80/TX52R/2 is a fixed-code transmitter with 65,536 available code combinations.
This is different from ROGER rolling-code transmitters such as the E80/TX2R/RC, which use a different radio encoding system.
Remote Copy Function
The ROGER E80/TX52R/2 includes a radio copy function, allowing compatible transmitter information to be copied according to the supported programming procedure.
This can simplify the setup of an additional compatible remote control when the correct existing transmitter and receiver system are available.
AM/ASK Modulation
The transmitter uses AM/ASK radio modulation for communication with a compatible ROGER receiver.
150 Metre Open-Field Range
ROGER specifies a maximum radio range of approximately 150 metres in open-field conditions.
Actual operating range may be reduced by walls, metal structures, buildings, electrical interference, antenna position and receiver installation.
CR2032 3V Battery
The ROGER E80/TX52R/2 uses one CR2032 3V lithium battery.
If the transmitter range becomes weak or operation becomes intermittent, the battery should be checked before replacing the complete remote control.
Compact Remote Control Design
With dimensions of approximately 38 × 68 × 11 mm, the E80/TX52R/2 is compact and convenient for everyday use.
Its lightweight construction makes it easy to carry with vehicle keys or other personal accessories.
Replacement ROGER Gate Remote
The E80/TX52R/2 can be used as a replacement for a lost, damaged or faulty compatible ROGER fixed-code remote control.
Before ordering, confirm the existing remote model, receiver type, 433.92 MHz frequency and fixed-code compatibility.
Additional Remote for Existing Gate
Additional E80/TX52R/2 transmitters can be programmed or copied for compatible systems when more remote controls are required for family members, employees, security staff or other authorised users.
Compatible ROGER Automation Systems
The ROGER E80/TX52R/2 can operate compatible ROGER automation systems fitted with the appropriate fixed-code radio receiver.
- Automatic sliding gates
- Automatic swing gates
- Garage door openers
- Sectional door automation
- Parking gate automation
- Compatible ROGER radio receivers
ROGER Sectional Door Compatibility
ROGER currently supplies the E80/TX52R/2 with compatible sectional-door automation kits such as the C40/1000, demonstrating its use within ROGER fixed-code radio systems.
Check Compatibility Before Ordering
The ROGER E80 transmitter family includes both fixed-code and rolling-code models.
The E80/TX52R/2 is specifically a fixed-code transmitter. A visually similar ROGER E80 remote using rolling code may not be directly interchangeable without checking the installed receiver.
ROGER E80/TX52R/2 Remote Control Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies ROGER E80/TX52R/2 remote controls in UAE for compatible ROGER automatic gate, garage door and access automation systems.
Remote-control supply, replacement, compatibility checking and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
