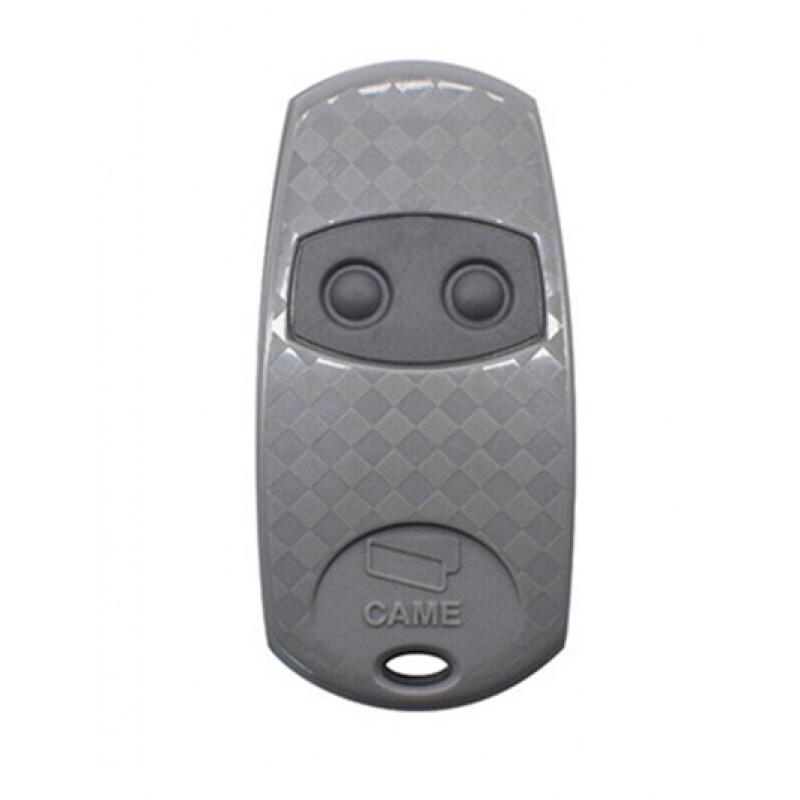

CAME TOP-432EE Remote Control UAE
Price 50 AEDIn Stock
The CAME TOP-432EE Remote Control is an original two-channel wireless transmitter designed for compatible CAME automatic gate, garage door and parking barrier systems. Operating at 433.92 MHz, the TOP-432EE provides convenient and reliable wireless control for residential and commercial automation applications.
The CAME 001TOP-432EE is a two-button multi-user transmitter featuring a self-learning function for convenient transmitter-to-transmitter programming. It supports both TOP 12-bit and TAM 24-bit coding modes.
The transmitter provides 4,096 code combinations in TOP mode and 16,777,216 combinations in TAM mode. Its compact ABS housing and CR2032 lithium battery make it suitable for everyday automatic gate operation.
Key Features
- Original CAME remote control
- CAME TOP 433.92 MHz Series
- Model TOP-432EE
- Product code 001TOP-432EE
- 2-button / 2-channel transmitter
- 433.92 MHz radio frequency
- Multi-user transmitter
- Self-learning function
- Transmitter-to-transmitter programming
- TOP 12-bit coding mode
- TAM 24-bit coding mode
- 4,096 combinations in TOP mode
- 16,777,216 combinations in TAM mode
- Radio range approximately 50–150 metres
- 1 × CR2032 lithium battery
- Compact ABS housing
- Suitable for compatible CAME automation systems
Technical Specifications
| Brand | CAME |
| Series | TOP 433.92 MHz |
| Model | TOP-432EE |
| Product Code / SKU | 001TOP-432EE |
| Product Type | Gate Remote Control / Radio Transmitter |
| Channels | 2 |
| Buttons | 2 |
| Radio Frequency | 433.92 MHz |
| Coding Modes | TOP 12-bit / TAM 24-bit |
| TOP Mode Combinations | 4,096 |
| TAM Mode Combinations | 16,777,216 |
| Programming | Self-Learning / Transmitter-to-Transmitter |
| Maximum Radio Range | Approx. 50–150 m |
| Battery | 1 × CR2032 Lithium |
| Operating Temperature | -20°C to +55°C |
| Material | ABS |
| Dimensions | 32 × 68.5 × 11 mm |
CAME 001TOP-432EE 2-Button 433.92 MHz Gate Remote Control
The CAME TOP-432EE is a compact two-channel transmitter designed for compatible CAME automation systems operating at 433.92 MHz. Its two buttons allow two compatible commands or automation functions to be controlled depending on receiver configuration.
TOP & TAM Coding Modes
The CAME TOP-432EE supports TOP 12-bit and TAM 24-bit coding. In TOP mode, the transmitter provides 4,096 possible combinations, while TAM mode provides 16,777,216 combinations.
Remote-to-Remote Self-Learning
The TOP-432EE features a self-learning function, allowing compatible transmitter codes to be learned from another authorized transmitter when the automation system and receiver configuration permit this programming method.
433.92 MHz Frequency
The CAME TOP-432EE operates at a radio frequency of 433.92 MHz. Before purchasing a replacement remote, the model, frequency and coding system should be checked to ensure compatibility with the existing CAME receiver.
2-Button Remote Control
The TOP-432EE is a two-button, two-channel transmitter. Depending on the receiver configuration, the buttons can be used to operate compatible gates, garage doors, parking barriers or other CAME automation commands.
50–150 Metre Radio Range
CAME specifies a maximum radio range of approximately 50 to 150 metres. Actual operating distance can vary depending on the receiver, antenna, buildings, interference and installation environment.
CR2032 Lithium Battery
The CAME TOP-432EE uses one CR2032 lithium battery. The battery can be replaced when transmitter range becomes reduced or the remote stops transmitting correctly.
Compact Remote Control
With dimensions of approximately 32 × 68.5 × 11 mm, the TOP-432EE is compact and convenient for everyday use.
Compatible Applications
- CAME sliding gate motors
- CAME swing gate motors
- CAME garage door openers
- CAME parking gate barriers
- Compatible CAME radio receivers
- Residential automatic gates
- Commercial gate automation
- Parking access systems
CAME TOP-432EE Remote Control Supplier in UAE
AAM Automatic Doors & Gate Barriers supplies CAME TOP-432EE remote controls in UAE for compatible CAME automatic gates, garage door openers and parking gate barriers.
Replacement remote controls, additional transmitters and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
