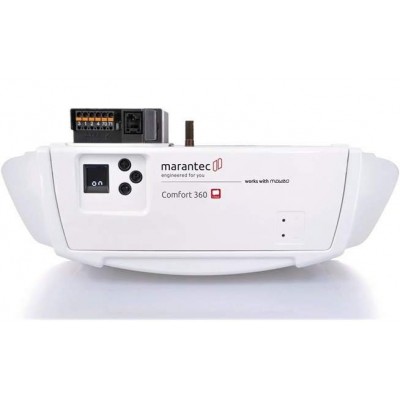

MARANTEC COMFORT 360

MARANTEC COMFORT 360 Garage Door Opener Motor in UAE

• Comfort 360
• Comfort 360 Set for garage doors up to 110 kg
• 24 V-DC motor, 650 N, 22 cm/s 183504
• For light doors up to 3.5 m:
• The Comfort 360 is suitable for doors up to a weight of 110 kg.
• Swing, overhead, and canopy doors may have a maximum width of 3.5 m,
• single walled sectional doors up to 5.0 m
• and double-walled sectional doors up to 3.0 m.

Technical Data:

• Push and pull force (max.) [N] : 650
• Running speed (max.) [cm/s] : 22
• Cycles per hour (max.) : 2
• Cycles per day (max.) : 20
• Operating voltage [V] : 230V
• Illuminant : 2x 10 LED module

Area of use:

• Width overhead doors (max.) [m] : 3.5
• Width of tipping and canopy gates (max.) [m] : 3.5
• Height of tilt and canopy gates (max.) [m] : 2.25
• Width of single-wall sectional doors (max.) [m] : 5
• Width of double-walled sectional doors (max.) [m] : 3
• Gate weight (max.) [kg] : 110

Scope of delivery:

• Marantec Comfort 360 Motor unit with integrated control
• Digital 921 Module receiver, 868 MHz bi.linked
• Digital 382 hand transmitter 4-channel, 868 MHz bi.linked
• Universal installation set for up-and-over and sectional doors
• Power cable with Euro plug type C, 1,500 mm
