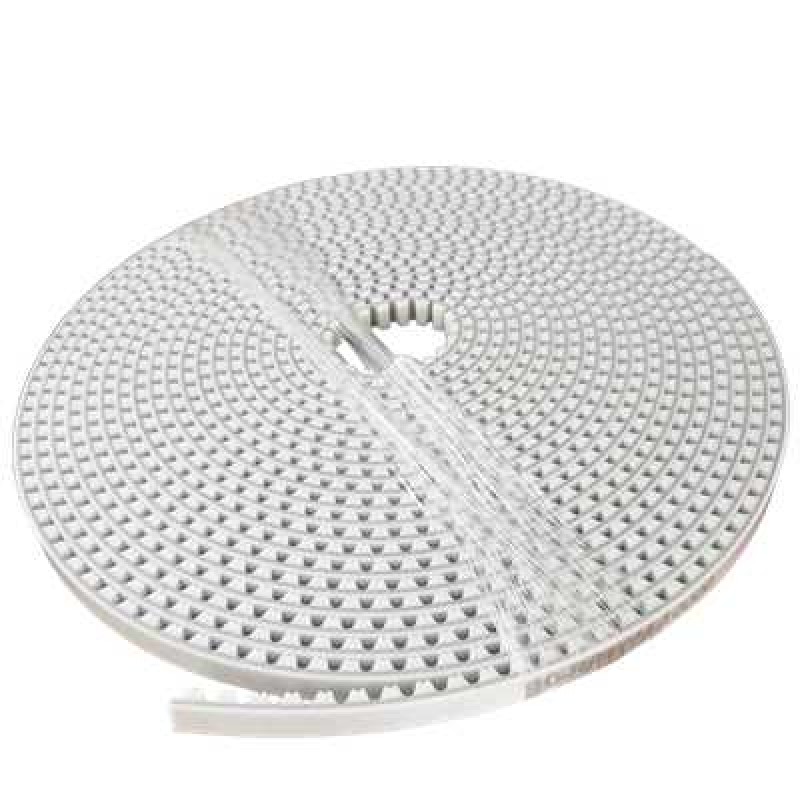

Garage Door Opener Drive Belt 8 Meter UAE

The Garage Door Opener Drive Belt 8 Meter is a replacement transmission belt designed for compatible automatic garage door opener rail systems. The belt transfers power from the garage door motor drive system to the trolley, allowing the garage door to open and close smoothly.

This garage motor belt measures 8 metres in length, 10 mm in width, 8 mm pitch and 6 mm in height. It can be used as a replacement belt for compatible garage door opener systems after confirming the original belt dimensions and tooth profile.

A correctly installed garage door drive belt helps provide smooth and quiet garage door movement and restores reliable operation when the original belt is worn, stretched, damaged or broken.

Key Features

• Garage door opener replacement drive belt
• 8 metre total belt length
• 10 mm belt width
• 8 mm belt pitch
• 6 mm belt height
• Designed for compatible garage door opener rails
• Smooth and quiet transmission
• Suitable for replacement and repair applications
• Can replace worn or damaged garage motor belts
• Suitable for selected residential garage door openers
• Compatible with selected international garage motor brands
• Professional installation available in UAE

Technical Specifications

*Always compare the original belt width, pitch, tooth profile and rail system before ordering.

8 Meter Garage Door Opener Belt

This replacement garage door opener belt has a total length of 8 metres and can be prepared according to the requirements of a compatible garage door opener rail system.

Before installation, the required belt length should be checked against the existing garage door rail and original belt.

10mm Garage Door Drive Belt

The belt has a width of 10 mm, providing a compact drive solution for compatible automatic garage door opener mechanisms.

The width should always be compared with the existing belt because garage door opener manufacturers use different belt sizes and profiles.

8mm Belt Pitch

The drive belt uses an 8 mm pitch. Belt pitch is the distance between corresponding points of adjacent teeth and is an important measurement when selecting a replacement garage motor belt.

An incorrect belt pitch may not engage correctly with the motor drive pulley.

6mm Belt Height

The garage opener drive belt has a specified height of approximately 6 mm.

The complete belt profile should be compared with the original belt before replacement to ensure correct engagement with the garage door opener drive mechanism.

Garage Door Motor Belt Drive

The drive belt is an important component of a belt-driven automatic garage door opener.

When the garage motor operates, the drive mechanism moves the belt through the rail system. The belt then moves the trolley connected to the garage door, providing automatic opening and closing.

Quiet Garage Door Operation

Belt-drive garage door opener systems are popular for their smooth and relatively quiet operation.

A correctly tensioned and properly aligned replacement belt helps maintain smooth movement and reduce unnecessary vibration or operating noise.

Replacement Garage Door Opener Belt

This drive belt can be used to replace a compatible garage door opener belt that has become worn, stretched, cracked or broken.

Before replacing the belt, the garage door opener rail, trolley, motor pulley and tensioning mechanism should also be inspected for damage or excessive wear.

Signs Your Garage Motor Belt Needs Replacement

• Garage motor runs but the door does not move
• Drive belt is broken or separated
• Visible cracks or damaged belt teeth
• Belt repeatedly slips from the drive pulley
• Garage door movement becomes uneven
• Excessive belt vibration
• Belt is stretched and cannot be correctly tensioned
• Grinding or jumping during garage door operation

Garage Door Belt Compatibility

Garage door opener belts are not universally interchangeable. Two belts can look similar while having different width, pitch, tooth profile, length or connection arrangements.

Always compare the existing garage door opener belt and rail system before purchasing a replacement.

SOMFY Garage Door Opener Belt

This replacement drive belt may be suitable for selected SOMFY garage door opener systems when the original belt dimensions and profile match.

Confirm the SOMFY garage motor model and existing belt specifications before ordering.

Marantec Garage Door Opener Belt

The belt may be used with selected Marantec garage door opener systems where the rail and original drive belt specifications are compatible.

Check the Marantec operator model, rail type and original belt before replacement.

BFT Garage Door Opener Belt

The replacement belt may be suitable for selected BFT garage door opener rail systems when the belt profile and dimensions match the original drive belt.

Beninca Garage Door Opener Belt

This garage door drive belt can be considered for selected Beninca garage door opener systems after confirming the original belt dimensions and rail configuration.

LiftMaster Garage Door Opener Belt

The replacement drive belt may also be suitable for selected LiftMaster garage door opener systems where the belt dimensions, tooth profile and connection system are compatible.

Garage Door Belt Tension

Correct belt tension is important for reliable garage door opener operation.

A belt that is too loose may slip or jump during operation, while excessive tension can place unnecessary load on the motor, pulley, rail and trolley mechanism.

Check Belt Size Before Ordering

Before ordering a replacement garage door opener belt, check the following dimensions:

• Total belt length
• Belt width
• Tooth pitch
• Belt height
• Tooth profile
• Rail length
• Belt connector type
• Garage door opener model

For this product, the listed dimensions are 8 metres length × 10 mm width × 8 mm pitch × 6 mm height.

Professional Garage Door Belt Replacement

Professional replacement is recommended to ensure the belt is correctly routed through the garage door opener rail, properly connected to the trolley and adjusted to the correct tension.

After replacement, the garage door opener should be tested through complete opening and closing cycles and the travel limits and safety functions should be checked.

Garage Door Opener Drive Belt Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies garage door opener drive belts in UAE for compatible automatic garage door motors and rail systems.

Supply, belt replacement, garage motor repair and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
