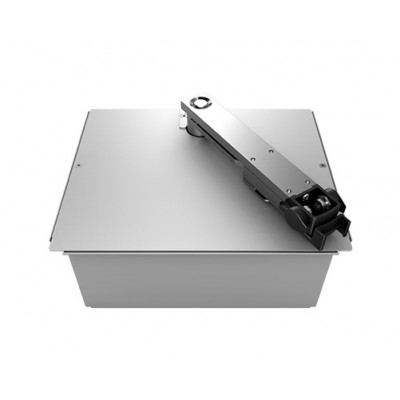

FORESEE F-730 DC Underground Swing Gate Opener in UAE

• FORESEE F-730 DC underground machine [F-730]
• Stainless steel chassis is available, which is more sturdy and durable.
• Mechanical travel limit stop structure, precise positioning.
• Comes with soft start and soft stop.
• It has the function of rebounding when encountering obstacles.
• Automatic door closing and single door operation can be set.
• Optional electric locks, warning lights, infrared
• and other safety equipment can greatly improve the safety system.

Technical Parameters:

• Voltage : AC220-240V
• frequency : 50-60Hz
• Motor voltage : DC24V
• Rated torque : 72.4Nm
• Maximum Torque : 200Nm
• Rated Power : 100W
• Door running 90° time : 13-15s
• Door opening angle : 0°-120°
• Ambient temperature (°C) : -20~+50
• Maximum door weight (kg) : 500
• Maximum door width (m) : 2
