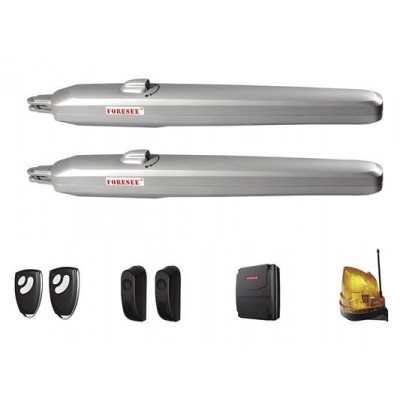

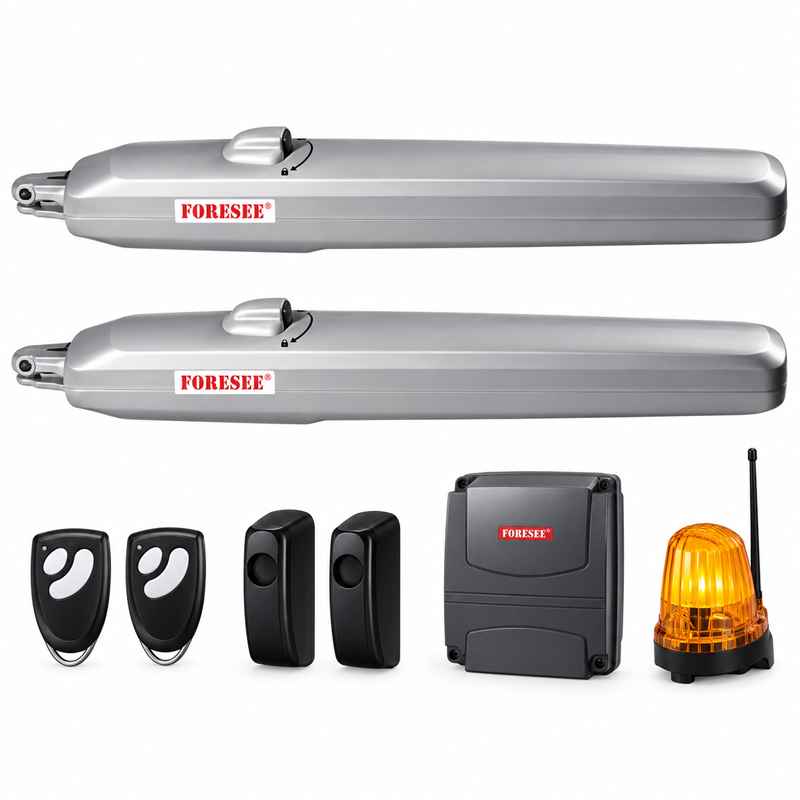

FORESEE F-600 600 KG Swing Gate Motor UAE

The FORESEE F-600 600 KG Swing Gate Motor is a powerful 24V DC automatic swing gate opener designed for residential and commercial swing gates weighing up to 600 KG. With support for gate leaves up to 2.5 metres wide, the F-600 provides smooth, quiet and reliable automatic gate operation.

The FORESEE F-600 features a modern transmission gearbox, built-in soft start and soft stop, obstacle resistance detection and automatic rebound. Its 24V DC motor provides controlled gate movement while supporting optional safety accessories including photocell sensors, flashing warning lights and electric locks.

With a maximum opening angle of 120° and maximum stroke of 350 mm, the F-600 is suitable for villas, residential properties, commercial entrances and other compatible automatic swing gate applications.

Key Features

• FORESEE F-600 automatic swing gate motor
• 24V DC motor technology
• Suitable for gates up to 600 KG
• Maximum gate leaf width up to 2.5 metres
• Maximum opening angle up to 120°
• Maximum stroke 350 mm
• 100W input power
• New transmission gearbox design
• Smooth and quiet gate operation
• Built-in soft start and soft stop
• Obstacle resistance detection
• Automatic rebound safety function
• Automatic closing function
• Single-leaf operation can be configured
• Open / Stop / Close single-button operation
• Optional photocell safety sensors
• Optional flashing warning light
• Optional electric gate lock
• Manual operation during power failure
• Backup power supply support

Technical Specifications

FORESEE F-600 24V DC Automatic Swing Gate Opener

The FORESEE F-600 is a 24V DC linear swing gate operator designed to provide smooth and controlled automation for compatible single-leaf and double-leaf swing gates.

Its combination of a modern transmission gearbox, soft movement and electronic safety functions makes it suitable for residential villas, private properties and commercial entrances.

600 KG Swing Gate Capacity

The FORESEE F-600 supports compatible swing gates weighing up to 600 KG. The maximum supported gate leaf width is approximately 2.5 metres.

Motor selection should consider both gate weight and gate length together with hinge condition, wind loading, gate design and frequency of operation.

24V DC Swing Gate Motor

The F-600 uses a 24V DC motor powered through its compatible control system from a 230V AC mains supply.

The low-voltage DC motor provides controlled gate movement and allows advanced functions such as soft start, soft stop and backup power support.

Soft Start & Soft Stop

Built-in soft start and soft stop provide smoother acceleration and deceleration during automatic gate movement.

This reduces sudden mechanical shock at the beginning and end of each operating cycle and helps provide quieter, smoother gate movement.

Maximum 120° Opening Angle

The FORESEE F-600 supports a maximum opening angle of up to 120 degrees, depending on the gate geometry, mounting brackets and installation dimensions.

350 mm Maximum Stroke

The linear actuator provides a maximum stroke of approximately 350 mm. Correct bracket positioning and installation geometry are important for achieving the required opening angle and smooth gate movement.

Obstacle Detection & Auto-Rebound

The F-600 supports resistance detection during gate movement. When abnormal resistance is detected, the control system can activate a rebound function according to its programmed safety settings.

Compatible photocell sensors should also be installed where required to provide additional safety protection across the entrance.

Automatic Closing Function

The FORESEE F-600 control system supports automatic gate closing. When enabled, the gate can automatically close after a programmed waiting period.

Appropriate safety photocells should be installed and correctly programmed when automatic closing is used.

Single-Leaf & Double-Leaf Gate Operation

The FORESEE F-600 can be configured for compatible swing gate installations requiring single-leaf or double-leaf operation.

Single-leaf opening can also be useful for pedestrian access where the control system and installation are configured accordingly.

Open / Stop / Close Operation

The gate automation system supports simple single-button operation for Open, Stop and Close commands, providing convenient control using compatible remote controls or other command devices.

Optional Photocell Safety Sensors

Infrared photocell safety sensors can be connected to the FORESEE F-600 control system to detect vehicles, pedestrians and other obstacles across the automatic gate entrance.

Optional Electric Gate Lock

A compatible electric lock can be added where additional gate locking is required. This can be particularly useful for larger swing gates or installations where improved closed-position security is required.

Backup Battery Support

The 24V DC automation system supports an optional backup power solution for emergency operation during mains power failure.

Manual Release During Power Failure

Manual operation is available for emergency situations. If electrical power is unavailable, the operator can be manually released so the gate can be opened or closed by hand.

Residential & Commercial Applications

• Villa swing gates
• Residential driveway gates
• Private property entrances
• Residential compounds
• Apartment entrances
• Commercial property gates
• Office entrances
• Parking entrances
• Automatic vehicle access gates

Professional FORESEE F-600 Installation

Professional installation is recommended for the FORESEE F-600 swing gate motor. Gate hinges, leaf movement, mounting brackets, opening geometry, electrical wiring, photocells and controller settings should all be correctly installed and adjusted.

Before automation, each gate leaf should move smoothly by hand without excessive resistance or damaged hinges.

FORESEE F-600 Swing Gate Motor Supplier in UAE

AAM Automatic Doors & Gate Barriers supplies FORESEE F-600 swing gate motors in UAE for residential and commercial automatic swing gate applications.

Supply, professional installation, replacement, maintenance and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
